DB Drive X-Series Mono Class D Amplifier | 600W RMS @ 1Ω / 300W RMS @ 2Ω | Compact High-Current Power

Unleash deep, powerful bass with the DB Drive X-Series X-A1200 Mono Block Class D Amplifier. Engineered for maximum efficiency and control, this compact powerhouse delivers a robust 600W RMS at 1Ω, providing the high-current output needed to drive demanding subwoofers with precision and minimal strain on your vehicle's electrical system.

Core Features & Performance Benefits:

• High-Current 1-Ohm Stable Power: Delivers 600W RMS at 1Ω (300W at 2Ω), making it ideal for powering high-performance subwoofers wired for maximum efficiency and ground-shaking output.

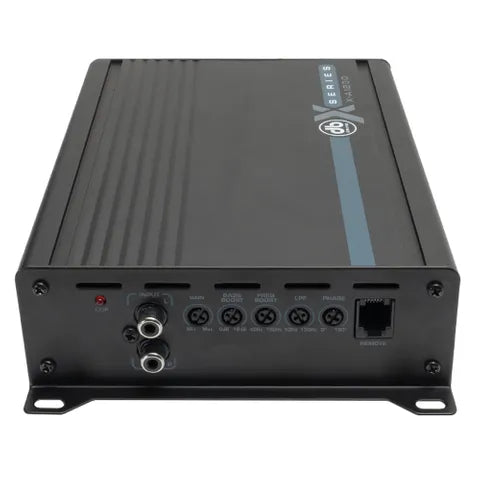

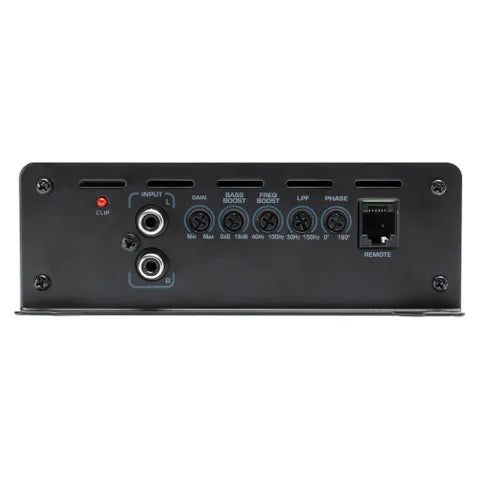

• Complete User Control: Includes a wired remote bass level control for on-the-fly adjustments, plus variable low-pass crossover (50Hz–150Hz), phase control (0°–180°), and a powerful 0-18dB bass boost to tailor the low-end impact to your music.

• Efficient, Clean Amplification: Utilizes a high-efficiency Class D circuit and a 4-layer PCB design for superior signal integrity, a high 90dB signal-to-noise ratio, and minimal current draw for reliable, cool-running performance.

• Compact, Installation-Friendly Design: Its space-saving footprint allows for flexible placement, making it easy to integrate into virtually any vehicle without sacrificing power or features.

Technical Specifications:

• Rated Power (RMS):

  • 600W x 1 @ 1 Ohm

  • 300W x 1 @ 2 Ohms

  • 150W x 1 @ 4 Ohms

• Dynamic Power: 1200 Watts

• Frequency Response: 20 Hz – 150 Hz

• Crossover: Variable Low-Pass Filter (50Hz – 150Hz)

• Bass Boost: Variable, 0 – 18 dB @ 40-100Hz

• Phase Control: 0° – 180° adjustable

• Input Sensitivity: 0.2V – 6V
