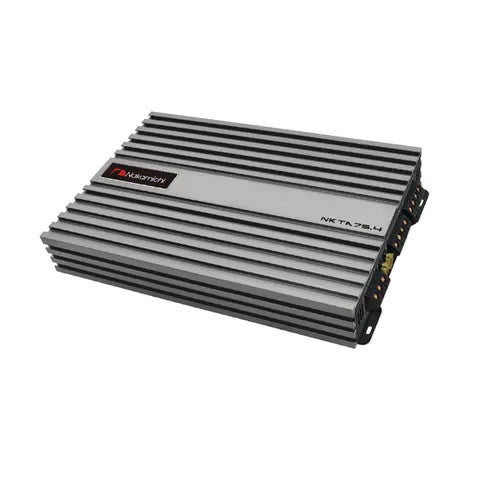

Nakamichi 4-Channel Amplifier | 100W x 4 @ 2Ω / 75W x 4 @ 4Ω | High-Power Full-Range Class D Amp

Power your vehicle's complete speaker system with clean, robust amplification using the Nakamichi NKTA75.4 4-Channel Amplifier. This Class A/B design delivers a solid 100W RMS per channel at 2Ω, offering the superior sonic fidelity and low distortion associated with Class A/B technology, perfect for driving component or coaxial speakers with dynamic, high-fidelity sound.

Core Features & Performance Benefits:

• High-Fidelity Class A/B Power: Delivers 100W RMS x 4 @ 2Ω (75W RMS x 4 @ 4Ω) using traditional Class A/B topology, renowned for its excellent sound quality, linearity, and low distortion (≤0.1% THD).

• Versatile & Bridgeable Design: Can be bridged to produce 150W x 2 @ 4Ω, providing flexible system configurations for powering a high-output front stage or combining front/rear channels.

• Wide Frequency Response & High Signal Integrity: Features a broad 20Hz – 20kHz frequency response and a high ≥90dB signal-to-noise ratio, ensuring accurate reproduction of the entire audio spectrum with minimal background noise.

• Protected & Compact Chassis: Includes comprehensive protection circuitry and is housed in a compact chassis (318x212x51mm), allowing for flexible installation in various vehicle locations.

Technical Specifications:

• Rated Power (RMS):

  • @ 2Ω: 100W x 4

  • @ 4Ω: 75W x 4

  • Bridged @ 4Ω: 150W x 2

• Amplifier Class: Class A/B

• THD: ≤ 0.1%

• Signal-to-Noise Ratio: ≥ 90dB

• Frequency Response: 20 Hz – 20,000 Hz

• Fuse Rating: 20A x 2

• Dimensions (L x W x H): 318mm x 212mm x 51mm
