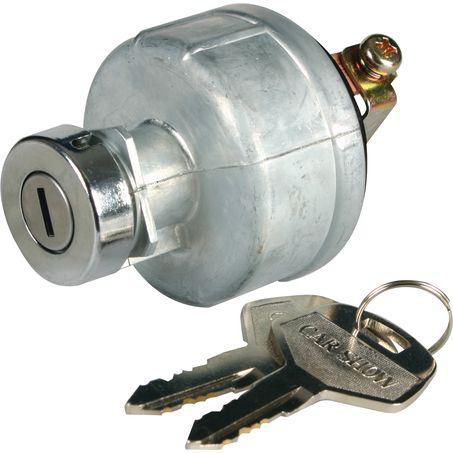

• OEX Ignition Switch Glow - Off - Acc/Ign - Start (Contacts Rated 30A @ 12V
1 1

ACX3562

Ignition Switch Glow - Off - Acc/Ign - Start (Contacts Rated 30A @ 12V ACX3562

Ignition Switch Glow - Off - Acc/Ign - Start (Contacts Rated 30A @ 12V ACX3562

$64.57
$64.57 $70.00
Tax included. Shipping calculated at checkout.
Expected delivery date:
20 May Usually delivered in 2-3 days.

Description


Part No. ACX3562
Type IGNITION SWITCH
Brand OEX
Unit of Measure EACH
Description OEX Ignition Switch Glow - Off - Acc/Ign - Start (Contacts Rated 30A @ 12V)
Warranty One Year
Number of Terminals 6
Power Rating (Amp) 30
Switch Action Glow - Off - Acc/Ign - Start
Voltage 12
Lamp Colour/s Not Applicable
Mount Diameter 25mm
Mount Length 2mm
Number of Poles 2
Number of Positions 4
Switch Type Ignition
Weight .22kg
Switch Illumination Non Illuminated
Features

• B1 and B2 are linked (with linking connection supplied) and are to be supplied with a 'battery feed'
• G1 and G2 are linked (with linking connection supplied) and will supply power to the 'glow' circuit when the switch is activated.
• M is the 'ignition' output from the switch
• S is the 'start wire output' from the switch
