SKU:ACX3674BL
On/Off Push Button Switch Momentary LED Green ACX3674BL
On/Off Push Button Switch Momentary LED Green ACX3674BL
Couldn't load pickup availability
Description
Description
Part No. ACX3674BL
Type SWITCH
Brand OEX
Unit of Measure EACH
Description OEX On/Off Push Button Switch Momentary LED Green
Warranty One Year
Number of Terminals 3
Power Rating (Amp) 50
Switch Action Off - Mom On - SPST
Voltage 12
Lamp Colour/s Green
Mount Diameter 22mm
Mount Length 12mm

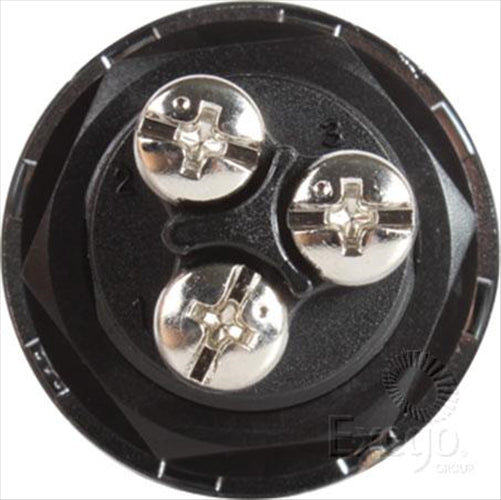

Note Terminal connections: Terminal 1 = Ignition feed, Terminal 2 = Start feed to Solenoid, Terminal 3 = Earth connection for Active illumination of the button
Number of Poles 1
Number of Positions 2
Switch Type Push
Weight .04kg
Switch Illumination Illuminated
Features

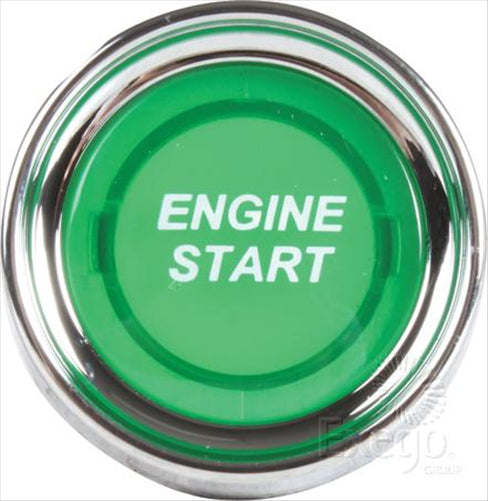

• Push Button Engine Start Switch - Green
• Voltage: 12V
• Mounting Stem: Dia. 22mm
• AMPS 50A@ 12V
• Function: MOM ON-OFF
• 3 x Blade Terminals
• Illumination: Green
• Silver Contacts
• Note: For 24V Applications, use
• Part No. ACX3912 (Resistor)
