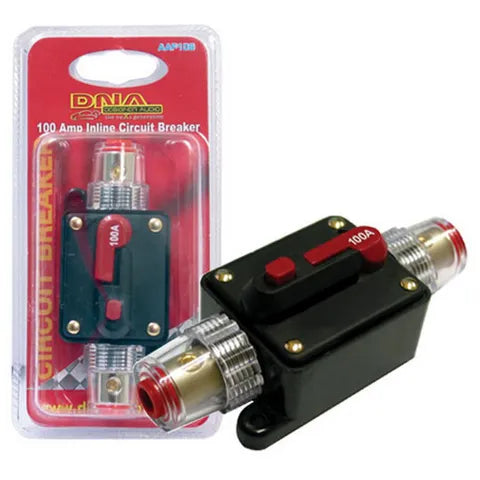

100 Amp Inline Circuit Breaker | Resettable ANL/Fuse Holder Replacement

This 100-amp inline circuit breaker is a professional-grade, resettable protection device designed to safeguard your vehicle's or equipment's electrical system. It provides a superior, reusable alternative to traditional ANL or AGU fuses, automatically cutting power in the event of a short circuit or overload and allowing for a simple reset once the fault is cleared. The premium construction ensures maximum conductivity and durability.

Key Features & Benefits:

• Resettable Protection: Trips automatically at approximately 100 amps to protect wiring and components from damage due to overloads or shorts. Can be reset with the push of a button after the fault is corrected, eliminating the need for fuse replacements.

• Premium Low-Resistance Construction: Features a nickel-plated housing via a state-of-the-art plating process. This ensures maximum current transfer with minimal voltage drop and heat buildup, maintaining system efficiency.

• Secure, High-Current Connections: Equipped with gold-plated Allen key screw terminals that provide excellent conductivity and a strong, vibration-resistant connection for 4-gauge or 8-gauge power cable.

• Sealed & Protected Terminals: Includes red rubber insulating inserts on both ends to protect the terminal connections from moisture, dust, and accidental short circuits after installation.

• Ideal for High-Power Applications: Perfect for use as the main circuit protection for amplifiers, winches, inverters, or any auxiliary high-current circuit in automotive, marine, and off-road applications.

Technical Specifications:

• Rating: 100 Amps

• Terminals: Gold-Plated Allen Key Screw

• Wire Gauge: Accepts 4 AWG or 8 AWG Cable

• Housing: Nickel-Plated

• Insulation: Red Rubber Terminal Inserts

• Function: Manual Reset After Trip

Ideal For:

• Main power protection in car audio amplifier installations.

• Protecting high-draw accessories like winches, light bars, or inverters.

• Marine and RV electrical systems.

• Any application requiring reliable, resettable over-current protection for 4-gauge or 8-gauge circuits.
