AVS24VPIR

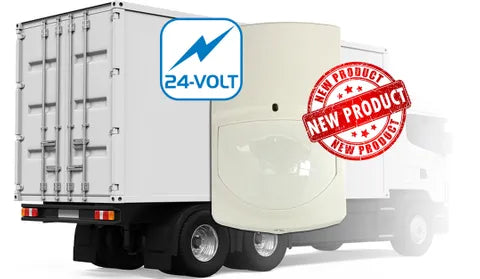

24 Volt PIR Motion Sensor | For Heavy-Duty & Commercial Vehicle Interiors

24 Volt PIR Motion Sensor | For Heavy-Duty & Commercial Vehicle Interiors

$109.95
$109.95
Tax included. Shipping calculated at checkout.
Expected delivery date:
23 May Usually delivered in 2-3 days.

Description

The AVS AVS24PIR is a heavy-duty, 24-volt passive infrared (PIR) motion sensor designed specifically for securing the interiors of commercial vehicles such as trucks, vans, and other 24V equipment. It is engineered to detect the presence of an intruder within its field of view and is fully compatible with the 24-volt AVS S-Series range of alarm systems.

Key Specifications:

  • Model: AVS24PIR

  • Operating Voltage: 24 Volts DC (for heavy-duty vehicle electrical systems)

  • Detection Type: Passive Infrared (PIR)

  • Sensor: Stable quad-element PIR for reliable detection

  • Output: Normally Open (N/O) contacts for easy alarm system integration

  • Compatibility: Designed for use with the 24-volt AVS S-Series alarm range (e.g., AVS24VS5)

  • Dimensions: 92mm (H) x 59mm (W) x 37mm (D)

  • Primary Application: Interior protection for the cargo areas of vans, trucks, and commercial vehicles.

Core Function & Benefits:

  • 24-Volt Vehicle Compatibility: Specifically built for the electrical systems of trucks, buses, construction machinery, and other commercial 24V assets.

  • Intruder Detection: Detects infrared energy emitted by a moving person within its detection pattern, triggering the connected alarm system.

  • Reliable Performance: The stable quad-element sensor design helps minimize false alarms from environmental changes while maintaining high sensitivity.

  • Easy Integration: The simple Normally Open (N/O) contact output wires directly into the zone input of a compatible 24V AVS alarm system.

Installation & Use:

  • Mounting Location: Typically installed inside the vehicle, facing the area to be protected (e.g., mounted on a side wall or ceiling pointing towards the cargo bay).

  • Professional Installation: For optimal performance and to ensure it is correctly aligned and configured with the alarm system, installation by a qualified auto-electrician or security technician is recommended.

  • Detection Pattern: Consult the sensor's manual for its specific field-of-view (FOV) to ensure it covers the desired area without pointing directly at heat sources or moving air vents.
