AVS24VRELAY

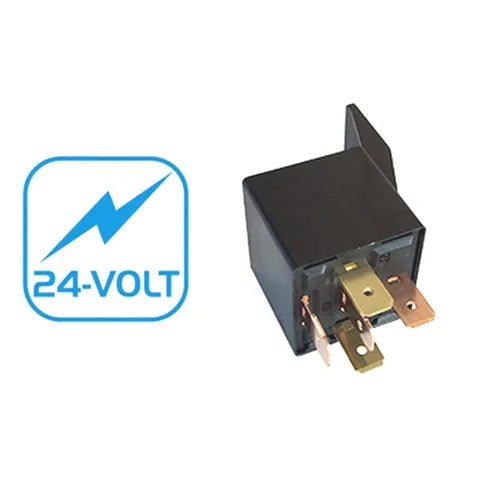

24V DC 5-Pin Relay | 30A/40A SPDT Heavy-Duty Automotive Relay

24V DC 5-Pin Relay | 30A/40A SPDT Heavy-Duty Automotive Relay

$14.00
$14.00
Tax included. Shipping calculated at checkout.
Expected delivery date:
21 Apr Usually delivered in 2-3 days.

Description

The AVS24VRELAY is a robust and reliable 24-volt DC Single Pole Double Throw (SPDT) relay, engineered to act as a high-current remote switch for demanding automotive, industrial, and machinery applications. Capable of handling up to 30A on a normally closed circuit and 40A on a normally open circuit, this relay provides a critical link between a low-power control signal and a high-power electrical load, ensuring safe and efficient operation.

Key Specifications:

  • Model: AVS24VRELAY

  • Operating Voltage: 24V DC (Coil)

  • Current Rating: 30A (NC) / 40A (NO)

  • Terminals: 5-Pin (SPDT configuration)

  • Terminal Type: Standard blade/spade terminals

  • Mounting: Tab or bracket mounting

  • Status Indicator: Clear cover with visual activation indicator

Core Features & Benefits:

  • High-Current Switching: Safely controls high-amperage circuits (up to 40A) such as lights, motors, compressors, and heating elements with a low-current signal.

  • SPDT Versatility: The Single Pole Double Throw (5-pin) design offers two output paths (Normally Open and Normally Closed), providing flexible wiring options for different control logic.

  • Durable Construction: Built with a sealed or semi-sealed housing to resist dust, moisture, and vibration, ensuring reliable performance in harsh environments.

  • Clear Visual Feedback: The transparent top cover allows for quick visual confirmation of relay engagement via the moving armature.

  • Easy Integration: Features standard automotive-style blade terminals for simple, tool-free connection and is a direct replacement for many OEM relays.

Common Applications:

  • Trucks, Buses & Heavy Equipment: Controlling auxiliary lighting, air compressors, hydraulic systems, and engine management accessories.

  • Industrial Machinery: Automating motor starts, solenoid valves, and high-power actuators in control panels.

  • Marine & RV Systems: Managing bilge pumps, windlasses, inverter circuits, and 24V appliance loads.

  • Custom Automotive Upgrades: Installing high-power lighting bars, winches, audio systems, and fuel pumps.
