24V to 12V Voltage Reducer Converter – 20 Amp Peak / 15 Amp Continuous Power Supply

Designed for professional automotive and marine applications, the DC-200T is a high-efficiency switching-mode voltage converter that reliably steps down 24V systems to a stable 13.8V output—perfect for powering sensitive 12V electronics and communication equipment with precision voltage requirements.

Technical Specifications:

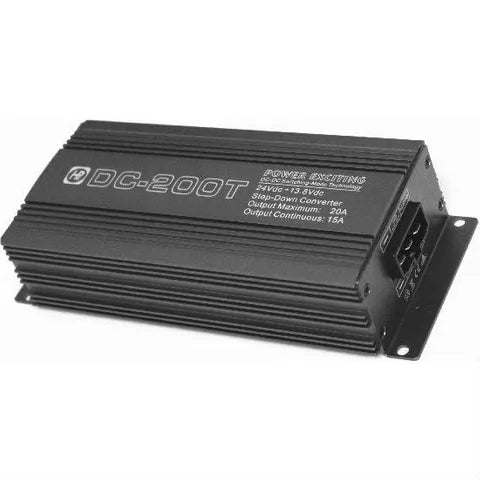

• Model: DC-200T

• Input Voltage: 24VDC nominal (20–30VDC operating range)

• Output Voltage: 13.8VDC fixed (±0.1VDC regulation)

• Maximum Output Current: 20A

• Maximum Output Power: 276W

• Efficiency: >90% typical (switching-mode design)

• Protections: Over-Voltage (OVP), Over-Current (OCP), Short-Circuit

• Control Interface: 6-pin input/output connector

• Special Feature: ACC (Accessory) function for remote/ignition control

• Cooling: Passive heatsink design

Key Features:

• Precision Voltage Regulation: Maintains exact 13.8V±0.1V output for sensitive 12V electronics

• Robust Protection Suite: Built-in OVP, OCP, and short-circuit protection safeguard connected equipment

• ACC Functionality: Allows remote on/off control via ignition or accessory switch

• Wide Input Range: Operates from 20–30VDC, accommodating system voltage fluctuations

• High-Current Capacity: Delivers up to 20A continuous (276W) for demanding applications

• Professional Connectivity: 6-pin connector for secure, reliable power connections
