Alpine CDE-100EUB Car Stereo Wiring Harness | 16-Pin Square Grey Plug Replacement

This is a dedicated wiring harness designed specifically for Alpine CDE-100EUB series head units and compatible Alpine models featuring the 16-pin square grey plug with side tabs. It converts the proprietary Alpine connector into a standard male ISO connector, enabling easy integration into your vehicle's existing aftermarket wiring setup or allowing for direct vehicle connection with a matching female ISO adapter.

Key Features & Specifications:

• Head Unit Compatibility: Specifically engineered for Alpine CDE-100EUB stereos and other Alpine models utilizing the same 16-pin square grey connector with side locking tabs.

• Connector Types:

  • Head Unit Side: Alpine-specific 16-pin square grey female plug with side tabs.

  • Vehicle Side: 1 x Standard male ISO 10487 connector.

• Core Benefit: Allows you to bypass the need for the vehicle-specific Alpine wiring harness by providing a universal ISO interface. This makes it perfect for replacing an existing Alpine unit or for integrating into a custom or universal vehicle wiring setup.

• Plug-and-Play Simplicity: Offers a direct, plug-in connection between your Alpine stereo and the industry-standard ISO interface, ensuring correct pin alignment for power, speakers, and accessories.

• Secure Connection: The side-tab design ensures a snug, secure fit with the head unit, preventing accidental disconnection.

What's in the Box:

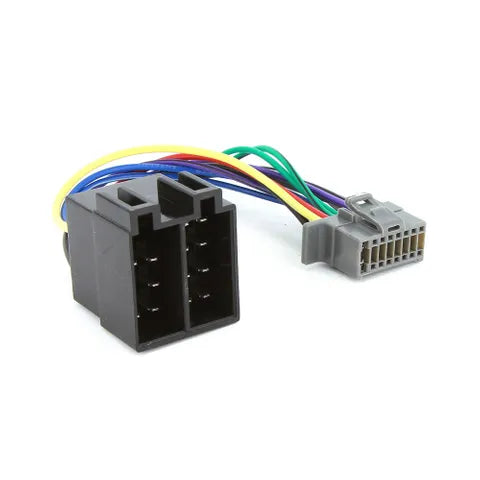

• 1 x Wiring harness adapter (Alpine 16-pin grey plug to male ISO connector).

Common Use Cases & Notes:

• Replacement Installation: Ideal for directly replacing an existing Alpine CDE-100EUB unit with a new one, using the vehicle's already-installed Alpine harness.

• Vehicle Integration: To connect this Alpine head unit to a car's factory wiring, you will typically need two components:

  1. This harness (Alpine to Male ISO), and

  2. A vehicle-specific harness (Female ISO to Car Factory Plugs).

• Verify Model: Ensure your Alpine head unit has the exact 16-pin square grey plug with side tabs to guarantee compatibility.
