Alternator 12V 105A Delco Style DXA547

Alternator 12V 105A Delco Style – DXA547

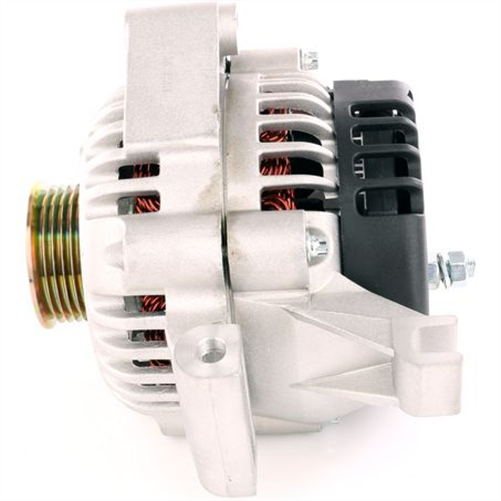

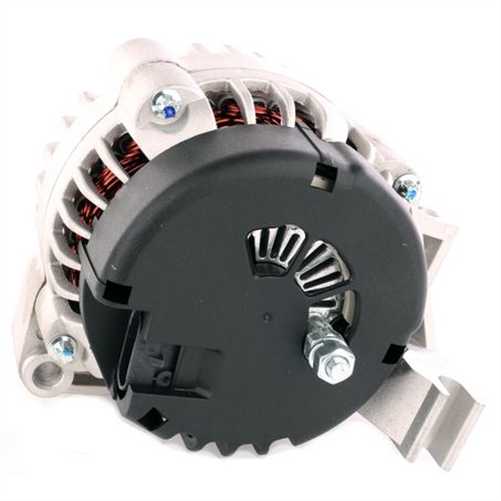

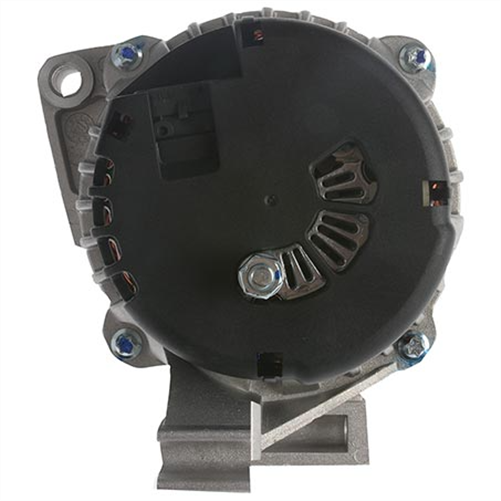

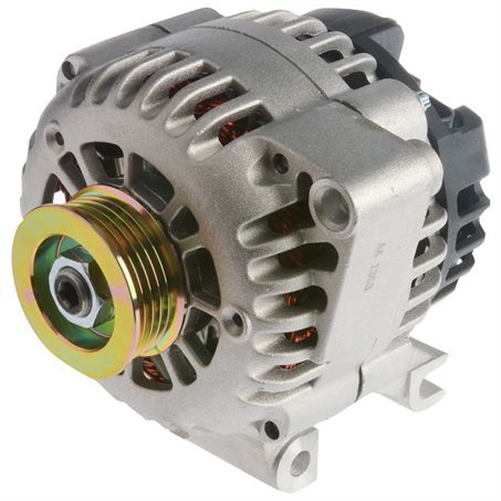

The OEX Alternator DXA547 is a reliable 12V, 105-amp alternator designed as a direct replacement for Delco CS130D-style charging systems. Engineered for stable and consistent electrical output, this unit delivers dependable battery charging and strong performance for vehicles with moderate to high electrical demand.

Built using high-quality components and manufactured to OEM-equivalent standards, the DXA547 provides long service life, excellent durability, and reliable operation across passenger, commercial, and light industrial applications.

Key Features

 105A high output – ideal for vehicles with increased electrical demand
 Delco CS130D style design – direct OE replacement fitment
 Internal voltage regulator for stable charging performance
 Pad mount design for accurate OE-style installation
 Heavy-duty construction for long service life
 Brand new unit – not remanufactured
 3-year passenger / 1-year commercial warranty

Specifications

 Voltage: 12V
 Output: 105 Amp
 Regulator Type: Internal
 Suits Unit Make: Delco Style (CS130D series)
 Mount Type: Pad Mount
 Pulley Section: 5 Groove
 Pulley Diameter: ~61mm
 Adjusting Hole: 10mm
 Pivot Hole: 10mm
 Inside Mounting Legs: 75mm
 Mount Leg Thickness: 43mm

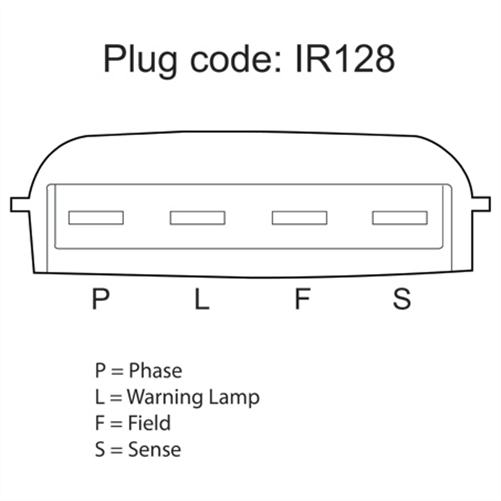

 Pin Code: IR128
 Unit Weight: 5.78kg
 Unit Type: New

Vehicle Applications

Commonly used in:

 General Motors (GM) vehicles with CS130D Delco alternator systems
 Light commercial vehicles and utility platforms
 4WD and off-road applications
 Industrial and agricultural equipment using Delco-style alternators

Always confirm compatibility using part number DXA547 and by matching mounting configuration, pulley type, and electrical connections before purchase.

Performance & Reliability

The DXA547 alternator is engineered to deliver stable voltage output and reliable charging performance in 12V systems. It ensures consistent operation of essential vehicle systems such as ignition, lighting, air conditioning, and onboard electronics, even under increased electrical load conditions.

Why Choose OEX?

• Trusted aftermarket brand across Australia & New Zealand
• OE-style direct replacement for accurate fitment
• Built for durability in demanding environments
• Backed by strong warranty support and proven reliability
