Part No. DXA588
Type ALTERNATOR
Brand OEX
Unit of Measure EACH

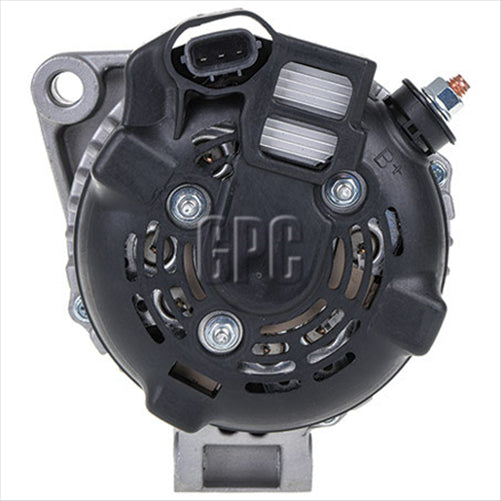

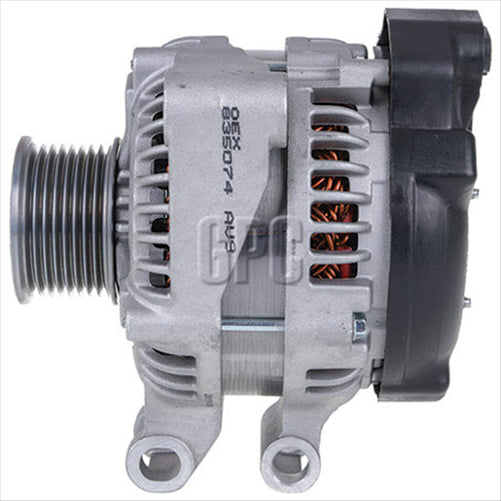

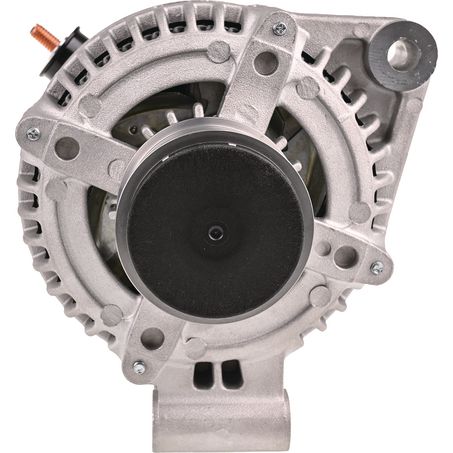

Description ALT 12V 150A DENSO STYLE
Warranty 3yr Passenger 1yr Commercial
Adjusting Hole Diameter 11
Inside Mounting Legs 47mm
Mount Leg Thickness 50mm

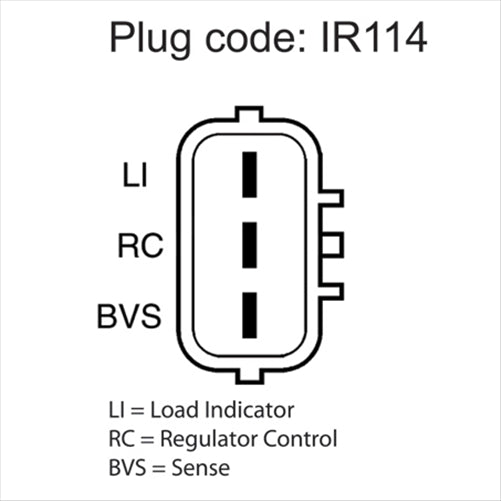

Pin Code IR114
Pivot Hole Diameter 13/13
Power Rating (Amp) 150
Pulley Outside Diameter 53mm
Pulley Section 8 Groove
Regulator Type Field Control Unit
Shaft Diameter 17mm
Suits Unit Make Denso
Voltage 12
Note Unit fitted with clutch style pulley
Weight 6.1kg
Alternator Mount Pad
Mount Cnt to Cnt 140mm
New / Reman. New
Features
• The OEX brand is sourced from market leading Original Equipment Manufacturers and Aftermarket Suppliers
• OEX products are sourced from factories that are ISO9001 certified to support stringent engineering, testing and quality control procedures
• When you fit an OEX product you have the peace of mind in knowing that it is backed by a comprehensive nationwide warranty


What it Fits

LAND ROVER DISCOVERY SALLAAA1 SERIES 3 TDV6 2.7L AJV6D 276DT DOHC-PB 24v Turbo Diesel Direct Inj. V6 140kW 6sp Auto 4dr Wagon 4WD [04/05 - 12/09]
LAND ROVER DISCOVERY SALLAAA1 SERIES 3 TDV6 2.7L AJV6D 276DT DOHC-PB 24v Turbo Diesel Direct Inj. V6 140kW 6sp Man 4dr Wagon 4WD [04/05 - 12/07]
LAND ROVER DISCOVERY SALLAAA1 SERIES 4 TDV6 2.7L AJV6D 276DT DOHC-PB 24v Turbo Diesel Direct Inj. V6 140kW 6sp Auto 4dr Wagon 4WD [09/09 - 11/12]
LAND ROVER DISCOVERY SALLAAA5 SERIES 3 4.4L 448PN [M62] DOHC-PB 32v MPFI V8 220kW 6sp Auto 4dr Wagon 4WD [11/04 - 10/08]
LAND ROVER DISCOVERY SALLAJA5 SERIES 3 4.4L 448PN [M62] DOHC-PB 32v MPFI V8 225kW 6sp Auto 4dr Wagon 4WD [05/05 - 12/09]
LAND ROVER RANGE ROVER SALLMAM3 L322 V8SC 4.2L 428PS DOHC-PB 32v Supercharged MPFI V8 291kW 6sp Auto 4dr Wagon 4WD [08/05 - 08/09]
LAND ROVER RANGE ROVER SALLMAM5 L322 V8 4.4L 448PN [M62] DOHC-PB 32v MPFI V8 225kW 6sp Auto 4dr Wagon 4WD [07/05 - 12/08]
LAND ROVER RANGE ROVER SALLMAMA L322 V8 4.4L 448PN [M62] DOHC-PB 32v MPFI V8 210kW 5sp Auto 4dr Wagon 4WD [08/02 - 12/07]
LAND ROVER RANGE ROVER SALLMAMH L322 TDV8 4.4L 448DT DOHC-PB 32v Turbo Diesel Direct Inj. V8 230kW 8sp Auto 4dr Wagon 4WD [10/11 - 12/12]
LAND ROVER RANGE ROVER SALLMAMJ L322 TDV8 4.4L 448DT DOHC-PB 32v Turbo Diesel Direct Inj. V8 230kW 8sp Auto 4dr Wagon 4WD [01/10 - 12/12]
LAND ROVER RANGE ROVER SPORT SALLSAA1 L320 TDV6 2.7L AJV6D 276DT DOHC-PB 24v Turbo Diesel Direct Inj. V6 140kW 6sp Auto 4dr Wagon 4WD [08/05 - 09/09]
LAND ROVER RANGE ROVER SPORT SALLSAA3 L320 V8SC 4.2L 428PS DOHC-PB 32v Supercharged MPFI V8 287kW 6sp Auto 4dr Wagon 4WD [08/05 - 08/09]
LAND ROVER RANGE ROVER SPORT SALLSAA5 L320 4.4L 448PN [M62] DOHC-PB 32v MPFI V8 225kW 6sp Auto 4dr Wagon 4WD [01/05 - 09/09]
LAND ROVER RANGE ROVER SPORT SALLSJA3 L320 4.2L 428PS DOHC-PB 32v Supercharged MPFI V8 287kW 6sp Auto 4dr Wagon 4WD [11/05 - 12/09]
Denso Alternator 104210-3690 12v 150amps
