SKU:DXA560

ALTERNATOR 12V 80A SUITS DENSO DXA560

ALTERNATOR 12V 80A SUITS DENSO DXA560

Regular price $451.00
Sale price $451.00 Regular price
Tax included. Shipping calculated at checkout.
Expected delivery date:
07 Nov Usually delivered in 2-3 days.

Description


Part No. DXA560
Type ALTERNATOR
Brand OEX
Unit of Measure EACH
Description ALT 12V 80A DENSO STYLE
Warranty 3yr Passenger 1yr Commercial
Adjusting Hole Diameter M8
Mount Leg Thickness 58mm

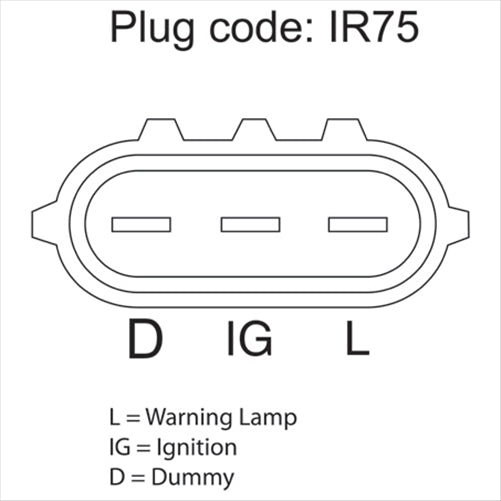

Pin Code IR75
Pivot Hole Diameter 10
Power Rating (Amp) 80
Pulley Outside Diameter 60mm
Pulley Section 4 Groove
Regulator Type Internal
Shaft Diameter 17mm
Suits Unit Make Denso
Voltage 12
Note Adaptor to suit HXK-17, HXK-22, HXK-30
Weight 5.46kg
Alternator Mount Single Leg
Mount Cnt to Cnt 164mm
New / Reman. New
OEM Number 102211-2430
Features
• The OEX brand is sourced from market leading Original Equipment Manufacturers and Aftermarket Suppliers
• OEX products are sourced from factories that are ISO9001 certified to support stringent engineering, testing and quality control procedures
• When you fit an OEX product you have the peace of mind in knowing that it is backed by a comprehensive nationwide warranty


What it Fits

CHEVROLET CRUZE HR51S 1.3L M13A DOHC 16v MPFI 4cyl 60kW 4sp Auto 5dr Hatchback 4WD [01/01 - 12/08]
SUZUKI AERIO RD51S 1.8L M18A DOHC 16v MPFI 4cyl 92kW 5sp Man 4dr Wagon FWD [01/03 - 05/06]
SUZUKI CARRY 1.3L G13BB SOHC 16v MPFI 4cyl 58kW 5sp Man 2dr Tray 4WD [09/00 - 08/05]
SUZUKI CARRY DA32V DA32V GA413 1.3L G13BB SOHC 16v MPFI 4cyl 58kW 5sp Man 5dr Van RWD [05/99 - 07/05]
SUZUKI CARRY DA32V DA32V GA413 1.3L G13BB SOHC 16v MPFI 4cyl 59kW 4sp Auto Van RWD [01/99 - 12/05]
SUZUKI ESCUDO TA11W 2.0L H20A DOHC-PB 24v MPFI V6 100kW 4sp Auto 2dr Wagon RWD [12/94 - 10/97]
SUZUKI ESCUDO TA11W 2.0L H20A DOHC-PB 24v MPFI V6 100kW 5sp Man 2dr Wagon RWD [12/94 - 10/97]
SUZUKI ESCUDO TD11W 2.0L H20A DOHC-PB 24v MPFI V6 100kW 4sp Auto 4dr Wagon 4WD [12/94 - 10/97]
SUZUKI ESCUDO TD11W 2.0L H20A DOHC-PB 24v MPFI V6 100kW 5sp Man 4dr Wagon 4WD [12/94 - 10/97]
SUZUKI ESCUDO TD61W 2.5L H25A DOHC-PB 24v MPFI V6 116kW 4sp Auto 4dr Wagon 4WD [01/96 - 12/98]
SUZUKI ESCUDO TD61W 2.5L H25A DOHC-PB 24v MPFI V6 116kW 5sp Man 4dr Wagon 4WD [01/96 - 12/98]
SUZUKI ESCUDO TD62W 2.5L H25A DOHC-PB 24v MPFI V6 116kW 4sp Auto 4dr Wagon 4WD [01/98 - 12/05]
SUZUKI ESCUDO TD62W 2.5L H25A DOHC-PB 24v MPFI V6 116kW 5sp Man 4dr Wagon 4WD [01/98 - 12/05]
SUZUKI GRAND ESCUDO TX92W 2.7L H27A DOHC-PB 24v MPFI V6 135kW 4sp Auto 4dr Wagon 4WD [01/01 - 12/05]
SUZUKI GRAND ESCUDO TX92W 2.7L H27A DOHC-PB 24v MPFI V6 135kW 5sp Man 4dr Wagon 4WD [01/01 - 12/05]
SUZUKI GRAND VITARA TD62V SQ625 2.5L H25A DOHC-PB 24v MPFI V6 116kW 4sp Auto 4dr Wagon 4WD [04/98 - 09/05]
SUZUKI GRAND VITARA TD62V SQ625 2.5L H25A DOHC-PB 24v MPFI V6 116kW 5sp Man 4dr Wagon 4WD [04/98 - 09/05]
SUZUKI GRAND VITARA TX92V 2.7L H27A DOHC-PB 24v MPFI V6 135kW 4sp Auto 4dr Wagon 4WD [01/01 - 01/06]
SUZUKI GRAND VITARA TX92V 2.7L H27A DOHC-PB 24v MPFI V6 135kW 5sp Man 4dr Wagon 4WD [01/01 - 01/06]
SUZUKI JIMNY JB33V B33V SN413 1.3L G13BB SOHC 16v MPFI 4cyl 59kW 4sp Auto 2dr Hardtop 4WD [10/98 - 10/00]
SUZUKI JIMNY JB33V B33V SN413 1.3L G13BB SOHC 16v MPFI 4cyl 59kW 5sp Man 2dr Hardtop 4WD [10/98 - 10/08]
SUZUKI JIMNY JB33W 1.3L G13BA SOHC 8v Carb 4cyl 5sp Man 4dr Wagon FWD [01/98 - 12/00]
SUZUKI JIMNY JB33W 1.3L G13BA SOHC 8v Carb 4cyl Auto 4dr Wagon FWD [01/98 - 12/00]
SUZUKI JIMNY JB33W ST130 1.3L G13BA SOHC 8v Carb 4cyl Auto 4dr Wagon FWD [01/99 - 12/00]
SUZUKI JIMNY JB33W ST130 1.3L G13BA SOHC 8v Carb 4cyl Man 4dr Wagon FWD [01/98 - 12/00]
SUZUKI JIMNY JB43V 2000MY 1.3L M13A DOHC 16v MPFI 4cyl 62kW 5sp Man 2dr Hardtop 4WD [10/00 - 05/05]
SUZUKI JIMNY JB43W SIERRA SN413 1.3L M13A DOHC 16v MPFI 4cyl 62kW 4sp Auto 2dr Hardtop 4WD [01/06 - 12/17]
SUZUKI JIMNY JB43W SIERRA SN413 1.3L M13A DOHC 16v MPFI 4cyl 62kW 5sp Man 2dr Hardtop 4WD [01/06 - 12/17]
SUZUKI SWIFT HT51S 1.3L M13A DOHC 16v MPFI 4cyl 60kW 4sp Auto 5dr Hatchback AWD [02/00 - 11/04]
SUZUKI SWIFT HT51S 1.3L M13A DOHC 16v MPFI 4cyl 60kW 4sp Auto 5dr Hatchback FWD [02/00 - 11/04]
SUZUKI SWIFT HT51S 1.3L M13A DOHC 16v MPFI 4cyl 60kW 5sp Man 5dr Hatchback AWD [09/00 - 11/04]
SUZUKI SWIFT HT51S 1.3L M13A DOHC 16v MPFI 4cyl 60kW 5sp Man 5dr Hatchback FWD [09/00 - 11/04]
SUZUKI SWIFT ZC11S 1.3L M13A DOHC 16v MPFI 4cyl 60kW 4sp Auto 5dr Hatchback FWD [11/04 - 08/10]
SUZUKI SWIFT ZC11S 1.3L M13A DOHC 16v MPFI 4cyl 60kW 5sp Man 5dr Hatchback FWD [11/04 - 08/10]
SUZUKI SWIFT ZC71S 1.2L K12B DOHC 16v MPFI 4cyl 1sp Auto CVT 5dr Hatchback FWD [01/04 - 12/10]
SUZUKI SWIFT ZD11S 1.3L M13A DOHC 16v MPFI 4cyl 60kW 4sp Auto 5dr Hatchback AWD [11/04 - 08/10]
SUZUKI SWIFT ZD11S 1.3L M13A DOHC 16v MPFI 4cyl 60kW 5sp Man 5dr Hatchback AWD [11/04 - 08/10]
SUZUKI SWIFT ZD21S 1.5L M15A DOHC 16v MPFI 4cyl 74kW 4sp Auto 5dr Hatchback AWD [11/04 - 08/10]
SUZUKI VITARA TD62V 2.5L H25A DOHC-PB 24v MPFI V6 116kW 4sp Auto 4dr Wagon 4WD [01/98 - 12/06]
SUZUKI VITARA TD62V 2.5L H25A DOHC-PB 24v MPFI V6 116kW 5sp Man 4dr Wagon 4WD [01/98 - 12/06]
SUZUKI WAGON-R SOLIO MA34S 1.3L M13A DOHC 16v MPFI 4cyl 60kW 4sp Auto 4dr Wagon FWD [08/05 - 01/11]
SUZUKI WAGON-R SOLIO MA34S 1.3L M13A DOHC 16v MPFI 4cyl 60kW 4sp Auto 5dr Hatchback AWD [08/05 - 01/11]
SUZUKI WAGON-R SOLIO MA34S 1.3L M13A DOHC 16v MPFI 4cyl 60kW 4sp Auto 5dr Hatchback FWD [12/00 - 07/05]
Denso Alternator 101211-0720 [31400-60G10] 12v 70amps
Denso Alternator 101211-0721 [31400-60G10] 12v 70amps
Denso Alternator 102211-1430 [31400-77E11] 80amps
Denso Alternator 102211-2190 [31400-80G00] 12v 70amps
Denso Alternator 102211-5280 [31400-60G13] 12v 70amps
