SKU:HXA032

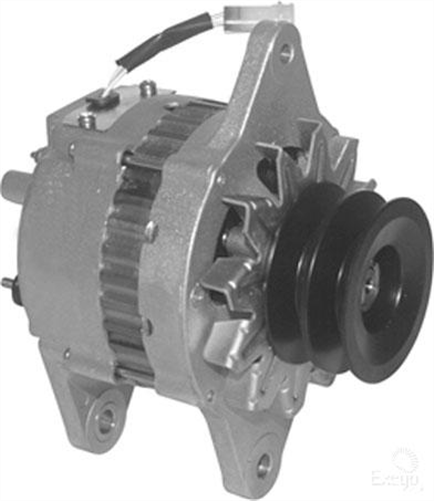

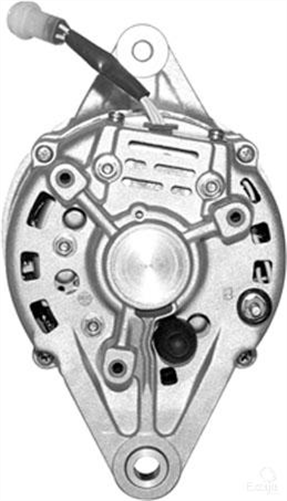

Alternator 24V 35A Hitachi Style HXA032
Alternator 24V 35A Hitachi Style HXA032
Description
Description
Part No. HXA032
Type ALTERNATOR
Brand OEX
Unit of Measure EACH
Description OEX Alternator 24V 35A Hitachi Style
Warranty 3yr Passenger 1yr Commercial
Adjusting Hole Diameter M10 x 1.5
Inside Mounting Legs 80mm

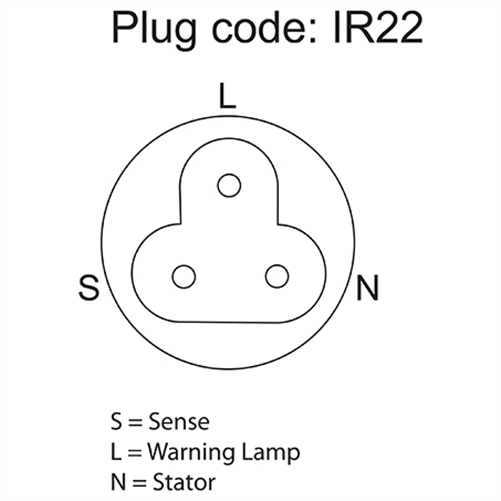

Pin Code IR22
Pivot Hole Diameter 12.1
Power Rating (Amp) 35
Pulley Outside Diameter 84mm
Pulley Section BB
Regulator Type Internal
Suits Unit Make Hitachi
Voltage 24
Alternator Mount Twin Leg
Mount Cnt to Cnt 200mm
New / Reman. New
Features
• The OEX brand is sourced from market leading Original Equipment Manufacturers and Aftermarket Suppliers
• OEX products are sourced from factories that are ISO9001 certified to support stringent engineering, testing and quality control procedures
• When you fit an OEX product you have the peace of mind in knowing that it is backed by a comprehensive nationwide warranty
WHAT IT FITS
HINO FM SERIES JHDFM3M 9.9L M10C Diesel Inj. 6cyl 13sp Man Heavy Truck 6x4 [01/93 - 12/01]
Ashdown Alternator 03-76006
Ashdown Alternator 03-76011
Ashdown Alternator 03-76015
Ashdown Alternator HXA032 24v
Ashdown Alternator NXA603 24v
Auto Electrics Australia Alternator ALT3512 24v
Auto Electrics Australia Alternator ALT5070 24v
Baxters Alternator A-5075 24v
Baxters Alternator A-5077 24v
Hino Alternator 27020-1080C
Hino Alternator 27040-1101A
Hino Alternator 27040-1102
Hino Alternator 27040-1102A
Hino Alternator 27040-1103B
Hino Alternator 27040-1104A
Hino Alternator 27040-1950
Hino Alternator 27040-1950A
Hino Alternator 27040-1950B
Hino Alternator 27040-1950C
Hino Alternator 27040-1951
Hino Alternator 27040-1951A
Hino Alternator 27040-1952A
Hino Alternator 27040-1953
Hino Alternator 27070-1101A
Hitachi Alternator LR235-12B [23100-96210] 24v 35amps
Hitachi Alternator LR235-65 [23100-Z5515] 24v 35amps
Hitachi Alternator LR235-67 [23100-95003] 24v 35amps
Hitachi Alternator LR235-72 [23100-96500] 24v 35amps
Hitachi Alternator LR240-19B [23100-96173] 24v 40amps
Hitachi Alternator LR240-19C [23100-96173] 24v 40amps
Hitachi Alternator LT225-22 [23100-96014] 24v 25amps
Hitachi Alternator LT225-23 [23100-96018/100] 24v 25amps
Hitachi Alternator LT225-55 [23100-96212] 24v 25amps
Hitachi Alternator LT225-74 [23100-Z5509] 24v 25amps
Hitachi Alternator LT225-781 24v
Hitachi Alternator LT235-34 [23100-96006] 24v 35amps
Hitachi Alternator LT235-34B [23100-97002] 24v 35amps
Hitachi Alternator LT235-37 [23100-96011] 24v 35amps
Hitachi Alternator LT235-51 24v
Hitachi Alternator LT235-65 24v
Hitachi Alternator LT235-67 [23100-95003] 24v 35amps
Hitachi Alternator LT235-76 24v
Hitachi Alternator LT235-78 24v
Ingram Alternator 843428
Isuzu Alternator 1-81200-249-32
Nikko Alternator 0-35000-3011
Nikko Alternator 0-35000-3013 [1-81200-249-3] 24v 40amps
Nissan Datsun Alternator - [23100-Z5518]
Nissan Datsun Alternator 23100-95003
Nissan Datsun Alternator 23100-96006
Nissan Datsun Alternator 23100-96011
Nissan Datsun Alternator 23100-96173
Nissan Datsun Alternator 23100-96210
Nissan Datsun Alternator 23100-Z5515
PJL Diesel Electrics Alternator VG6070 24v
R-France Alternator 02142-5070
Sawafuji Alternator 0201-102-1210 [27040-1410A] 24v 35amps
Sawafuji Alternator 0201-102-1220
Sawafuji Alternator 0201-102-2974 24v
Sawafuji Alternator 0201-102-3012
Sawafuji Alternator 0201-102-3013
Sawafuji Alternator 0201-152-0114 [27040-1952] 24v CW 50amps
Sawafuji Alternator 0201-152-0116 [27040-1953A] 24v 50amps
Sawafuji Alternator 0201-152-1012 [27040-2191B] 24v 50amps
Sawafuji Alternator 0211-401-0291
Sawafuji Alternator 0211-601-0110
Sawafuji Alternator 0211-601-0111
Sawafuji Alternator 0211-601-0112 24v
Sawafuji Alternator 0211-601-0113
Sawafuji Alternator 0214-102-1015 [27040-1103] 24v 35amps
Toyota Alternator 27040-1952
Toyota Alternator 27040-1953A
Toyota Alternator 27040-2191B
Wilson Alternator 90-30-6007
Wilson Alternator 90-30-6008
