AVS 360° PIR Motion Sensor | Vehicle Interior Protection System

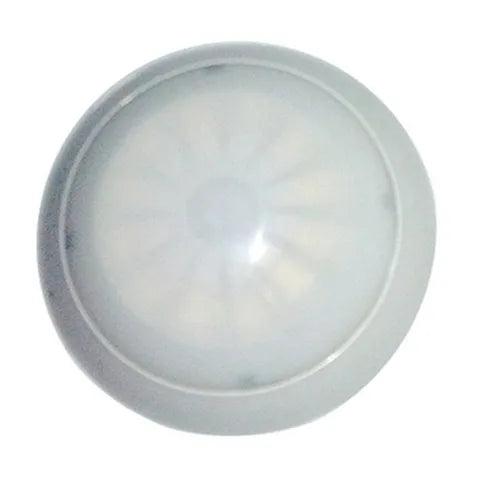

The AVS AVSPIR360 is a professional-grade, 360-degree passive infrared (PIR) motion sensor designed for comprehensive interior protection in the cabins of tall vehicles such as vans, trucks, motorhomes, and caravans. Mounted centrally on the ceiling, its wide, unimpeded field of view detects any movement within the protected space, triggering an alarm if an intruder enters while the vehicle is secured.

Key Specifications:

• Model: AVSPIR360

• Detection Type: Passive Infrared (PIR)

• Coverage: 360-degree field of view (vertical and horizontal)

• Sensor: Stable quad-element PIR for reliable, low-false-alarm detection

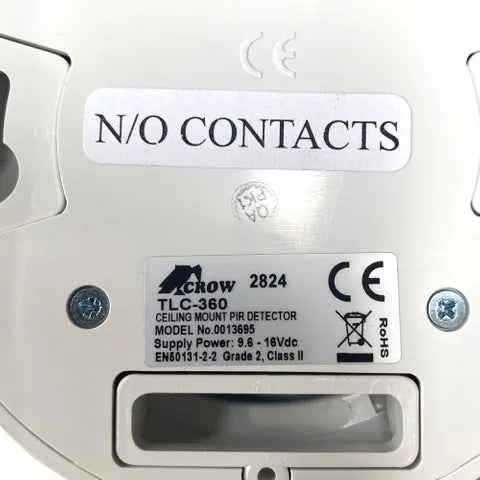

• Output: Normally Open (N/O) contacts

• Power Supply: 9.6 - 16V DC (compatible with standard 12V vehicle systems)

• Dimensions: 110mm diameter x 45mm height (compact ceiling-mount design)

• Certification: Compliant with EN 50131 Grade 2, Class II security standards

• Mounting: Designed for central ceiling mounting

Core Function & Benefits:

• Complete Interior Protection: Creates an invisible volumetric detection zone that covers the entire cabin interior, leaving no blind spots for an intruder to hide.

• Ideal for Large Spaces: Specifically engineered for the high ceilings and open layouts of commercial vans, trucks, and recreational vehicles where standard sensors may have limited coverage.

• Professional Reliability: The stable quad-element PIR sensor and compliance with European security standard EN 50131 Grade 2 ensure high sensitivity with a low rate of false alarms from environmental factors like changing sunlight or vehicle vibration.

• Easy Integration: The Normally Open (N/O) contact output connects directly to the accessory/zone input of compatible AVS or other brand alarm systems.

Primary Applications:

• Commercial Vehicles: Securing tool vans, delivery trucks, and service vehicles against theft from within.

• Motorhomes & Caravans: Providing interior security while the vehicle is parked and unattended.

• Workshop or Storage Vans: Protecting valuable equipment and cargo stored inside the vehicle.

Installation Note:

• Professional Installation Recommended: For optimal performance and to minimize false alarms, the sensor should be installed by a qualified technician. It must be mounted on a flat, central point of the ceiling, away from direct air vents, heat sources, or sunlight that could cause thermal interference. The detection pattern is designed for clear, open spaces.
