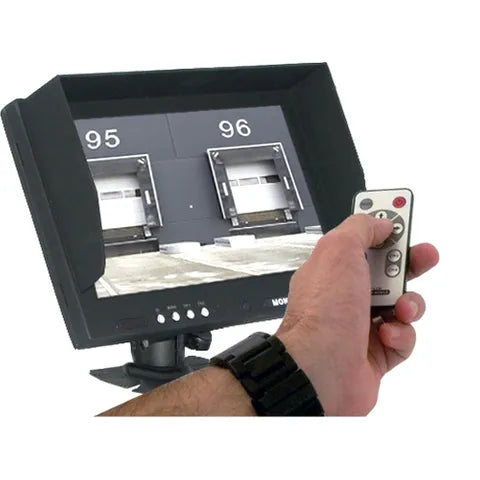

AVS 7" Bracket Mount LCD Monitor – Heavy Duty, 12–24V (Model: AVSRM70C)

The AVS AVSRM70C 7” LCD Monitor is a robust, cost-effective solution for vehicle monitoring, designed for heavy-duty applications and versatile installation. With a high-resolution widescreen display and dual-camera support, it provides reliable performance for commercial and personal vehicles alike.

Key Features:

• 7" High-Resolution LCD Display
  Commercial-grade color monitor with wide-screen support (switchable between 16:9 or 4:3) for crisp and clear video.

• Heavy Duty & Versatile Mounting
  Comes with a strong pedestal bracket mount, adjustable for height, swivel, and tilt, and a sunshade hood for glare reduction. Mount on any flat surface using the supplied adhesive pad.

• Dual Camera Inputs
  Supports 2 cameras via 4-pin heavy-duty connectors, supplying 12V power to each camera. Camera images can be horizontally and vertically flipped, allowing flexible monitor placement (front, rear, or roof mount).

• Automatic Reverse Activation
  When connected to a reversing camera, the monitor will automatically display the rear camera feed when the vehicle is in reverse, even if the monitor is off.

• Adjustable Display Settings
  Fine-tune brightness, contrast, and color using the on-screen display (OSD) or push-button remote. Easily switch between camera views.

• Wide Compatibility
  Accepts both PAL and NTSC format cameras for flexible use.

• 12–24 Volt Vehicle Support
  Suitable for most commercial and passenger vehicles. Note: For 24V vehicles, cameras must be powered through the monitor.

• Optional 4-Pin Extension Cables:

  • 5m | 10m | 15m | 20m | 25m

Dimensions:

• Screen with hood: 175 x 115 x 43 mm

• Height with bracket: approx. 115–155 mm (adjustable)

• Bracket foot: 120 x 90 mm
