AVS Reverse Parking Sensors – 4 Metal Sensors with Buzzer & Display for Commercial Vehicles

AVS Reverse Parking Sensors – 4 Metal Sensors with Buzzer & Display for Commercial Vehicles

$329.95
$329.95
Tax included. Shipping calculated at checkout.
  • Free shipping over $120
  • Kiwi owned & operated
  • We'll help you find the part
Check it fits before you buy
Expected delivery date:
10 Oct Usually delivered in 2-3 days.

Description

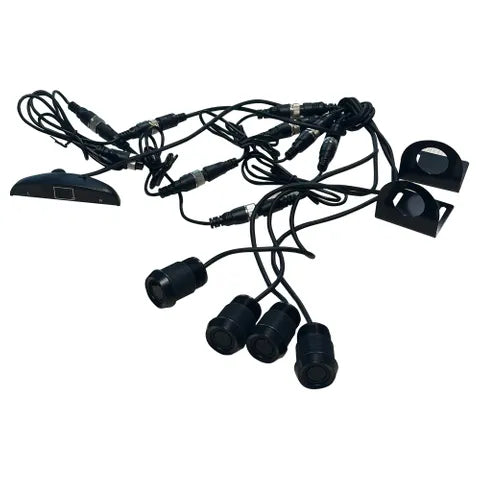

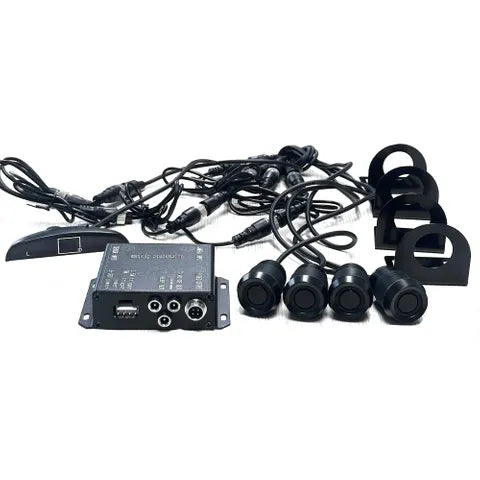

AVS 4x Reverse Parking Sensor System – Metal Sensors with Buzzer & Display for Trucks and Buses

The AVS Truck & Bus Reverse Parking Sensor System is a high-definition, long-distance digital parking solution designed for large commercial vehicles. With four heavy-duty metal sensors, a visual display, and an audible buzzer, this system provides reliable obstacle detection, enhancing safety while reversing.

Key Features

Sensor Specifications:

  • Voltage: 8–24V DC

  • Current: 20mA

  • Waterproof Rating: IP67

  • Maximum Detection Distance: 5m

  • Human Detection Distance: 3.5m

  • Ultrasonic Frequency: 40KHz / 48KHz

  • Scan Frequency: 4Hz

  • Sensor Core Diameter: 28mm

  • Connector: 4-pin aviation connector

  • Cable Transmission Distance: Up to 500m

  • Supports Series-Parallel Connection: Up to 16 sensors

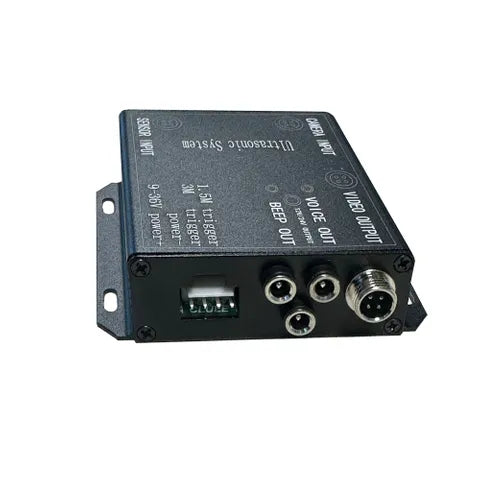

Host Specifications:

  • Voltage: 8–45V DC

  • Current: 100mA

  • Power Consumption: <5W

  • Connector: Waterproof M12 aviation connector, 4-pin interface

  • Supported Video Format: CVBS PAL/NTSC, AHD 720P / 1080P

  • Trigger Method: Yellow for long-distance alarm, Blue for short-distance alarm

Applications

  • Trucks, buses, vans, and other large vehicles

  • Fleet and commercial vehicle parking safety

  • Reversing in tight spaces or loading areas

Benefits

  • Detects obstacles up to 5m for safer maneuvering of large vehicles

  • Audible buzzer and visual display for clear alerts

  • Heavy-duty metal sensors designed for long-lasting performance

  • Supports multi-sensor configuration for extended coverage

  • Reduces risk of collisions, protecting vehicle and surroundings

Note: The host unit is not waterproof or water-resistant.
