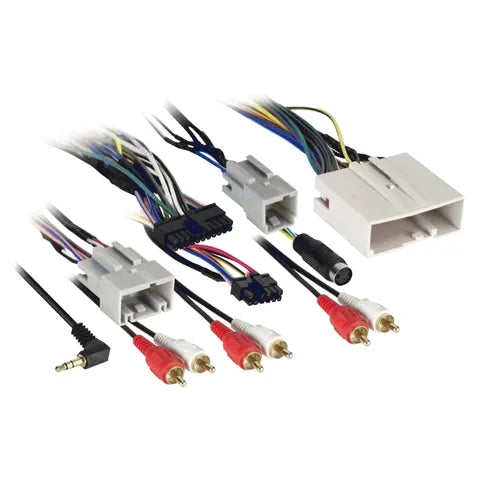

Axxess Integration Harness for 2007+ Ford F-150 with Factory Navigation

This Axxess ADBOX interface harness is the advanced integration solution for replacing the factory navigation radio in 2007 and newer Ford F-150 trucks (and other listed Ford/Lincoln models). It is a critical wiring component that must be used in conjunction with an AX-ADBOX1 or AX-ADBOX2 interface module (sold separately). This system retains nearly all factory features including SYNC, satellite radio, AUX input, rear seat entertainment, and provides the necessary outputs for steering wheel controls and the new radio. It is compatible with both standard and premium amplified systems (including Sony/THX).

Key Features & Benefits

• Complete Feature Retention: Preserves SYNC, factory satellite radio, AUX input, rear seat entertainment (RSE), retained accessory power (RAP), and steering wheel control pre-wiring.

• Advanced System Interface: Requires the AX-ADBOX1 or AX-ADBOX2 module to function, providing a seamless data connection between the vehicle and the new stereo.

• Vehicle-Specific Integration: Designed specifically for Ford vehicles with complex factory infotainment and navigation systems.

• Outputs for Aftermarket Radios: Provides essential outputs including parking brake, reverse gear trigger, and speed sense signals for compatible aftermarket receivers.

• Forward-Compatible Design: Micro-USB updatable to support future vehicle software changes.

Core System Requirements

• This product is not standalone. It must be purchased and used together with either:

  • AX-ADBOX1 Interface Box (for most applications)

  • AX-ADBOX2 Interface Box (for specific feature sets or vehicles)

• AXSWC module (sold separately) is required to activate steering wheel control retention.

Primary Vehicle Application

• Ford F-150 with Factory Navigation (2009-2012, and specific 2013-2014 base trim models)

Also Compatible With (see full list):

• Ford Expedition, Explorer (with NAV), Mustang, Edge (with NAV), and Lincoln Navigator (2007-2014).
