DR770X-BOX-3CH-PRO

BLACKVUE DR770X BOX PRO 3-CH CAMERA SYSTEM WITH CENTRAL RECORD BOX + FRONT & INTERIOR IR 1080P DASHCAM (64GB)

BLACKVUE DR770X BOX PRO 3-CH CAMERA SYSTEM WITH CENTRAL RECORD BOX + FRONT & INTERIOR IR 1080P DASHCAM (64GB)

$999.95
$999.95
Tax included. Shipping calculated at checkout.
Expected delivery date:
05 Dec Usually delivered in 2-3 days.

Description

BLACKVUE DR770X BOX PRO 3-CH DASH CAMERA SYSTEM WITH CENTRAL RECORD BOX + FRONT & INTERIOR IR + REAR 1080P (64GB)

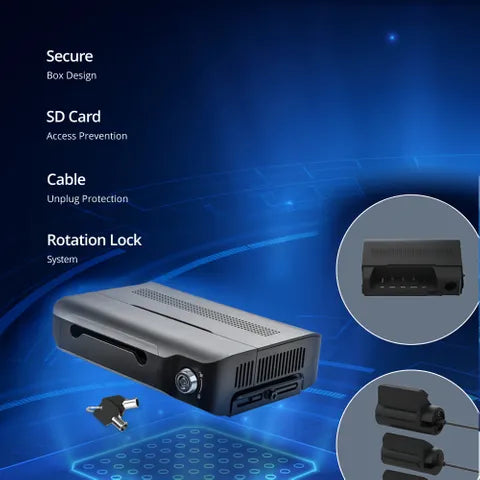

BlackVue DR770X Box-3CH Pro delivers complete front, rear, and interior protection for your vehicle. All three cameras use Sony STARVIS™ image sensors for exceptional clarity in any lighting condition. The system includes a secure central recording box, external GPS support, built-in Wi-Fi, Cloud compatibility, wireless SOS button, and advanced Parking Mode with voltage monitoring.

Perfect for rideshare drivers, fleet vehicles, taxis, or anyone needing premium 360° surveillance.

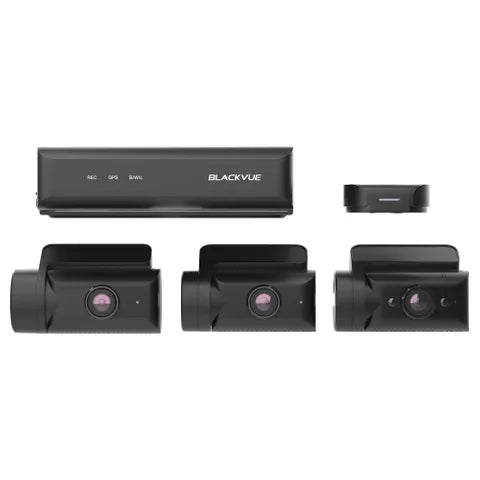

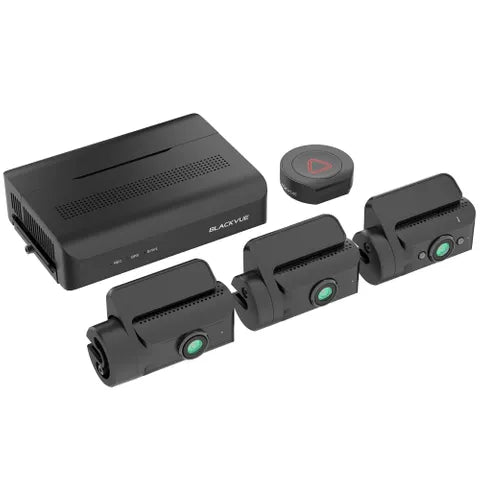

What's Included

• Main Recording Unit (Box)
• Front Camera (1080P)
• Rear Camera (1080P)
• Interior IR Camera (1080P with infrared LEDs)
• SOS / Wireless Button
• Cigarette Lighter Power Cable (4.5m)
• Hardwiring Power Cable (4.5m)
• Camera Connection Cables (6m × 3)
• 64GB BlackVue microSD Card + Card Reader
• Quick Start Guide
• Mounting Tape + Main Unit Key

Model Information

Model: DR770X Box-3CH Pro
Channels: 3CH (Front + Rear + Interior IR)
Highlights:
• Full HD + Full HD + Full HD
• Triple Sony STARVIS Sensors
• Cloud Compatible
• Built-in Wi-Fi
• External LTE & GPS Module Support

Product Dimensions

Main Unit: 135.0 × 101.0 × 37.5 mm / 225 g
Front Camera: 77.5 × 34 × 49.5 mm / 61 g
Rear Camera: 69.5 × 32.0 × 48.3 mm / 46 g
Interior IR Camera: 69.5 × 32.0 × 48.3 mm / 47 g
Wireless Button: 45.2 × 42.0 × 14.5 mm / 23 g

Rear Camera Connection: Coaxial Cable
Memory Support: microSD up to 512GB

Recording Modes

• Normal Recording
• Event (Impact) Recording
• Manual Recording (via Wireless Button)
• Parking Mode (motion & impact detection)
Parking Mode triggers via ACC+ when hardwired, or via G-sensor otherwise.

Imaging Sensors

• Front: STARVIS CMOS (Approx. 2.1 MP)
• Rear: STARVIS CMOS (Approx. 2.1 MP)
• Interior IR: STARVIS CMOS (Approx. 2.1 MP)

Viewing Angles

Front: 139° diag / 116° horiz / 61° vert
Rear: 139° diag / 116° horiz / 61° vert
Interior IR: 180° diag / 150° horiz / 93° vert

Resolutions & Frame Rates

• Front: Full HD 1080p @ 60 fps
• Rear: Full HD 1080p @ 30 fps
• Interior IR: Full HD 1080p @ 30 fps
Frame rate may reduce when streaming via Wi-Fi.

Video Codec: H.264 (AVC)
File Format: MP4

Bitrate Options (Front / Rear / Interior)

• Extreme: 16 + 10 + 10 Mbps
• Highest: 12 + 10 + 10 Mbps
• High: 10 + 8 + 8 Mbps
• Normal: 8 + 6 + 6 Mbps

Features & Functions

• Format-Free Recording (Adaptive)
• Event File Overwrite Protection (up to 51 files)
• SD Card Failure Alert
• Scheduled Reboot
• Built-in Wi-Fi (802.11 b/g/n)
• Cloud Compatible
• External GPS (Dual Band – GPS / GLONASS)
• Built-in Microphone & Speaker
• Bluetooth V2.1+EDR / 4.2
• External LTE module support

Impact Detection: 3-Axis G-Sensor

LED Indicators

• Main Unit: Recording LED, GPS LED, Bluetooth/Wi-Fi/LTE LED
• Cameras: Front & Rear Security LEDs
• Interior IR Camera: Security LED + IR illumination (940nm)
• EB-1 Button: Operating / Low Battery LED

Operating Conditions

• Operating Temp: -20°C to 70°C
• Storage Temp: -20°C to 80°C
• High Temp Cut-Off: Approx. 75°C
• Power Input: DC 12V–24V
• Backup Power: Super Capacitor

Power Consumption:
• Normal Mode (GPS ON / 3CH): Avg. 750mA @ 12V
• Parking Mode (GPS OFF / 3CH): Avg. 600mA @ 12V
Interior IR LEDs add approx. 40mA.

Software & Apps

• BlackVue Viewer (Windows / Mac)
• BlackVue Web Viewer (Chrome / Safari)
• BlackVue App (Android 8.0+ / iOS 13+)
