BlackVue DR770X-BOX Truck Pro 3-Channel 2K Dash Camera System with Central Record Box – 64GB

BlackVue DR770X-BOX Truck Pro 3CH 2K Dashcam System – 64GB

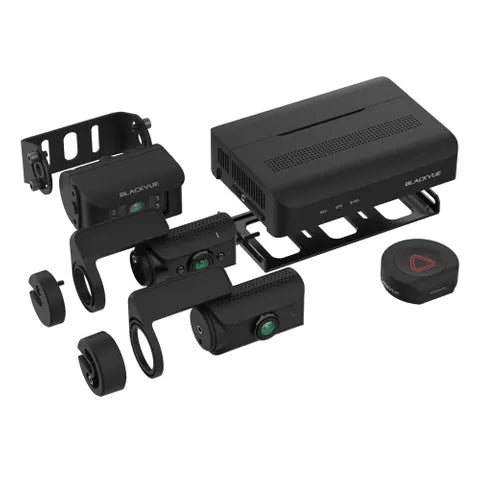

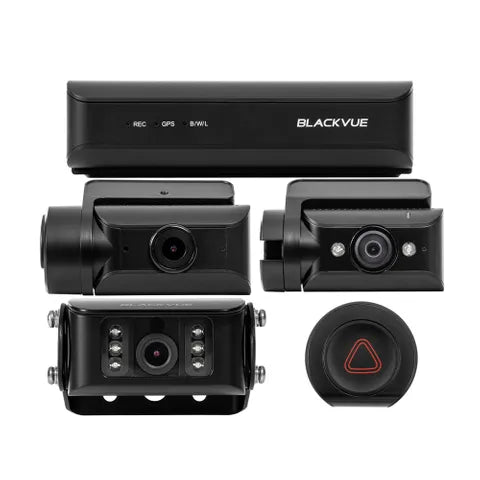

The BlackVue DR770X-BOX Truck Pro delivers complete video protection for commercial trucks and heavy-duty vehicles. Designed for demanding environments, this advanced 3-channel system includes a waterproof external rear camera, interior infrared camera, and front 2K camera—all connected to a secure central recording box for maximum reliability.

Total Protection for Trucks & Heavy Vehicles

The IP69K-rated waterproof rear camera connects via a 15m coaxial cable, allowing you to monitor the road behind as well as loading and unloading operations. The ultrawide infrared interior camera captures clear footage inside the cabin, even in complete darkness. Perfect for fleet vehicles, logistics operations, and long-haul trucking.

Add the optional BlackVue LTE Connectivity Module to keep the dashcam connected to the Cloud at all times for real-time alerts, remote live view, and backup storage.

Key Features

• 3-Channel 2K Recording (Front, Rear, Interior) with Sony STARVIS™ Sensors

• Waterproof IP69K External Rear Camera with infrared LEDs

• Ultrawide Interior IR Camera for clear night recording

• Secure Central Record Box for stable and reliable footage storage

• Built-in GPS, Wi-Fi, and Cloud Compatibility (optional LTE module supported)

• Smart Parking Mode with built-in voltage monitoring

• Impact & Motion Detection with voice notifications

• SOS Button Included for manual event recording

• Easy setup with Seamless BlackVue App Pairing (iOS/Android)

Specifications

Model

• Name: DR770X Box Truck

• Channels: 3CH (Front + Rear + Interior)

Video Quality

• Resolution: 2K QHD for all 3 channels

• Viewing Angles:

  • Front: 139°

  • Rear: 116°

  • Interior: 180°

• Codec: H.264 (AVC)

• Bitrates: Up to 16 + 10 + 10 Mbps (Extreme Mode)

Recording Modes

• Normal Recording

• Event Recording (Impact detected)

• Manual Recording

• Parking Mode Recording (motion detected)

Sensors & Alerts

• Sony STARVIS™ CMOS sensors (all channels)

• 3-Axis Impact Sensor

• SD Card Failure Alert

• Event File Overwrite Protection

Connectivity

• Built-in Wi-Fi

• External GPS (GPS + GLONASS)

• Optional LTE Module (Cloud access)

Memory Support

• microSD card up to 256GB

• Format-free recording supported

Dimensions & Weight

• Main Box: 130 × 101 × 33 mm / 209 g

• Front Camera: 62.5 × 34.3 × 34 mm / 43 g

• Rear Truck Camera: 70.4 × 56.6 × 36.1 mm / 157 g

• Interior IR Camera: 63.5 × 32 × 32 mm / 34 g

• Wireless Button: 45.2 × 42 × 14.5 mm / 23 g

Power Requirements

• Input: DC 12–24V

• Consumption:

  • Normal Mode (3CH): Avg. 730mA / 12V

  • Parking Mode (3CH): Avg. 610mA / 12V
