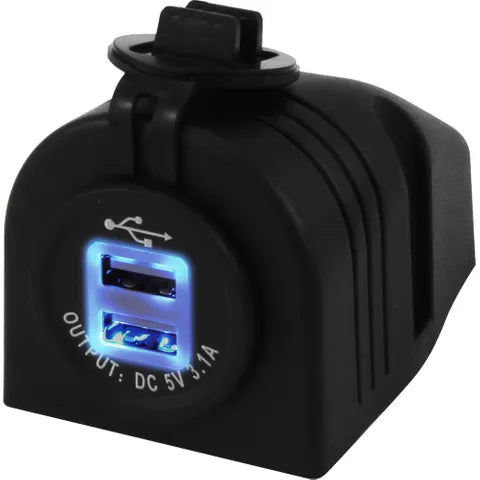

DNA Dual USB Heavy-Duty Charging Port | 5V 3.1A Surface Mount (12-24V)

DNA Dual USB Heavy-Duty Charging Port | 5V 3.1A Surface Mount (12-24V)

$39.95
$39.95
Tax included. Shipping calculated at checkout.
Expected delivery date:
07 Jul Usually delivered in 2-3 days.

Description

This DNA Dual USB charging port is a rugged, surface-mount power solution designed for demanding environments in vehicles, marine applications, caravans, and industrial equipment. Built with heavy-duty construction and protective dustproof covers, it provides reliable, high-speed 5V charging for two USB devices simultaneously, even in harsh conditions.

Key Features & Benefits:

  • Heavy-Duty & Weather-Resistant: Features a robust housing, integral dustproof covers for each port, and a versatile mounting system designed for installation into interior or exterior panels, including steel and aluminum. Built to withstand vibration, moisture, and dust.

  • High-Speed Dual Charging: Delivers a combined 5V DC output at 3.1 Amps, enabling fast charging for smartphones, tablets, GPS units, and other USB-powered devices from both ports.

  • Wide Voltage Input Range: Operates on a broad 12-24V DC input range (6-33V range), making it compatible with standard 12V automotive/marine systems as well as 24V truck, bus, and heavy machinery electrical systems.

  • High-Current Capacity: Rated for 20A at 12VDC and 10A at 24V on the input side, ensuring it can handle the power demand for the USB circuits and other potential auxiliary loads without overload.

  • Clear Visual Indicator: Includes a blue LED power indicator to show when the unit is active and receiving power.

  • Surface Mount Design: Easy to install on flat panels, dashboards, consoles, or walls using the provided mounting mechanism.

Technical Specifications:

  • Input Voltage: 12-24V DC (Operating Range: 6-33V)

  • Input Current Rating: 20A @ 12VDC / 10A @ 24VDC

  • USB Output: 5V DC, 3.1A Max Combined

  • Indicator: Blue LED

  • Protection: Dustproof Covers

  • Dimensions: 80mm (L) x 54mm (W) x 50mm (D)

  • Mounting: Surface Mount

Ideal For:

  • Trucks, 4x4s, & Heavy Machinery: Adding durable charging points in cabs.

  • Marine & Boating: Weather-resistant power for cockpits or cabins.

  • Caravans & Campers: Reliable power sourcing for living areas.

  • Workshops & Industrial Panels: Providing USB power on equipment or control boxes.
