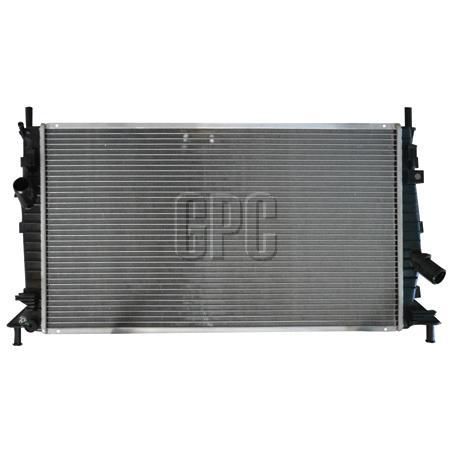

FloKool Radiator – Engine Cooling

Aluminium Core with Plastic Tank
Part Number: RAD686

The FloKool RAD686 radiator is a high-performance replacement radiator designed for a wide range of Ford Focus models, including hatchback, sedan, wagon, convertible, and turbo variants. Developed for the Australian and New Zealand market, this radiator is built to meet or exceed OE specifications, delivering reliable engine cooling, superior heat dissipation, and long-lasting performance.

Its lightweight aluminium core and durable plastic tanks provide efficient cooling under both normal and demanding driving conditions.

Key Features

• Developed for the Australian and New Zealand market
• Built to meet or exceed OE specifications
• Aluminium core for optimal heat transfer
• Lightweight yet durable construction
• Side-flow radiator design
• Suitable for a wide range of petrol and diesel variants
• 2-year or 50,000 km warranty (whichever occurs first)

Technical Specifications

Item Type: Radiator
Core Material: Aluminium
Tank Material: Plastic
Core Width: 370 mm
Core Height: 670 mm
Core Thickness: 24 mm
Core Rows: 1
Flow Type: Side Flow
Header Top Plate: 388 × 41 mm
Header Bottom Plate: 388 × 41 mm
Inlet Pipe Diameter: 33 mm
Outlet Pipe Diameter: 33 mm
OEM Reference: 3M5H8005RK
Weight: 5.85 kg

Vehicle Compatibility

Compatible with Ford Focus models (II, LS, LT, LV) including:

• 2.0L Petrol, 2.5L Turbo Petrol, 2.0L TDCi Diesel variants

• Hatchback, Sedan, Wagon, Convertible

• FWD applications

Important notes:
• Radiator cap is sold separately
• Compare inlet/outlet positions with your original radiator before purchase
• Special order item
