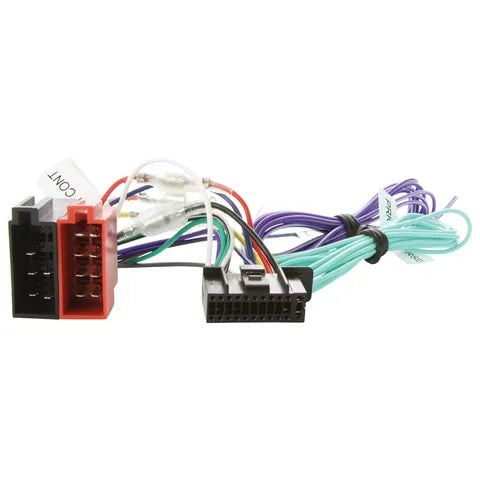

Kenwood Car Stereo Wiring Harness | 22-Pin Smart Harness for A/V Units (2018-2024 Models)

Kenwood Car Stereo Wiring Harness | 22-Pin Smart Harness for A/V Units (2018-2024 Models)

$14.95
$14.95
Tax included. Shipping calculated at checkout.
Expected delivery date:
07 Jul Usually delivered in 2-3 days.

Description

This dedicated 22-pin wiring harness adapter is engineered for seamless integration of compatible Kenwood A/V and navigation head units, specifically the DNX series and similar models, into vehicles from the 2018-2024 model years. It provides a complete plug-and-play solution, enabling all multimedia functions without cutting or splicing your vehicle's factory wiring.

Key Features & Benefits:

  • Model-Specific Compatibility: Precisely designed for Kenwood's advanced 22-pin A/V and navigation units, including the DNX series (e.g., DNX518VDABS, DNX9190DABS), ensuring correct connection for audio, video, navigation, and steering wheel control signals.

  • Universal ISO Integration: Converts the proprietary Kenwood 22-pin connector to a standard dual ISO (Quadlock) connector, making it compatible with factory wiring in a wide range of modern vehicles from 2018 onward.

  • True Plug-and-Play Installation: This harness enables a fully reversible, solder-free installation. It preserves your vehicle's original wiring harness, protecting its value and ensuring easy future upgrades or reinstallation of the factory radio.

  • Simplified Professional Installation: The process is direct: connect the harness to your Kenwood head unit, then plug it into your vehicle’s existing ISO/DIN factory radio lead. This eliminates guesswork and reduces installation time for a flawless result.

  • Ensures Complete Functionality: Properly transmits all critical signals required by premium A/V units—including constant/switched 12V power, ground, front/rear/subwoofer speaker outputs, camera inputs (rear/front), parking brake, and amplifier triggers—so all features operate as intended.

⚠️ Critical Compatibility & Disclaimer:

This adapter connects your Kenwood head unit to your car's factory wiring system. For a successful installation, you must verify:

  1. Vehicle-Side Connector: That your 2018-2024 vehicle uses a standard ISO/DIN connector for its factory radio.

  2. Stereo Model: That your Kenwood unit is a 22-pin model compatible with this harness (e.g., DNX, DNN, or DMX series units from circa 2018+).
