Description

OEX Alternator 12V 110A Denso Style – DXA433M

The OEX Alternator DXA433M is a high-quality 12V, 110-amp alternator designed for Denso-style applications. Engineered for reliable performance and efficient battery charging, this alternator is ideal for a wide range of Toyota diesel and petrol vehicles requiring stable electrical output.

It features a fixed pulley, internal regulator, and optional active warning light circuit. Installation is straightforward, with a single-leg mount and included adapter harness for inactive warning light circuits.

Key Features

  • High output 110A – supports vehicles with moderate electrical demands
  • Denso-style design – direct replacement for OE units

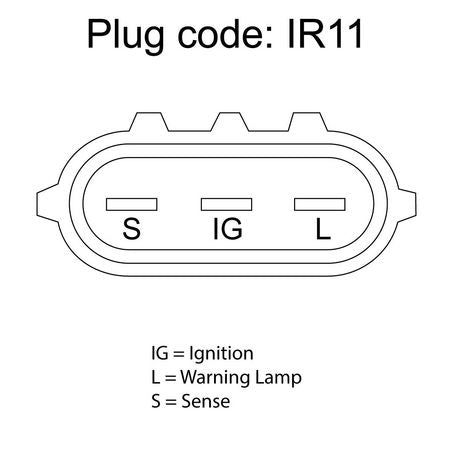

  • Internal regulator (Pin Code IR11) – optional active warning light circuit
  • Single leg mount – ensures correct fitment
  • Fixed pulley design – Pulley Section: AA
  • Brand new unit – not remanufactured
  • Adapter harness included – for inactive warning light circuits
  • 3-year passenger / 1-year commercial warranty

Specifications

  • Voltage: 12V
  • Output: 110 Amp
  • Pulley Section: AA
  • Pulley Outside Diameter: 76mm
  • Adjusting Hole Diameter: M8 x 1.25
  • Mount Leg Thickness: 58mm
  • Pivot Hole Diameter: 10mm
  • Pin Code: IR11
  • Regulator Type: Internal
  • Rotation: Clockwise (CW)
  • Alternator Mount: Single Leg
  • Mount Centres: 165mm
  • Unit Type: New
  • Insulated Return: No
  • Weight: 6.5kg
  • Suits Unit Make: Denso

Vehicle Applications

Commonly fitted to:

  • Toyota Coaster HZB50 D 4.2L 1H-Z Diesel Bus RWD (01/1993 ON)
  • Toyota Dyna BZU300 / BZU340 / BZU410… 4.1L 1BZ-FPE Petrol/LPG Cab Chassis RWD (06/2003 ON)
  • Toyota Land Cruiser HDJ100 / HDJ101K 4.2L 1HD-FTE Turbo Diesel SUV AWD (01/1998 – 08/2007)
  • Toyota Land Cruiser HDJ78 / HDJ78R / HDJ79R / HDJ80 / HDJ81 / HDJ81V 4.2L Turbo Diesel SUV & Pickup AWD (01/1990 – 02/2007)
  • Toyota Land Cruiser HZJ70RV / HZJ71V / HZJ75 / HZJ75RP / HZJ77 / HZJ80 / HZJ81 / HZJ105 4.2L / 1H-Z Diesel SUV & Pickup AWD (01/1990 – 08/2007)
  • Toyota Land Cruiser PZJ70 / PZJ70RV / PZJ73 / PZJ73RV / PZJ77 3.5L 1PZ Diesel SUV & Hardtop AWD (01/1990 – 12/1994)

Always confirm compatibility using the OE number, part number, or vehicle details before installation.

Performance & Reliability

The DXA433M alternator is built to maintain reliable electrical output across demanding Toyota vehicle applications. Optional active warning light circuits ensure proper dashboard notifications, while included harness adapters and upgrade provisions facilitate safe installation.

Why Choose OEX?

  • Trusted aftermarket brand across Australia & New Zealand
  • Direct-fit Denso-style replacement for OE performance
  • Built for durability and extended service life
  • Backed by strong warranty support and proven reliability
