OEX Starter Motor 12V 10Th CW Bosch Style BXS0158

OEX Starter Motor 12V 10Th CW Bosch Style BXS0158

$220.57
$220.57 $227.00
Tax included. Shipping calculated at checkout.

Description

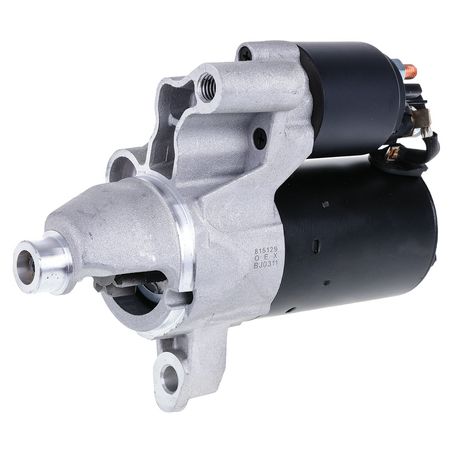

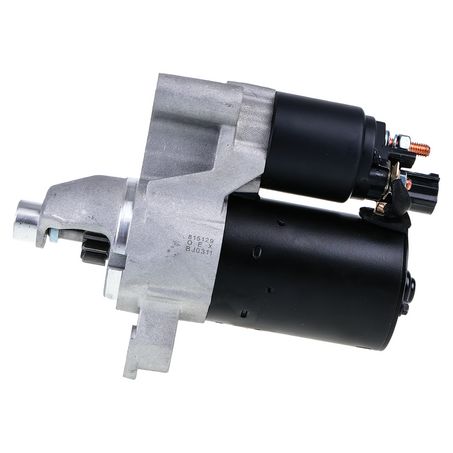

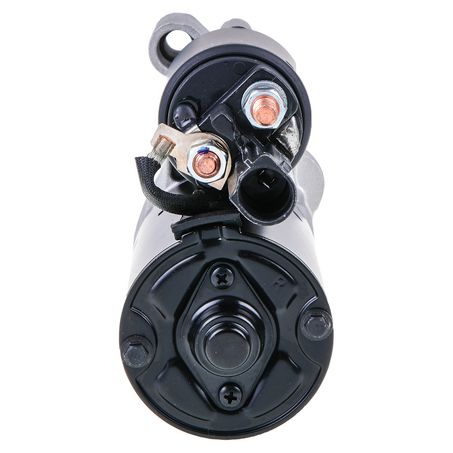

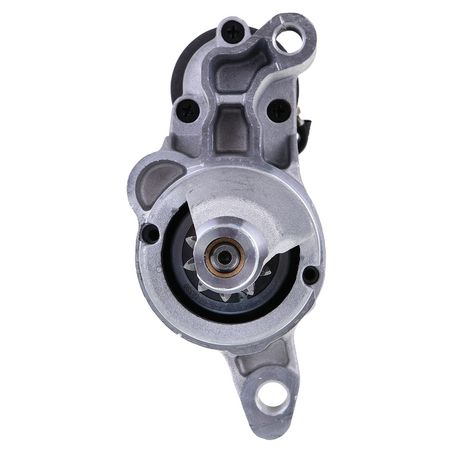

OEX Starter Motor 12V 10Th CW Bosch Style – BXS0158

The OEX Starter Motor BXS0158 is a premium 12V, 10-tooth Bosch-style starter motor designed for select Audi and Porsche petrol engines. Built for reliability and long service life, it features a dry clutch and 2-hole mounting. This unit is ideal for automatic applications without Stop-Start function.

Key Features

  • 10-tooth pinion – ensures smooth engagement with engine flywheel
  • Clockwise (CW) rotation – specific fitment for targeted engine layouts
  • Bosch-style design – OE-compatible replacement
  • 2-hole mount type – secure and straightforward installation
  • Dry clutch – standard operation for petrol engines
  • New unit – not remanufactured
  • Power rating: 1.1kW
  • Warranty: 3-year passenger / 1-year commercial
  • Suitable for automatic applications – without Stop-Start function

Specifications

  • Voltage: 12V
  • Flange Diameter: 66mm
  • Mount Centres A: 134mm
  • Mount Hole Diameter: M12x1.5 / 11
  • Nose Cone Length: 59.5mm
  • Number of Teeth: 10
  • Overall Length: 218mm
  • Pinion at Rest: 23mm
  • Pinion Diameter: 33mm
  • Power Rating: 1.1kW
  • Rotation: CW
  • Starter Mount Type: 2 Hole
  • Wet / Dry Clutch: Dry
  • Unit Type: New
  • Suits Unit Make: Bosch
  • Weight: 2.88kg

Vehicle Applications

Audi A4 (B8/B9), A4 Allroad, A5, Q7 & Porsche Macan:

  • Audi A4 B8 / B8 Avant (2007 – 2016) – 1.8L / 2.0L TFSI petrol, FWD/AWD, no Stop-Start
  • Audi A4 B9 35 TFSI Mild Hybrid (2018 ON) – 2.0L petrol/electric hybrid, FWD
  • Audi A5 8F7 (2009 – 2012) – 1.8L TFSI petrol convertible, FWD
  • Audi Q7 4MB/4MG/4MQ (2015 ON) – 2.0L TFSI petrol, AWD
  • Audi A4 Allroad 8KH (2009 – 2016) – 2.0L TFSI petrol, AWD
  • Porsche Macan 95B (2015 ON) – 2.0L TFSI petrol, AWD

(Option offered OEX Bosch-style unit. To suit automatic applications without Stop-Start.)
