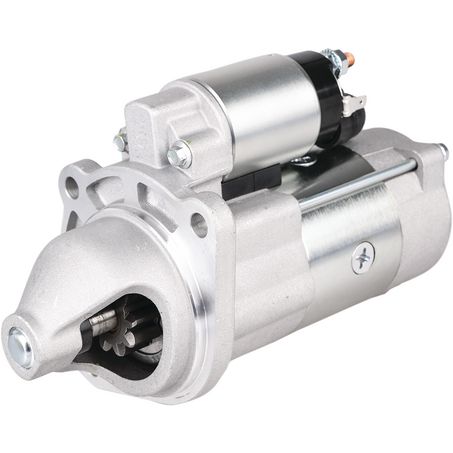

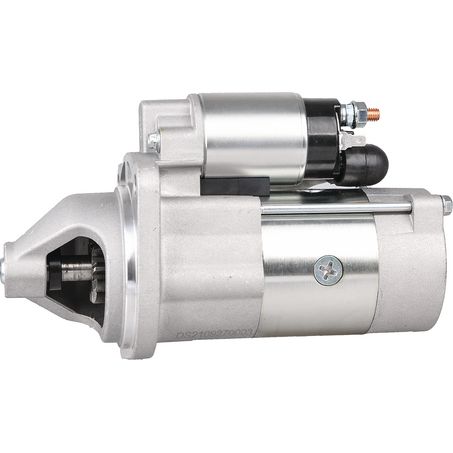

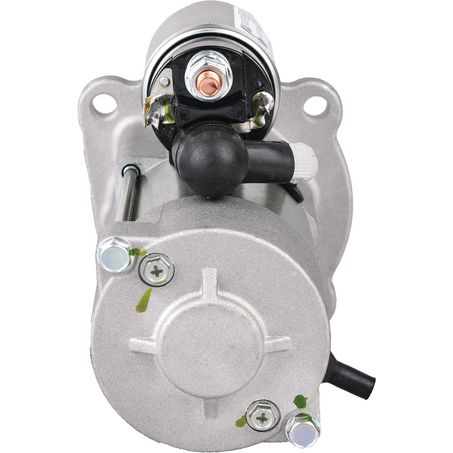

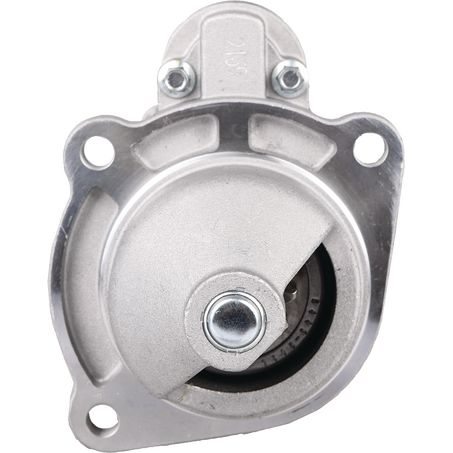

OEX Starter Motor 12V 10Th CW Cummins Style ZXS101

• Starter Motor 12V 10Th CW Cummins Style – ZXS101

  The OEX Starter Motor ZXS101 is a high-performance 12V starter motor designed as a direct replacement for Cummins-style units. Engineered for reliable and consistent engine starting, this unit is ideal for heavy-duty, commercial, and industrial applications where dependable cranking power is essential.

  Manufactured using premium-grade components and built to meet strict quality standards, this starter motor delivers strong starting performance, durability, and long service life in demanding operating environments.

  ---

  Key Features

  * 2.5kW high torque output – ensures reliable engine starting
  * 10 tooth pinion (10Th) – designed for correct engagement
  * Clockwise rotation (CW) – matches OE specifications
  * Cummins-style design – direct replacement for OE units
  * 3-hole mounting configuration – ensures accurate fitment
  * Heavy-duty construction – suitable for commercial and industrial use
  * Brand new unit – not remanufactured
  * 1-year warranty

  ---

  Specifications

  * Voltage: 12V
  * Power Rating: 2.5kW
  * Rotation: CW
  * Number of Teeth: 10
  * Starter Mount Type: 3 Hole
  * Flange Diameter: 89mm
  * Mount Centres A: 127mm
  * Mount Centres B: 90mm
  * Mount Centres C: 90mm
  * Mount Hole Diameter: 11mm
  * Pinion Diameter: 40mm
  * Pinion at Rest: 19mm
  * Overall Length: Approx. 245mm
  * Weight: Approx. 5.2kg
  * Suits Unit Make: Cummins
  * Unit Type: New

  ---

  Vehicle Applications

  Commonly fitted to:

  * Cummins-powered commercial trucks and transport vehicles
  * Foton Trucks & Commercial Vehicles (Selected Models)
  * Construction equipment and machinery
  * Agricultural equipment and diesel engines
  * Industrial applications including forklifts and generators

  (Fitment may vary depending on engine and build specifications.)

  * Note: Always confirm compatibility using part number ZXS101, OEM reference (e.g., 5363153), and mounting specifications before purchase.

  ---

  Performance & Reliability

  The ZXS101 starter motor is engineered to deliver powerful and consistent cranking performance, even in demanding environments. Its 2.5kW output ensures reliable starting for diesel engines, while its robust construction is designed to withstand heat, vibration, and heavy-duty usage.

  With OE-style Cummins compatibility, it offers straightforward installation and dependable operation as a direct replacement unit.

  ---

  Why Choose OEX?

  • Trusted aftermarket brand across Australia & New Zealand
  • Designed for direct fitment and OE-level performance
  • Built using ISO-certified manufacturing processes
  • Proven reliability in commercial, industrial, and heavy-duty applications
  • Backed by strong warranty support

  ---




Compatible Vehicles

• FOTON 45.110 2.8L ISF 2.8 Diesel Dump Truck 4x2 [01/15 - 12/16]
• FOTON 45.110 2.8L ISF 2.8 Diesel Platform/Chassis 4x2 [01/14 - 12/16]
• FOTON AUMARK 3.50 AK 2.8L ISF2.8-S4107P Euro 3/Euro 4 4x2 [01/12 ON]
• FOTON AUMARK BJ1039V4JD3-F 107 2.8L ISF2.8-S4107P Euro 3/Euro 4 4x2 [01/12 ON]
• FOTON AUMARK BJ1049V8JD6-F1 148 2.8L ISF2.8-S4148T Euro 3/Euro 4 4x2 [01/12 ON]
• FOTON SAUVANA 2.8L Diesel 130kW SUV AWD / RWD [03/17 ON]
• FOTON TUNLAND P201 D / E7 / S 2.8L Diesel Euro 3-5 Utility AWD / RWD [06/12 ON]
• FOTON VIEW D / G7 BJ 2.8L Diesel Van / Bus RWD [01/14 ON]

Note: Some applications require manual or automatic transmission-specific configurations.
