OEX Starter Motor 12V 10Th CW Denso Style DXS636

OEX Starter Motor 12V 10Th CW Denso Style DXS636

$415.00
$415.00 $460.00
Tax included. Shipping calculated at checkout.
Expected delivery date:
07 Jul Usually delivered in 2-3 days.

Description

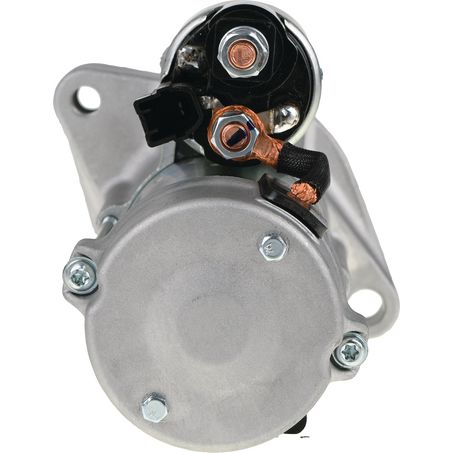

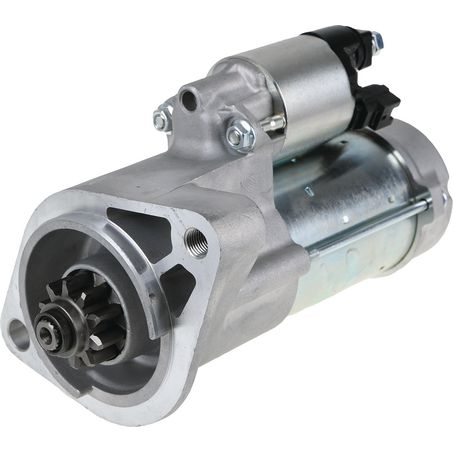

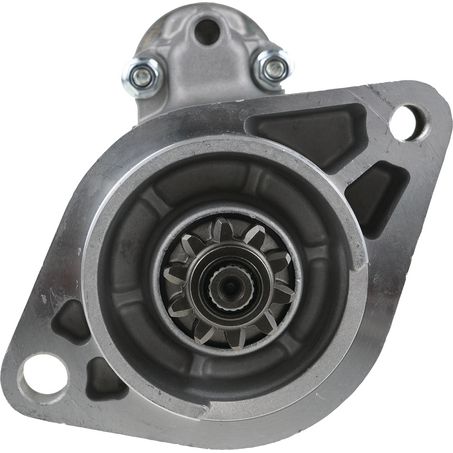

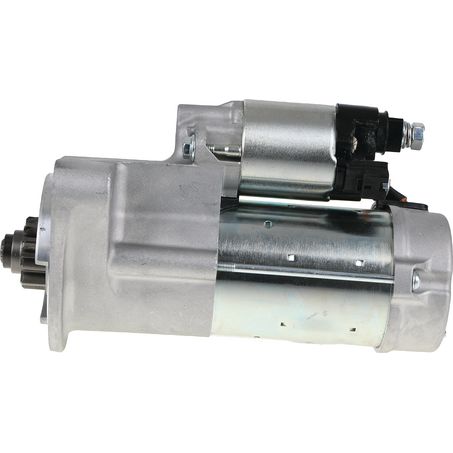

OEX Starter Motor 12V 10Th CW Denso Style DXS636

The OEX DXS636 Starter Motor is a high-quality 12V starter designed for Denso-style 10-tooth applications. Featuring clockwise (CW) rotation and dry clutch construction, this starter motor is a reliable solution for Toyota buses, vans, SUVs, and utility vehicles. It is engineered to deliver consistent starting performance for modern diesel engines, including 1GD-FTV turbo diesel variants.

Compatible with various Toyota models, this unit is also interchangeable with 9th Valeo units, offering flexibility in replacements.

Key Features

  • 10-tooth pinion gear – precise engagement for reliable starting
  • Clockwise (CW) rotation – ensures correct engine cranking
  • Denso-style design – direct OE replacement
  • Dry clutch – reduces wear and extends service life
  • High torque output – 1.8kW power rating
  • 2-hole mounting configuration – secure installation
  • Brand new unit – not remanufactured
  • Interchangeable with 9th Valeo unit – offers replacement flexibility
  • Weight: 3.72kg

Specifications

  • Voltage: 12V
  • Power Rating: 1.8kW
  • Number of Teeth: 10
  • Rotation: CW
  • Flange Diameter: 82.5mm
  • Mount Centres A: 130mm
  • Mount Hole Diameter: M12x1.25 / 13mm
  • Overall Length: 230mm
  • Pinion Diameter: 37.5mm
  • Pinion at Rest: 17.5mm
  • Suits Unit Make: Denso
  • Starter Mount Type: 2 Hole
  • Wet / Dry Clutch: Dry
  • Unit Type: New

Vehicle Applications

  • Toyota Coaster GDB60, GDB70, GDB80 – 2.8L 1GD-FTV Turbo Diesel Bus RWD [11/21 ON]
  • Toyota Commuter / Hiace GDH322 VI – 2.8L 1GD-FTV Turbo Diesel Bus RWD [05/19 ON]
  • Toyota Fortuner / Hilux SW4 GUN156 D – 2.8L 1GD-FTV Turbo Diesel SUV AWD [05/15 ON]
  • Toyota Fortuner / Hilux SW4 GUN156 D – 2.8L 1GD-FTV Turbo Diesel SUV AWD [06/20 ON]
  • Toyota Granvia GDH303 – 2.8L 1GD-FTV Turbo Diesel MPV RWD [05/19 ON]
  • Toyota Hiace GDH201 V D / GDH206, GDH226 V D – 2.8L 1GD-FTV Turbo Diesel Van [11/17 ON]
  • Toyota Hilux GUN112, GUN122, GUN123, GUN125, GUN126 – 2.4L / 2.8L 1GD-FTV / 2GD-FTV Turbo Diesel Utility, Cab Chassis & Hybrid AWD [05/15 ON – 03/24 ON]

Note: Some applications require confirmation by OE number, particularly for start-stop vehicles. Always check fitment before installation.

Performance & Reliability

The DXS636 delivers dependable starting performance for modern Toyota diesel engines. Its Denso-style 10-tooth design, CW rotation, and dry clutch construction ensure reliable cranking under all operating conditions. Ideal for buses, vans, SUVs, and utility vehicles, this starter motor reduces downtime and maintenance costs.

Why Choose OEX?

  • Trusted aftermarket brand for Toyota and Denso applications
  • Direct-fit replacement for OE and Valeo units
  • High-quality construction ensures long service life
  • Supported by a one-year warranty
