OEX Starter Motor 12V 10Th CW Lucas Style LXS9308

OEX Starter Motor 12V 10Th CW Lucas Style LXS9308

$639.17
$639.17 $732.00
Tax included. Shipping calculated at checkout.

Description

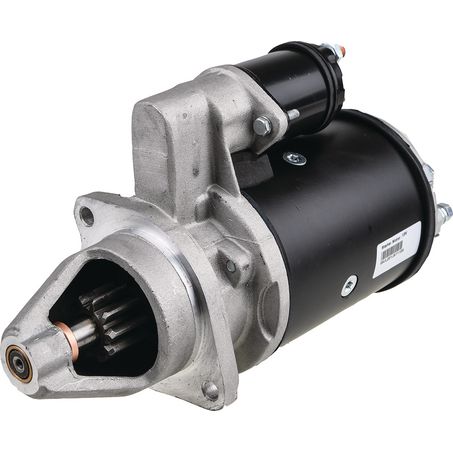

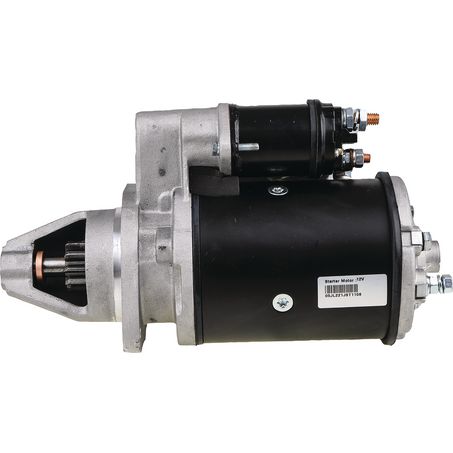

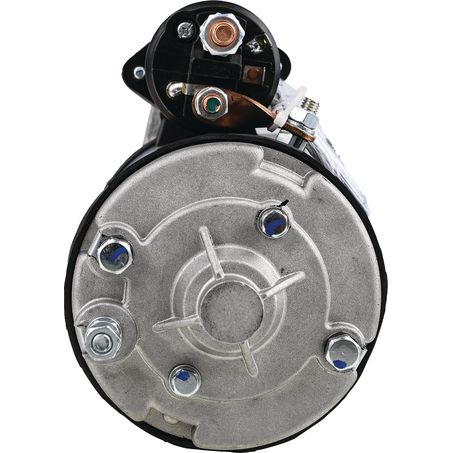

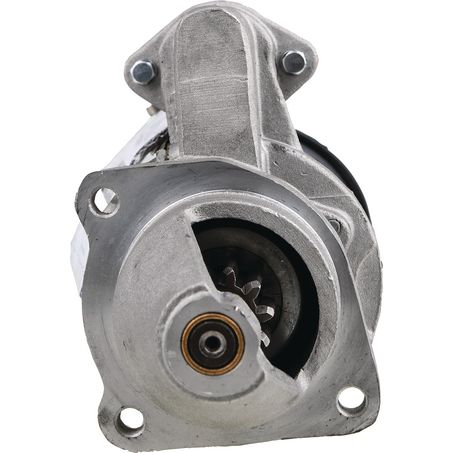

Starter Motor 12V 10Th CW Lucas Style – LXS9308

The OEX Starter Motor LXS9308 is a heavy-duty 12V Lucas-style starter designed for agricultural and industrial diesel engines. With a 10-tooth CW pinion and 2.8kW power rating, it ensures reliable engine starting even under high-load conditions. Built for tractors, headers, and other heavy machinery, this starter motor provides long-term durability and OE-style fitment.

Key Features

  • High torque 12V, 10-tooth pinion – robust starting for diesel engines
  • CW rotation – smooth and reliable engagement
  • Lucas-style design – direct replacement for OE units
  • 3-hole mounting – stable and secure installation
  • Heavy-duty construction – built for industrial and agricultural applications
  • New unit – not remanufactured
  • 1-year warranty

Specifications

  • Voltage: 12V
  • Rotation: CW
  • Number of Teeth: 10
  • Flange Diameter: 89mm
  • Mount Centres A: 127mm
  • Mount Centres B: 90mm
  • Mount Centres C: 90mm
  • Mount Hole Diameter: 11mm
  • Overall Length: 330mm
  • Pinion Diameter: 40mm
  • Pinion at Rest: 47mm
  • Starter Mount Type: 3 Hole
  • Clutch Type: Dry
  • Suits Unit Make: Lucas
  • Power Rating: 2.8kW
  • Weight: 12.42kg

Compatible Vehicles / Equipment

  • CASE IH 3220 2.9L D179 Diesel Tractor [01/94 - 12/97]
  • CASE IH 395 2.5L D-155 Diesel Tractor RWD [01/91 - 12/93]
  • CASE IH 4210 3.9L D239 Diesel Tractor RWD [01/94 - 12/97]
  • CASE IH 4230 4.4L D269 Diesel Tractor RWD [01/94 - 12/97]
  • CASE IH 4240 4.4L DT-268 Diesel Tractor RWD [01/94 - 12/97]
  • CASE IH 433 2.5L D-155 Diesel Tractor [01/86 ON]
  • CASE IH 533/A 2.5L D-155 Diesel Tractor [01/86 - 12/90]
  • CASE IH 540 2.5L D-155 Diesel Tractor [01/88 ON]
  • CASE IH 633A 2.9L D179 Diesel Tractor [01/86 - 12/90]
  • CASE IH 640A 2.9L D179 Diesel Tractor [01/86 ON]
  • CASE IH 695 3.9L D239 Diesel Tractor [01/91 - 12/94]
  • CASE IH 744 3.9L 4-390 Diesel Tractor [01/74 - 01/86]
  • CASE IH CX 710 2.9L D179 Diesel Header [01/01 ON]
  • CASE IH CX 810 2.9L D179 Diesel Header [01/01 ON]
  • CASE IH V433, V533, V633 series Tractors [01/86 - ON]
  • INTERNATIONAL ACCO 1730C / 1830C / 1830D 5.9L D358 Diesel Platform/Chassis [01/83 - 12/88]

Option offered is a 2.8kW Lucas-style unit for these models.
