OEX Starter Motor 12V 12Th CW 35MT Delco Style DXS659

OEX Starter Motor 12V 12Th CW 35MT Delco Style DXS659

$1,374.94
$1,374.94 $1,577.00
Tax included. Shipping calculated at checkout.
Expected delivery date:
07 Jul Usually delivered in 2-3 days.

Description

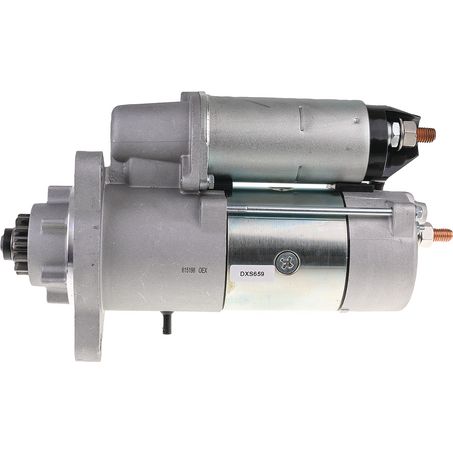

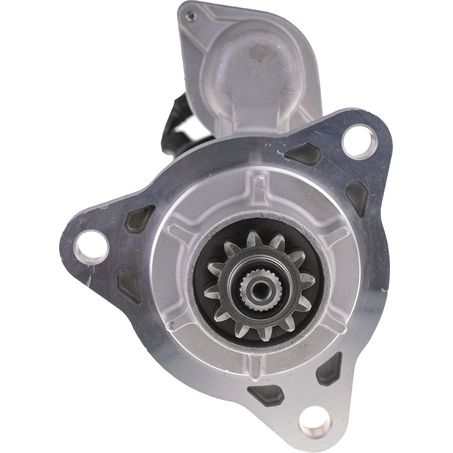

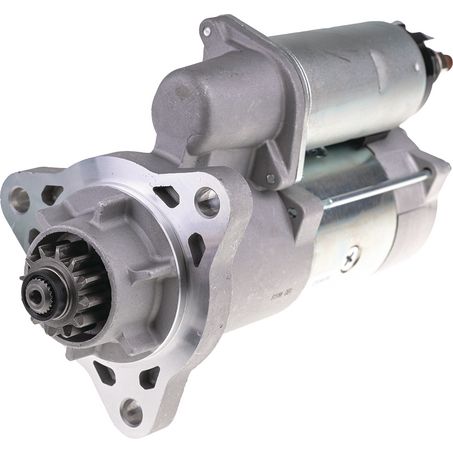

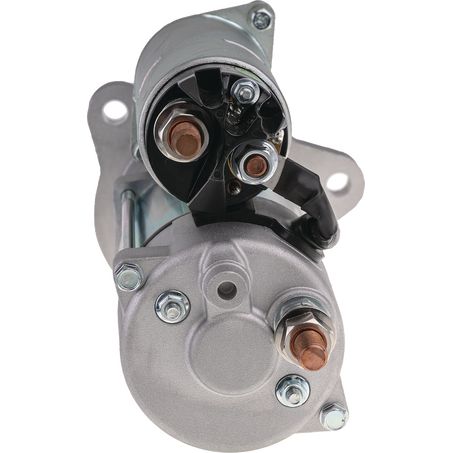

OEX Starter Motor 12V 12Th CW 35MT Delco Style DXS659

The OEX DXS659 Starter Motor is a high-performance 12V unit featuring a 12-tooth pinion with clockwise (CW) rotation, designed to fit Delco 35MT-style starters. Built for heavy-duty tractors, combines, and commercial trucks, this starter motor provides reliable cranking power for diesel engines under demanding conditions.

Its robust construction, dry clutch design, and precision mounting ensure long-lasting operation, making it ideal for agricultural, industrial, and commercial applications.

Key Features

  • 12-tooth pinion gear – precise engagement for reliable starting
  • Clockwise (CW) rotation – engineered for correct operation
  • 35MT Delco-style design – direct OE replacement
  • Dry clutch – reduces wear for long-term durability
  • High torque output – 4.3kW power rating for heavy-duty engines
  • 3-hole mounting configuration – secure and precise installation
  • Brand new unit – not remanufactured
  • Heavy-duty construction – ideal for tractors, combines, and trucks
  • Weight: 10.16kg

Specifications

  • Voltage: 12V
  • Power Rating: 4.3kW
  • Number of Teeth: 12
  • Rotation: CW
  • Flange Diameter: 92mm
  • Mount Centres A/B/C: 127mm
  • Mount Hole Diameter: 13mm
  • Starter Mount Type: 3 Hole
  • Overall Length: 355mm
  • Pinion Diameter: 46mm
  • Pinion at Rest: 48mm
  • Series: 35MT
  • Suits Unit Make: Delco
  • Wet / Dry Clutch: Dry
  • Insulated Return: No
  • Unit Type: New

Vehicle Applications

Agricultural & Industrial Engines:

  • AGCO Allis 9435 / 9455 – 7.6L Series 40E Diesel Tractors
  • Case IH 1420 / 1440 / 1440D / 1460 / 1460D / 1470 / 1480 / 1482 / 6788 / I-6588 – Diesel Combines & Tractors
  • Cummins ISC 8.3 / ISL 8.9 – Standalone Diesel Engines
  • Ford Cargo 1621 / 2419 – 10.4L Diesel Trucks & Chassis
  • Western Star 4700 4764SB / 4784SB – 8.8L ISL Turbo Diesel Trucks

Notes: Some applications include integrated IMS or require checking for nose cone fitment. Always confirm OE compatibility before installation.

Performance & Reliability

The DXS659 starter motor delivers dependable starting under heavy load and harsh conditions. Its 35MT Delco-style design ensures OE-level fitment, while the durable dry clutch extends service life. Suitable for high-demand agricultural, industrial, and commercial engines, this starter motor reduces downtime and maintenance costs.

Why Choose OEX?

  • Trusted aftermarket brand for tractors, trucks, and industrial equipment
  • Direct-fit replacement for Delco 35MT starter units
  • Engineered for high reliability in commercial applications
  • Supported by a one-year warranty for peace of mind
