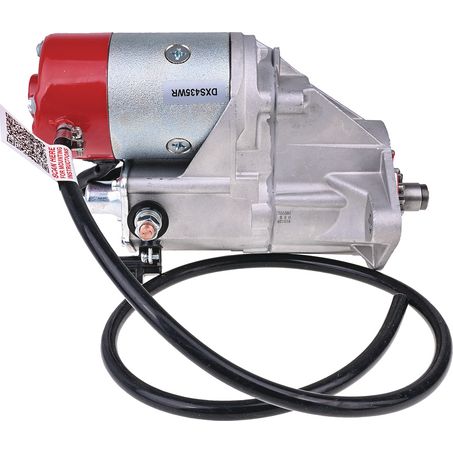

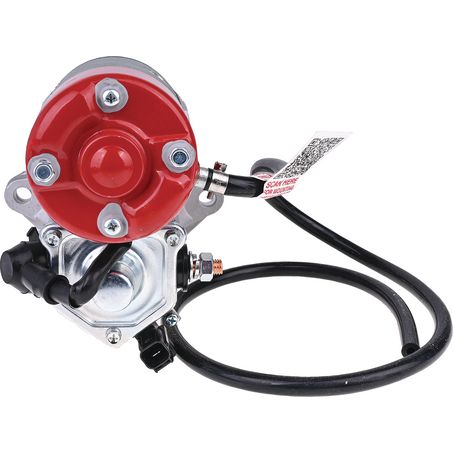

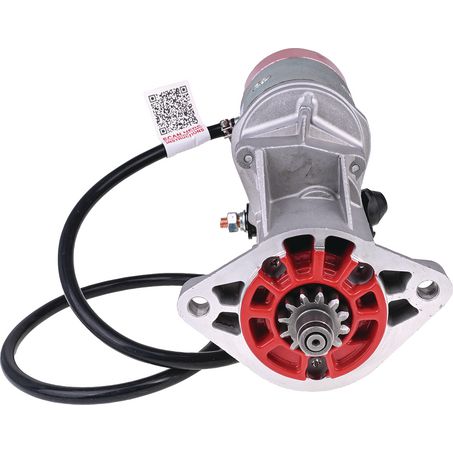

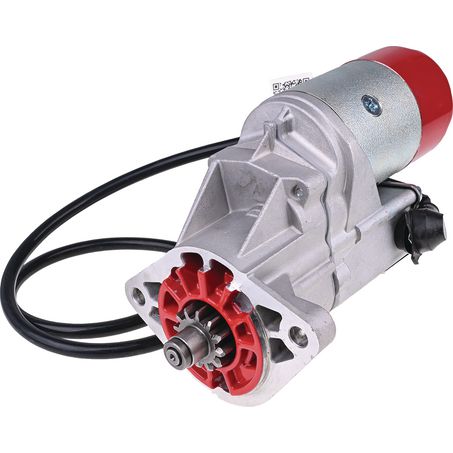

• OEX Starter Motor 12V 12Th CW - Water Resistant DXS435WR
1 4

DXS435WR

OEX Starter Motor 12V 12Th CW - Water Resistant DXS435WR

OEX Starter Motor 12V 12Th CW - Water Resistant DXS435WR

$552.23
$552.23 $672.00
Tax included. Shipping calculated at checkout.
Expected delivery date:
07 Jul Usually delivered in 2-3 days.

Description

OEX Starter Motor 12V 12Th CW – Water Resistant – DXS435WR

The OEX Starter Motor DXS435WR is a robust 12V starter motor featuring a 12-tooth pinion and clockwise (CW) rotation, engineered with water-resistant protection. Designed as a direct replacement for Denso-style units, this starter motor delivers reliable cranking performance even in harsh environments, making it ideal for Toyota Land Cruiser applications.

Constructed with premium components and tested to strict quality standards, this unit ensures long-lasting performance, dependable engine starts, and durability under demanding driving conditions.

Key Features

* 12-tooth pinion gear – ensures smooth and precise engine engagement
* Clockwise (CW) rotation – matches OE specifications
* 2.5kW power output – high-performance cranking
* Water-resistant design – protects against moisture and harsh conditions
* Denso-style design – direct replacement for OE units
* 2-hole mounting configuration – secure and precise fitment
* Multi-fit start wire terminal – compatible with various wiring configurations
* Brand new unit – not remanufactured
* 3-year passenger / 1-year commercial warranty
* Follow included instructions – do not cut drain tube

Specifications

* Voltage: 12V
* Power Rating: 2.5 kW
* Rotation: CW
* Number of Teeth: 12
* Starter Mount Type: 2 Hole
* Flange Diameter: 90mm
* Mount Centres A: 142mm
* Mount Hole Diameter: 13mm
* Pinion Diameter: 45mm
* Pinion at Rest: 16mm
* Overall Length: 290mm
* Weight: 8.52kg
* Suits Unit Make: Denso
* OEM Number: DXS435
* Unit Type: New

Vehicle Applications

Commonly fitted to:

* Toyota Land Cruiser HDJ100 / HDJ101K 4.2L 1HD-FTE Turbo Diesel SUV AWD (1998 – 2007)
* Toyota Land Cruiser HDJ78 / HDJ78R / HDJ79R 4.2L 1HD-FT Diesel SUV & Pickup (2001 – 2007)
* Toyota Land Cruiser HDJ80 / HDJ81V / HDJ81 4.2L 1HD-T / 1HD-FT Diesel SUV AWD (1990 – 1997)
* Toyota Land Cruiser HZJ70RV / HZJ71V / HZJ75 / HZJ75RP / HZJ79R / HZJ80 / HZJ81 / PZJ77 Diesel SUV & Pickup (1990 – 1997)

✔ Will interchange with 11-tooth starter unit where applicable
✔ Fitted with multi-fit start wire terminal

Performance & Reliability

The DXS435WR starter motor is engineered for high-performance engine starting in both tough off-road and everyday driving conditions. Its water-resistant design protects internal components from moisture and dirt, ensuring long-term reliability. The precision-built pinion ensures smooth engagement, while the 2.5kW power output delivers strong cranking performance for heavy-duty diesel engines.

Why Choose OEX?

  • Trusted aftermarket brand across Australia & New Zealand
  • Designed for direct fitment and OE-level performance
  • Manufactured with high-quality components for durability
  • Built for heavy-duty diesel engines and challenging conditions
  • Backed by reliable warranty and nationwide support
