SKU:SMX019

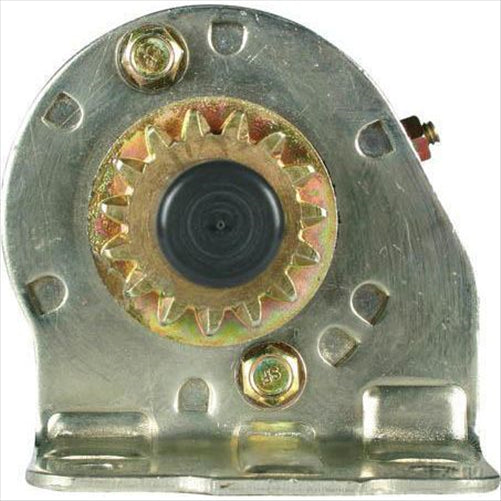

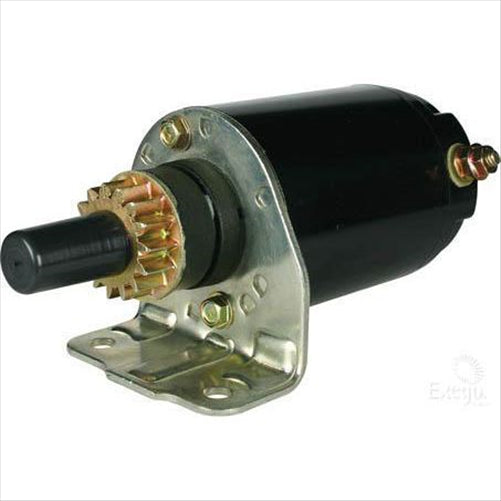

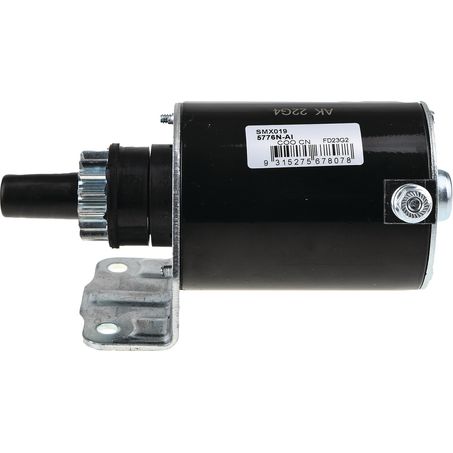

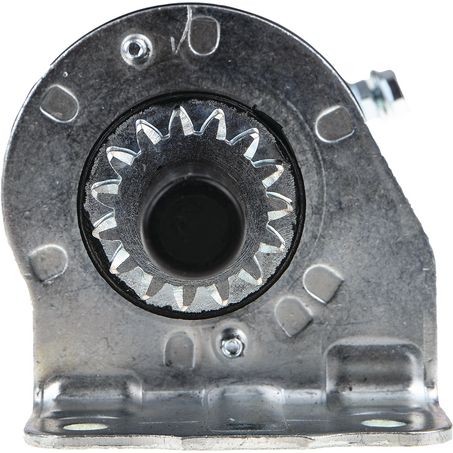

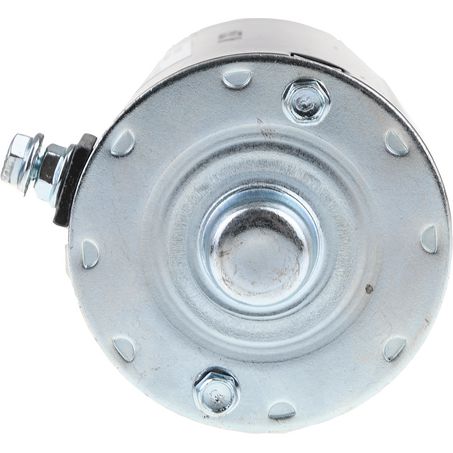

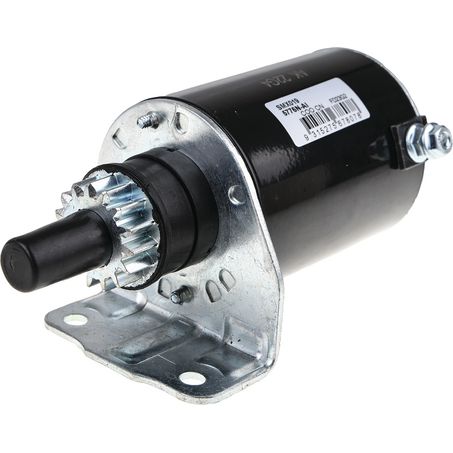

Starter Motor 12V 15Th CCW United Tech Style SMX019
Starter Motor 12V 15Th CCW United Tech Style SMX019
Couldn't load pickup availability
Description
Description
Part No. SMX019
Type STARTER MOTOR
Brand OEX
Unit of Measure EACH
Description OEX Starter Motor 12V 15Th CCW United Tech Style
Warranty 3yr Passenger 1yr Commercial
Flange Diameter 0mm
Mount Centres A 58mm
Mount Hole Diameter 8
Number of Teeth 15
Overall Length 184mm
Pinion at Rest 38mm
Pinion Diameter 38mm
Rotation CCW
Suits Unit Make United Technologies
Voltage 12
Weight 2.52kg
Item Type Starter Motor
New / Reman. New
Starter Mount Type Pad
Wet / Dry Clutch Dry
Features • To Suit: John Deere / Toro Greenmaster with Vanguard 16hp, 18hp engine
WHAT IT FITS
ARCTIC CAT SBS 1000 0.48L Vanguard Carb 2cyl 1sp Auto CVT Snow Mobile [01/02 ON]
DITCH WITCH C16X 0.48L Vanguard 16HP Carb 2cyl Trencher [01/18 ON]
JOHN DEERE HYDRO BUNKER & RAKE 1200 0.48L Vanguard 16HP Carb 2cyl Lawn Tractor [01/80 ON]
JOHN DEERE LT166 0.48L Vanguard 16HP Carb 2cyl Lawn Tractor [01/98 - 12/01]
JOHN DEERE LT170 0.48L Vanguard 16HP Carb 2cyl Lawn Tractor [01/02 - 12/02]
JOHN DEERE LTR166 0.48L Vanguard 16HP Carb 2cyl Lawn Tractor [01/99 - 12/01]
JOHN DEERE SST16 0.48L Vanguard 16HP Carb 2cyl Lawn Tractor [01/00 - 12/03]
JOHN DEERE SST18 0.57L Vanguard 18HP Carb 2cyl Lawn Tractor [01/00 - 12/03]
KANGA KK216V 0.48L Vanguard 16HP Carb 2cyl Skid Steer Loader [01/17 ON]
KANGA TK216V 0.48L Vanguard 16HP Carb 2cyl Compact Track Loader [01/17 ON]
TORO GREENMASTER 3050 0.57L Vanguard 18HP Carb 2cyl Lawn Tractor [01/97 - 12/09]
TORO GREENMASTER 3100 0.57L Vanguard 18HP Carb 2cyl Lawn Tractor [01/92 - 12/09]
TORO GREENMASTER 3150 0.57L Vanguard 18HP Carb 2cyl Lawn Tractor [01/02 - 12/09]
TORO GROUNDS PRO 2000 0.48L Vanguard 16HP Carb 2cyl Lawn Tractor [01/98 - 12/99]
TORO INFIELD PRO 3040 0.48L Vanguard 16HP Carb 2cyl In Field Groomer [01/06 - 12/09]
TORO INFIELD PRO 5040 0.57L Vanguard 18HP Carb 2cyl In Field Groomer [01/06 - 12/09]
TORO SAND PRO 2020 0.48L Vanguard 16HP Carb 2cyl In Field Groomer [01/97 - 12/09]
TORO SAND PRO 3020 0.48L Vanguard 16HP Carb 2cyl In Field Groomer [01/97 - 12/06]
TORO TWISTER 1400 0.48L Vanguard 16HP Carb 2cyl Utility Vehicle [01/02 - 12/02]
TORO TWISTER 1600 0.48L Vanguard 16HP Carb 2cyl Utility Vehicle [01/02 - 12/08]
