OEX Starter Motor 12V 9Th CW Bosch Style BXS9055

OEX Starter Motor 12V 9Th CW Bosch Style BXS9055

$268.87
$268.87 $314.00
Tax included. Shipping calculated at checkout.

Description

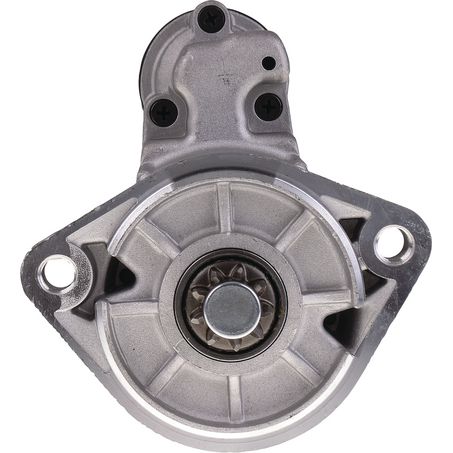

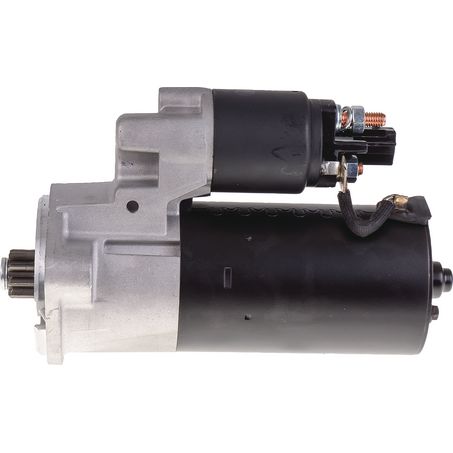

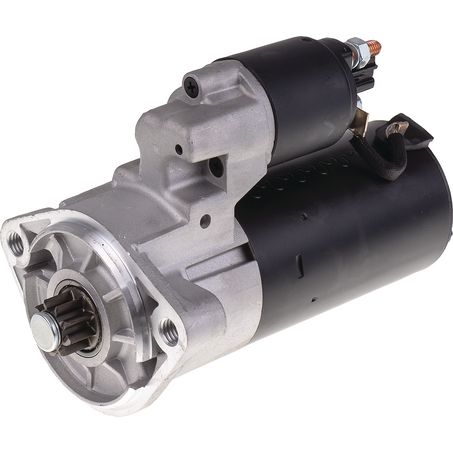

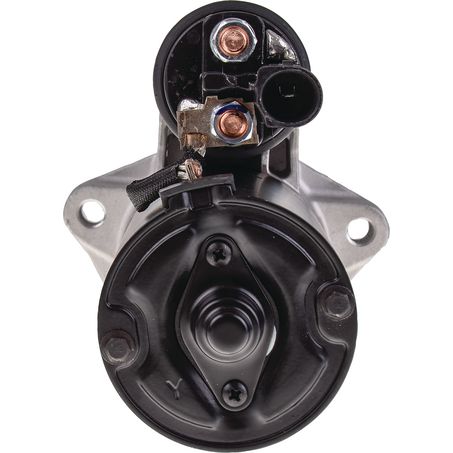

OEX Starter Motor 12V 9Th CW Bosch Style – BXS9055

The OEX Starter Motor BXS9055 is a reliable 12‑volt, 9‑tooth clockwise (CW) Bosch-style starter motor, engineered for heavy-duty Volkswagen Crafter vans, buses, and cab chassis. Designed for vehicles without start-stop systems, it provides consistent engine cranking power and dependable starting performance.

Built from high-quality components and tested to meet strict quality standards, this starter motor offers long service life and a direct replacement for Bosch OE units.

Key Features

  • High-performance 12V starter – reliable cranking for VW diesel engines
  • Bosch-style 9-tooth CW design – direct OE replacement
  • Dry clutch operation – ensures efficient power transfer and durability
  • 2-hole mount design – simple and secure installation
  • Brand new unit – not remanufactured
  • Warranty: 3-year passenger / 1-year commercial

Specifications

  • Voltage: 12V
  • Number of Teeth: 9
  • Rotation: CW (Clockwise)
  • Flange Diameter: 83mm
  • Mount Centres A: 105mm
  • Mount Hole Diameter: M12x1.75
  • Overall Length: 234mm
  • Pinion at Rest: 21mm
  • Pinion Diameter: 25.5mm
  • Power Rating: 2.2kW
  • Starter Mount Type: 2 Hole
  • Wet / Dry Clutch: Dry
  • Unit Type: Starter Motor
  • New / Reman: New
  • Weight: 4.06kg

Vehicle Applications

Commonly fitted to Volkswagen Crafter (2.5L Turbo Diesel, RWD, non start-stop):

  • Bus: 30–35 / 30–50 Series, 65–120kW, 5-cylinder SOHC 10v [04/2006 – 07/2013]
  • Van: 30–50 Series, 65–120kW, 5-cylinder SOHC 10v [04/2006 – 07/2013]
  • Cab Chassis: 30–50 Series, 65–120kW, 5-cylinder SOHC 10v [04/2006 – 07/2013]

(Always confirm compatibility with engine code or part number before purchase.)

Performance & Reliability

The BXS9055 starter motor is engineered for reliable engine starts in Volkswagen diesel applications. Its Bosch-style CW design, dry clutch, and durable construction ensure dependable performance for commercial and passenger vehicles.

Why Choose OEX?

  • Trusted brand across Australia & New Zealand
  • Direct OE-style replacement for Bosch starter motors
  • Designed for long-term durability in commercial vehicles
  • Backed by reliable warranty support
