Description

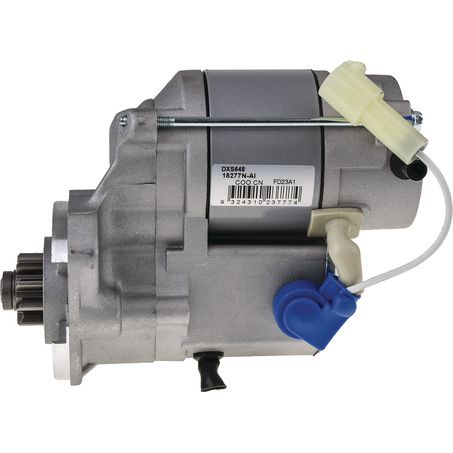

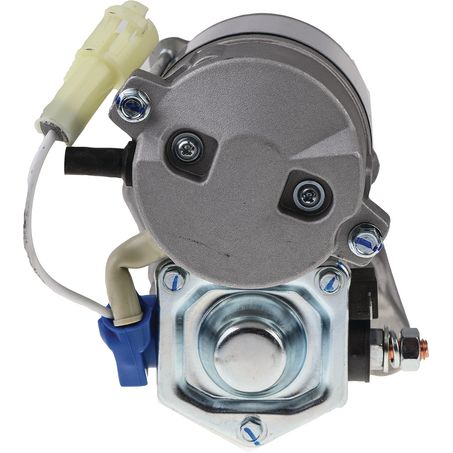

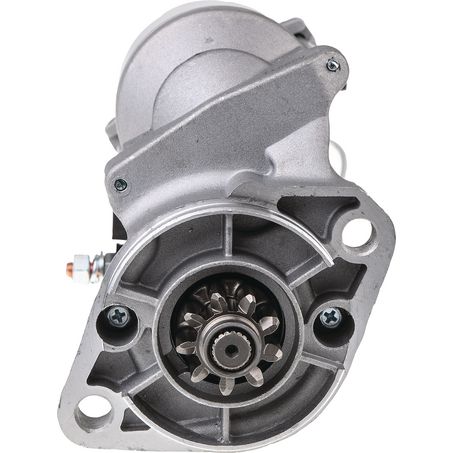

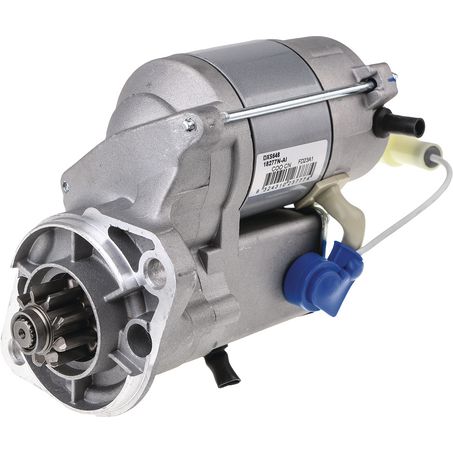

OEX Starter Motor 12V 9Th CW Denso Style – DXS648

The OEX DXS648 is a reliable 12V starter motor with 9 teeth, designed for Denso-style mounting. Built for commercial refrigeration units and diesel generators, this starter motor ensures smooth and dependable engine engagement for a wide range of Carrier units.

Key Features

  • High-performance 12V starter motor – ideal for diesel applications
  • 9-tooth pinion – precise engagement with Denso-style drives
  • Clockwise (CW) rotation – standard fit for compatible Denso mounts
  • 2-hole mount type – easy installation
  • Flange-to-rear measurement: 160 mm
  • Heavy-duty construction – ensures long service life
  • Brand new unit – not remanufactured
  • Warranty: 1 year

Specifications

  • Voltage: 12 V
  • Rotation: CW
  • Pinion Teeth: 9
  • Flange Diameter: 82 mm
  • Mount Hole Diameter: 11 mm
  • Overall Length: 192 mm
  • Pinion at Rest: 24 mm
  • Pinion Diameter: 34 mm
  • Power Rating: 1.4 kW
  • Suits Unit Make: Denso
  • Mount Centres (C to C): 105 mm
  • Starter Mount Type: 2 Hole
  • New / Reman.: New
  • Weight: 3.66 kg

Applications

Compatible with Carrier refrigeration units and generators, including:

  • Carrier Extra NDA / NDM / NDF Series – 1.9L to 2.2L CT4 Diesel [1996–ON]
  • Carrier Generator RG15 / UG15 – 2.2L CT4 Diesel [1995–ON]
  • Carrier Genesis TM / TR Series – 2.2L CT4 Diesel [1995–ON]
  • Carrier Phoenix R-22 / ULTRA / XL / XTRA / NDM Series – 2.2L CT4 Diesel [1994–ON]
  • Carrier Transcold Eagle – 2.2L CT4 Diesel [1983–ON]
  • Carrier Ultima 53 – 2.2L CT4 Diesel [1996–ON]

⚠️ Note: Always verify unit model and engine type before installation. Designed for Denso-style mounting and commercial refrigeration applications.
