OEX Starter Motor 12V 9Th CW Hitachi Style - Water Resistance HXS076WR

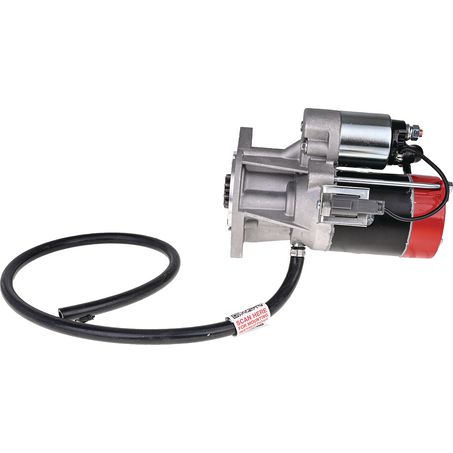

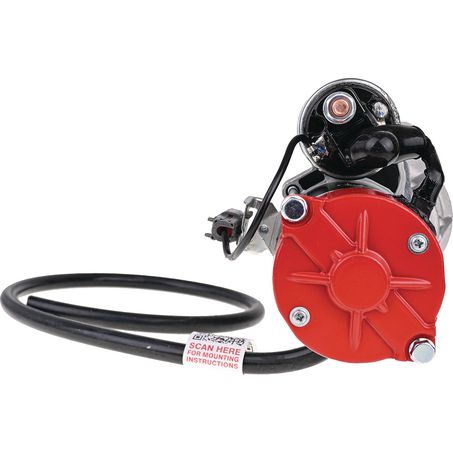

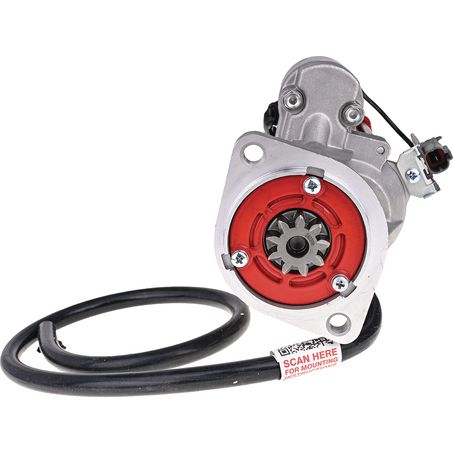

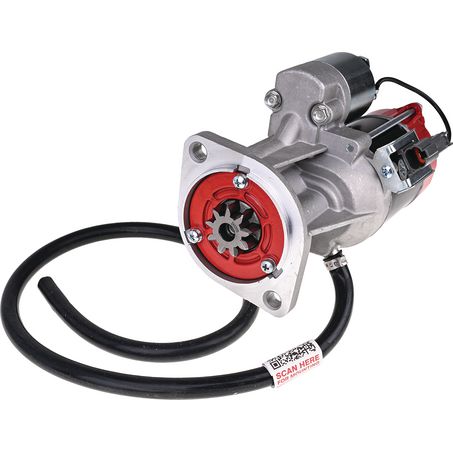

OEX Starter Motor 12V 9Th CW Hitachi Style – HXS076WR (Water Resistant)

The OEX Starter Motor HXS076WR is a heavy-duty 12V, 2.5kW starter motor designed as a direct replacement for Hitachi-style units. Featuring a water-resistant design, this starter motor is ideal for vehicles operating in harsh environments, including off-road and wet conditions.

Engineered with high-quality components and tested to meet strict performance standards, this unit ensures reliable starting power, enhanced durability, and long service life for both passenger and commercial applications.

Key Features

* 2.5kW high-performance output – strong and reliable cranking power
* Water-resistant design – ideal for off-road and harsh conditions
* Hitachi-style configuration – direct OE replacement
* Clockwise (CW) rotation – ensures proper engine engagement
* 2-hole mount configuration – easy installation
* Brand new unit – not remanufactured
* 3-year passenger / 1-year commercial warranty – dependable coverage

Specifications

* Voltage: 12V
* Power Rating: 2.5kW
* Number of Teeth: 9
* Flange Diameter: 82mm
* Mount Centres A: 110mm
* Mount Hole Diameter: 11mm
* Overall Length: 214mm
* Pinion Diameter: 36mm
* Pinion at Rest: 11mm
* Rotation: CW
* Suits Unit Make: Hitachi
* Starter Mount Type: 2 Hole
* OEM Number: HXS076
* Weight: 4.68kg
* Unit Type: New

Vehicle Applications

Commonly fitted to:

* Nissan Patrol / Patrol GR / Safari (GU / Y61 IV DTi) 3.0L ZD30DDTi Turbo Diesel SUV AWD (05/2000 →)
* Nissan Patrol / Patrol GR / Safari TY61 IV 3.0L ZD30DDTi Turbo Diesel Cab Chassis AWD (09/2007 – 12/2016)

(Always confirm compatibility using OE number or vehicle details before purchase.)

Important Installation Notes

* Follow all included installation instructions
* Do not cut the drain tube – essential for maintaining water resistance

Performance & Reliability

The HXS076WR starter motor is specifically engineered for demanding environments where water exposure and harsh conditions are common. Its sealed, water-resistant construction helps protect internal components, ensuring consistent starting performance and extended service life even in off-road or heavy-duty applications.

Why Choose OEX?

• Trusted aftermarket brand across Australia & New Zealand
• Designed for direct fitment and OE-level performance
• Built for harsh environments and long-term durability
• Backed by comprehensive warranty and proven reliability
