HXS101

OEX Starter Motor 24V 11Th CW Hitachi Style HXS101

OEX Starter Motor 24V 11Th CW Hitachi Style HXS101

$618.24
$618.24 $709.00
Tax included. Shipping calculated at checkout.
Expected delivery date:
08 Jul Usually delivered in 2-3 days.

Description

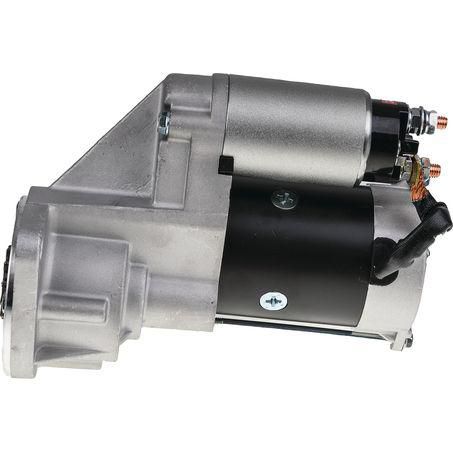

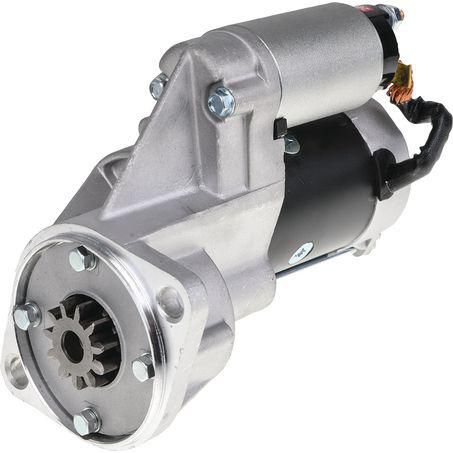

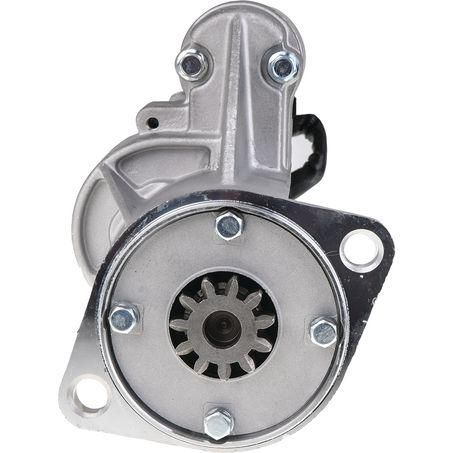

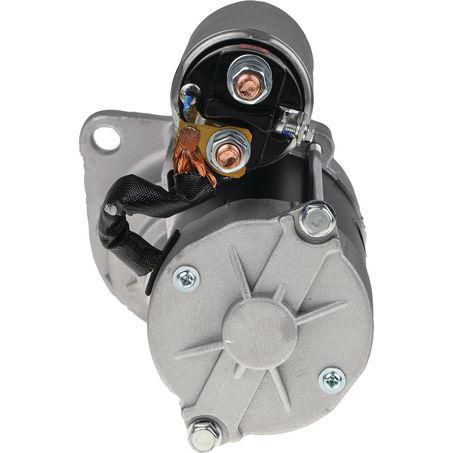

OEX Starter Motor 24V 11Th CW Hitachi Style – HXS101

The OEX Starter Motor HXS101 is a heavy-duty 24V starter motor featuring an 11-tooth pinion and clockwise (CW) rotation, designed as a direct replacement for Hitachi-style units. Built to deliver powerful and consistent cranking performance, this starter motor is ideal for demanding applications in construction, agricultural, and industrial equipment.

Manufactured with premium-grade materials and tested to meet strict performance standards, this unit ensures durability, reliability, and long service life in tough working environments.

Key Features

* 11-tooth pinion gear – ensures strong and reliable engagement
* 24V high-power system – suitable for heavy-duty equipment
* 3.7kW output – delivers excellent cranking performance
* Clockwise (CW) rotation – designed for correct starter operation
* Hitachi-style design – direct OE replacement fitment
* 2-hole mounting configuration – secure installation
* Heavy-duty construction – built for harsh working conditions
* Brand new unit – not remanufactured
* 1-year warranty

Specifications

* Voltage: 24V
* Power Rating: 3.7kW
* Number of Teeth: 11
* Rotation: CW (Clockwise)
* Flange Diameter: 95mm
* Mount Hole Diameter: 13mm
* Mount Centre to Centre: 120mm
* Starter Mount Type: 2 Hole
* Overall Length: 230mm
* Pinion Diameter: 40mm
* Pinion at Rest: 10mm
* Suits Unit Make: Hitachi
* Weight: 5.6kg
* Unit Type: New

Vehicle / Equipment Applications

Commonly fitted to:

Case IH Excavators:

* Case IH CX130B 3.0L AI-4JJ1X Diesel (01/2011 →)
* Case IH CX130C 3.0L AM-4JJ1X Diesel (01/2015 →)
* Case IH CX135 3.0L AI-4JJ1X Diesel (01/2010 →)
* Case IH CX135SR 4.3L 4BG1T Diesel (01/2005 – 12/2007)
* Case IH CX145CSR 3.0L AM-4JJ1X Diesel (01/2012 →)
* Case IH CX160B / CX160C 3.0L 4JJ1 / 4JJ1X Diesel (2008 →)

Hitachi Excavators:

* Hitachi ZX135US-3 / ZX135US-5 3.0L 4JJ1X Diesel (2012 →)
* Hitachi ZX160LC-3 / ZX160LC-5 3.0L 4JJ1X Diesel (2007 →)

John Deere Equipment:

* John Deere 135D 3.0L 4JJ1 Diesel (01/2008 →)
* John Deere 225D LC 5.2L 4HK1 Diesel (01/2008 →)

Sakai Equipment:

* Sakai GW750-2 3.0L 4JJ1 Diesel Road Roller (01/2012 →)

* Note: Always confirm compatibility using part number and machine specifications before purchase.

Performance & Reliability

The HXS101 starter motor is engineered for heavy-duty performance, providing strong and consistent starting power for large diesel engines. Its high-output motor and robust internal components ensure reliable engagement even in demanding environments such as construction sites and industrial operations.

Designed to withstand harsh conditions, it delivers dependable performance, reduced downtime, and extended service life.

Why Choose OEX?

  • Trusted aftermarket brand across Australia & New Zealand
  • Designed for direct fitment and heavy-duty OE-level performance
  • Built using high-quality materials for maximum durability
  • Backed by reliable warranty support and proven field performance
