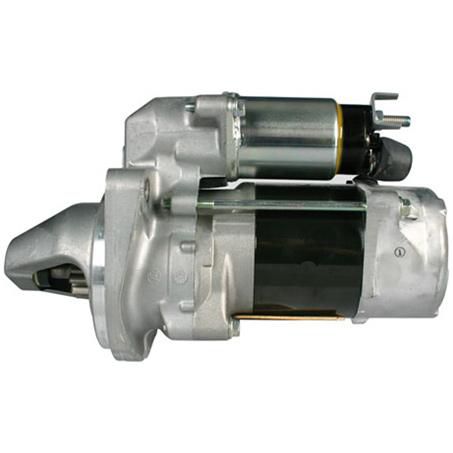

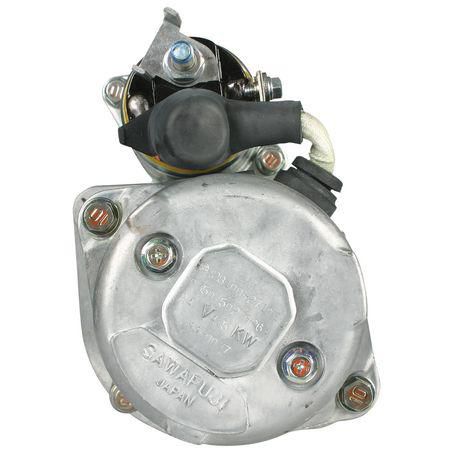

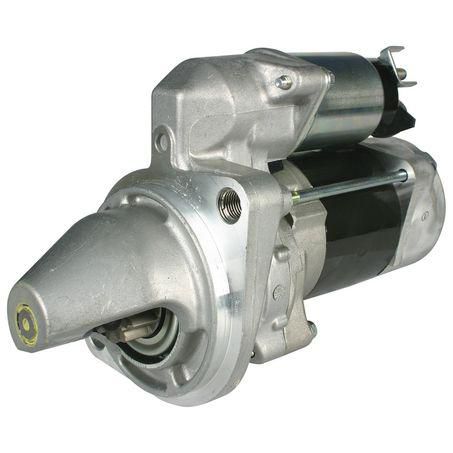

OEX Starter Motor 24V 11Th CW Sawafuji Style SXS713

Starter Motor 24V 11Th CW Sawafuji Style – SXS713

The OEX Starter Motor SXS713 is a heavy-duty 24V, 4.5kW starter motor designed as a direct replacement for Sawafuji-style units used in trucks, buses, and heavy commercial diesel applications. Built for maximum cranking performance, this starter delivers strong and reliable starting power in demanding high-compression diesel engines.

Engineered with robust internal components and tested to meet strict OE standards, the SXS713 ensures dependable operation, long service life, and consistent performance in heavy-duty transport and industrial environments.

Key Features

• 24V high-torque starter motor – designed for heavy diesel applications
• 4.5kW output power – strong cranking performance for large engines
• Sawafuji-style design – direct OE replacement fitment
• 11-tooth pinion gear – ensures secure flywheel engagement
• Clockwise (CW) rotation – correct operational direction
• 2-hole mounting system – stable and secure installation
• Heavy-duty construction – built for commercial transport use
• Brand new unit – not remanufactured
• 1-year warranty

Specifications

• Voltage: 24V
• Power Rating: 4.5kW
• Rotation: Clockwise (CW)
• Number of Teeth: 11
• Flange Diameter: 105mm
• Mount Centres A: 140mm
• Mount Hole Diameter: M14 / 15mm
• Nose Cone Length: 73mm
• Overall Length: 290mm
• Pinion Diameter: 40mm
• Pinion at Rest: 31mm
• Mount Type: 2 Hole
• Clutch Type: Dry
• Suits Unit Make: Sawafuji
• Weight: 8.26kg
• Unit Type: New

Vehicle Applications

Commonly fitted to:

• Hino 300 Series 816 / 916 / 716 Hybrid 4.0L N04C Diesel Platform/Chassis
• Daihatsu Delta XZU Series 4.6L–5.3L Diesel Cab Chassis (S05C / S05D / J05C engines)
• Toyota Toyoace XZU Series 4.0L N04C Diesel Cab Chassis (Sawafuji style applications)
• UD Nissan Diesel Condor MK / PK Series 7.7L J08E Diesel Platform/Chassis
• UD Trucks MK / PK Series Variants Heavy-duty diesel trucks

⚠️ Important: Some applications require nose cone compatibility (manual variants). Always confirm OEM number, mounting dimensions, and nose cone configuration before installation.

Performance & Reliability

The SXS713 starter motor is engineered for heavy-duty diesel engines that require high torque and consistent cranking performance. Its 24V system ensures strong starting capability even in large displacement engines, making it ideal for trucks, buses, and commercial fleet vehicles operating under demanding conditions.

Why Choose OEX?

• Trusted aftermarket brand across Australia & New Zealand
• Built for heavy-duty commercial and transport applications
• Designed for OE-style Sawafuji fitment
• High torque output for large diesel engines
• Reliable performance in fleet and industrial environments
• Backed by warranty support for peace of mind
