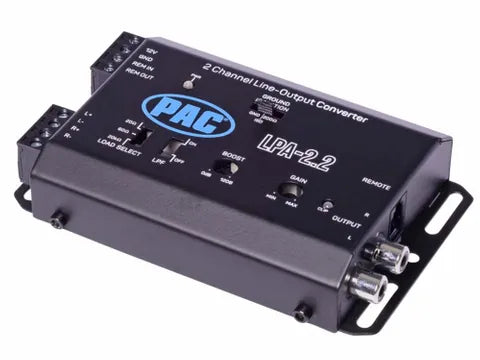

PAC LP7-2 L.O.C. Pro 2-Channel Active Line Output Converter | 40V / 400W with Auto Turn-On

Integrate a new amplifier into your factory audio system with professional-grade signal quality using the PAC LPA-2.2 LOCPRO Advanced. This sophisticated 2-channel active line output converter is engineered for high-power factory systems, capable of handling up to 40V (400W) of input signal to safely and cleanly derive RCA-level outputs for your aftermarket amplifier. It is the essential interface when your vehicle's stereo lacks dedicated RCA pre-outs.

Built into a durable steel housing with advanced noise isolation, the LPA-2.2 provides precise control over your audio signal. It features independent gain controls, a configurable low-pass filter and bass boost for subwoofer channels, multiple turn-on modes, and a clipping indicator to ensure optimal, distortion-free performance. This converter delivers the clean signal and installation flexibility required for a seamless, high-fidelity amplifier integration.

Key Features & Technical Benefits:

• High-Input Capability: Handles up to 40V (400W) input signals, making it safe and ideal for integrating with high-output factory amplified systems.

• Superior Noise Rejection: Features advanced noise isolation countermeasures and a steel housing to prevent ground loops and ensure a clean, noise-free signal output.

• Precision Signal Control: Includes single stereo gain controls, a configurable low-pass filter (LPF), and a +12dB bass boost (for channels 3/4) for tailoring the signal to your amplifier.

• Intelligent Automatic Turn-On: Offers selectable turn-on modes via DC offset sensing or remote wire, eliminating the need to find a separate ignition source.

• Professional Installation Flexibility: Features wide-range load selections (20Ω to 20kΩ), selectable ground options, and a removable quick-connect terminal block for versatile and secure wiring.

• Performance Safeguards: Equipped with a visual clip indicator and provides a robust 9.5V output voltage to drive your amplifier efficiently.

Technical Specifications:

• Channels: 2 Inputs / 2 Outputs (Convertible to 4-Channel Output)

• Max Input: 40V / 400W @ 20kΩ

• Output Voltage: 9.5V

• Bass Boost: +12dB (Channels 3/4)

• Low-Pass Filter: Adjustable (Channels 3/4)

• Turn-On Modes: DC Offset, Remote

• Housing: Steel

• Remote Control: Compatible with optional LPA-REM (sold separately)
