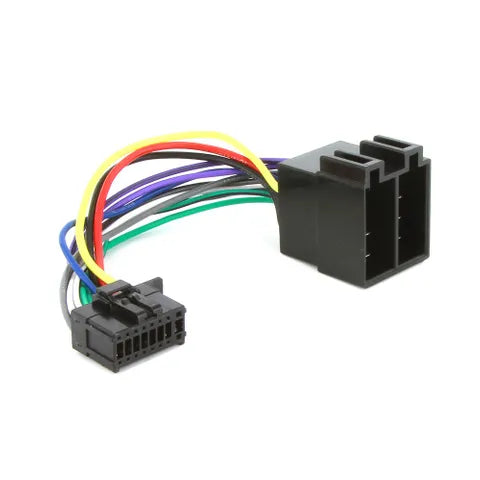

Pioneer Car Stereo Wiring Harness | 16-Pin OEM Plug Adapter for 2010+ Models

This is a dedicated wiring harness designed specifically for Pioneer car stereos from 2010 onward that utilize the proprietary 16-pin connector with side locking tabs. It converts Pioneer's unique plug into a universal male ISO 10487 connector, providing a standardized interface for easy integration into your vehicle's existing wiring or aftermarket installation setup.

Key Features & Specifications:

• Head Unit Compatibility: Engineered for Pioneer car stereos (2010 and later) that feature the specific 16-pin connector with side tabs.

• Connector Types:

  • Head Unit Side: Pioneer-specific 16-pin female plug with side locking tabs.

  • Output Side: 1 x Standard male ISO 10487 connector.

• Core Benefit: Serves as the essential link between your Pioneer stereo and the universal wiring standard. It allows you to connect the head unit directly to a compatible vehicle-specific harness (with a female ISO input) or to custom wiring, eliminating the need to cut or modify the Pioneer's original wiring.

• Plug-and-Play Design: Ensures correct pin alignment for all functions—power, ground, ignition, speakers, and illumination—through a simple, secure connection.

• Secure Locking Mechanism: The side-tab design ensures a positive, rattle-free connection to the head unit.

What's in the Box:

• 1 x Wiring harness adapter (Pioneer 16-pin plug to male ISO connector).

Installation Notes & Common Use:

• Typical Installation Path: To install a Pioneer stereo using this harness in a vehicle, you generally need two components:

  1. This Harness: (Pioneer 16-pin → Male ISO)

  2. Vehicle-Specific Harness: (Female ISO → Your Car's Factory Plugs)

• Replacement & Upgrades: Perfect for directly replacing an older Pioneer unit with a newer model that uses the same connector, allowing you to reuse an existing installation setup.

• Verify Compatibility: Confirm that your specific Pioneer model uses this exact 16-pin side-tab connector before purchase
