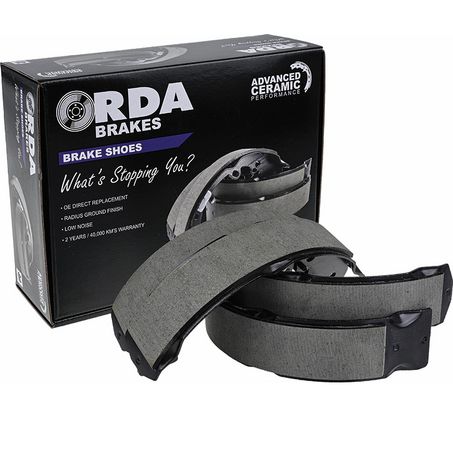

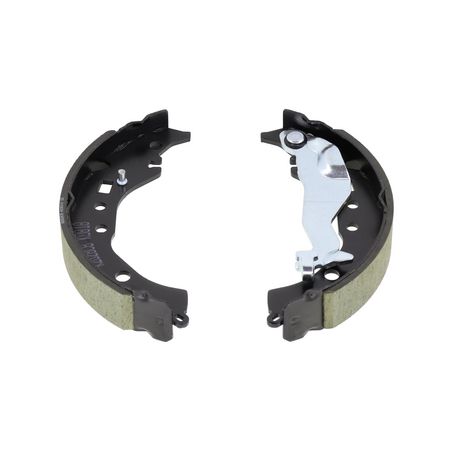

RDA Brakes R2028CB is a rear ceramic brake shoe set with the handbrake lever included. It is sold as a set of four shoes, radius-ground for contact area, and cross-referenced to OEM 04495-52120. Use R2028C if you need the same set without the lever.
Specifications
- Part number: R2028CB
- Type: Brake shoe
- Brand: RDA Brakes
- Unit: Set
- Position: Rear
- Diameter: 228 mm
- Width: 34 mm
- Pack quantity: 4
- OEM number: 04495-52120
- Warranty: 2 years / 40,000 km limited
Features

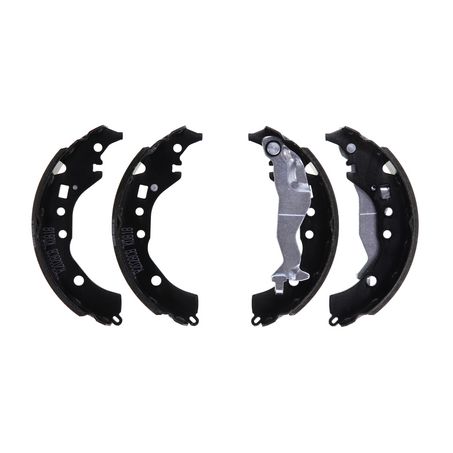

- Box contains 4 brake shoes
- Handbrake lever included
- Radius ground for maximum contact surface area
- Ceramic GG-rated friction material (coefficient about 0.45–0.55)
- Stable friction at high and low temperatures
- High damping for low noise
- Strong stopping power and resistance to brake fade
- Tested for safety and reliability
Note
Includes the handbrake lever. Order R2028C for the set without the lever. Application notes list the drum as 228 × 35 mm outside diameter; confirm chassis code and year before fitting.
Vehicle applications
Rear brake shoe, 1 set per vehicle, where noted as OD 228 × 35 mm:
- Daihatsu Boon Luminas 1.5L 3SZ-VE (12/08–02/12)
- Subaru Trezia 1.3L, 1.4L diesel, and 1.5L (03/11 on)
- Toyota Allion and Corona Premio 1.5L, 1.8L, and 2.0L, FWD and some AWD (from 06/01)
- Toyota Aqua and Prius C 1.5L hybrid (12/11–06/21)
- Toyota Corolla sedan 1.5L, 1.8L, and 2.2L diesel, including Axio hybrid (from 10/06)
- Toyota Corolla Fielder wagon 1.5L and 1.8L, FWD and AWD (from 09/06)
- Toyota Ist and Urban Cruiser 1.3L, 1.5L, and 1.8L (05/04–03/16)
- Toyota Passo Sette 1.5L (12/08–05/12)
- Toyota Porte and Spade 1.3L (08/12–06/15)
- Toyota Ractis and Verso-S 1.3L and 1.5L, FWD and AWD (09/05–10/16)
- Toyota Vitz and Yaris 1.3L (12/10–03/17)
- Toyota Wish 1.8L and 2.0L, FWD and AWD (04/09–05/18)
