Description

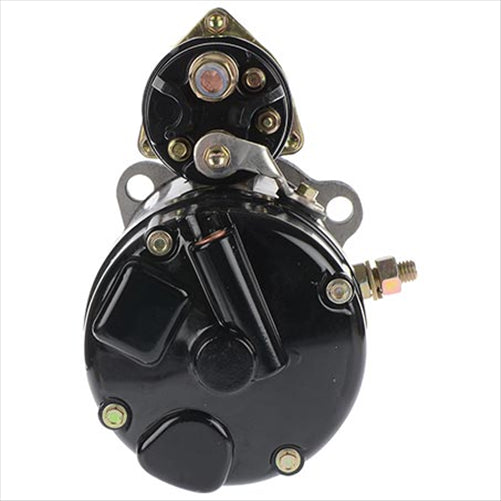

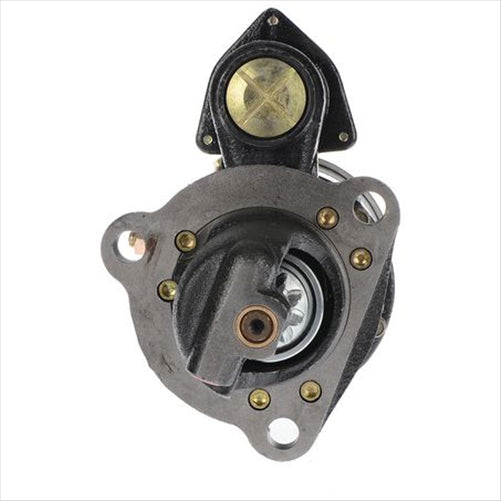

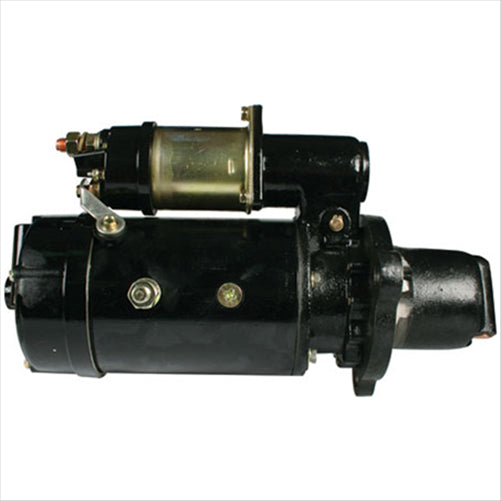

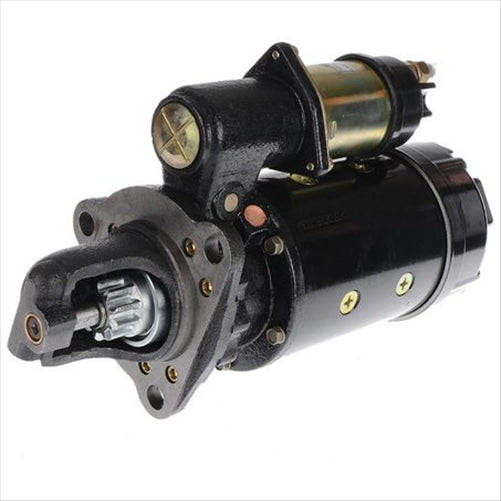

Starter Motor 12V 10Th CW Delco 37MT Style – DXS9134

The OEX Starter Motor DXS9134 is a heavy-duty 12V, 10-tooth clockwise (CW) starter motor designed in a Delco 37MT-style configuration. Built for high-output industrial and commercial applications, it delivers powerful cranking torque, reliable engagement, and consistent starting performance in demanding operating environments.

Engineered to OE specifications and manufactured in ISO-certified facilities, this starter motor is designed for durability, long service life, and dependable operation across heavy machinery and diesel-powered equipment.

Key Features

* High torque 4.5kW output – extreme cranking power for heavy-duty engines
* Delco 37MT style design – OE direct replacement fitment
* 10-tooth pinion gear – smooth and reliable flywheel engagement
* Clockwise (CW) rotation – correct operational direction
* Heavy-duty 3-hole mount design – secure industrial installation
* Wet or dry clutch compatible
* Brand new unit – not remanufactured
* 3-year passenger / 1-year commercial warranty

Specifications

* Voltage: 12V
* Power Rating: 4.5kW
* Number of Teeth: 10
* Rotation: Clockwise (CW)
* Series: 37MT
* Flange Diameter: 89mm
* Mount Centres A: 127mm
* Mount Centres B: 90mm
* Mount Centres C: 90mm
* Mount Hole Diameter: 11mm
* Starter Mount Type: 3 Hole
* Overall Length: 400mm
* Pinion Diameter: 40mm
* Pinion at Rest: 48mm
* Suits Unit Make: Delco
* Weight: 24kg
* Clutch Type: Wet or Dry
* Unit Type: New

Vehicle Applications

Commonly fitted to:

* Heavy industrial and construction equipment using Delco 37MT systems
* Agricultural machinery and diesel-powered plant equipment
* Allis Chalmers, Case, Iveco, New Holland and similar applications
* High-displacement diesel engines up to approx. 9.0L class applications

(Always confirm compatibility using part number DXS9134 or OE reference before purchase.)

Performance & Reliability

The DXS9134 starter motor is designed for extreme-duty starting applications, delivering high torque output for large diesel engines and heavy machinery. Its robust 37MT architecture ensures strong engagement under load, reduced wear on internal components, and consistent starting performance in harsh working environments.

Ideal for construction, agricultural, mining, and fleet applications where reliability and uptime are critical.

Why Choose OEX?

  • Trusted aftermarket brand across Australia & New Zealand
  • OE-style engineering for accurate fitment
  • Built for heavy-duty industrial performance
  • ISO-certified manufacturing standards
  • Backed by strong nationwide warranty support
