Description

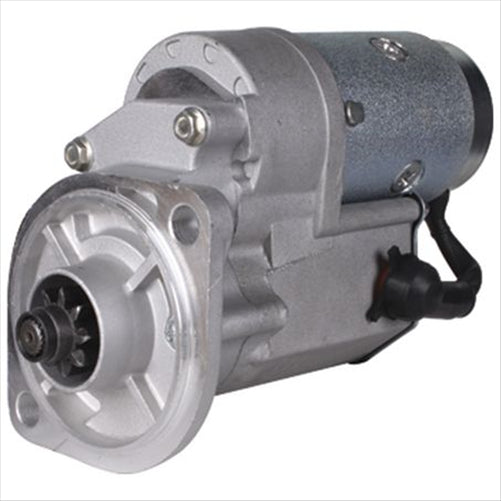

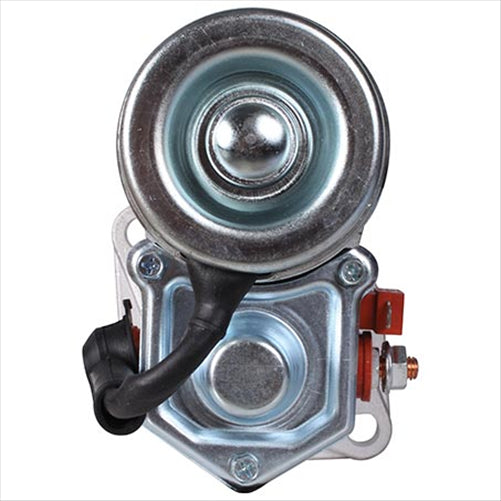

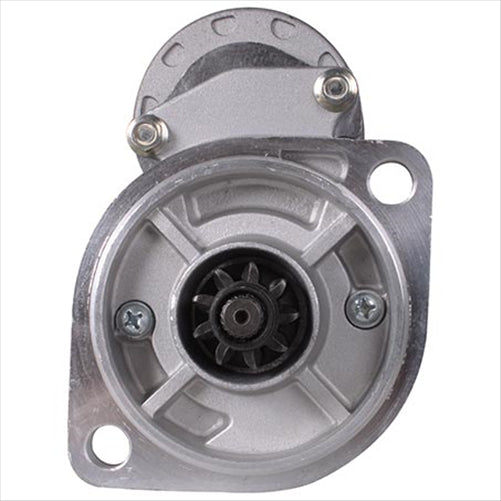

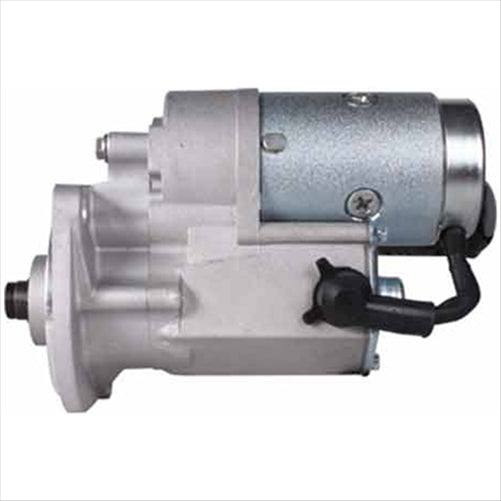

Starter Motor 12V 9Th CW Denso Style – DXS436

The OEX Starter Motor DXS436 is a compact 12V, 9-tooth clockwise (CW) Denso-style reduction drive starter designed for light commercial, industrial, and 4WD applications. It delivers strong cranking performance, reliable engagement, and consistent starting across a range of equipment using Denso-style starter systems.

This unit is manufactured to OE specifications, ensuring accurate fitment, durability, and dependable operation in demanding working environments.

Key Features

* 2.0kW high-torque output – strong and efficient starting performance
* 12V system design – standard automotive and light commercial compatibility
* Denso-style reduction drive – improved torque and reduced starter load
* 9-tooth pinion gear – smooth and precise engagement
* Clockwise (CW) rotation – correct operating direction
* 2-hole mount design – secure installation
* Dry clutch system
* Brand new unit – not remanufactured
* 3-year passenger / 1-year commercial warranty

Specifications

* Part Number: DXS436
* Voltage: 12V
* Series: Denso Style (Reduction Drive)
* Power Rating: 2.0kW
* Number of Teeth: 9
* Rotation: CW
* Suits Unit Make: Denso
* Flange Diameter: 95mm
* Mount Centres A: 120mm
* Mount Hole Diameter: 13mm
* Starter Mount Type: 2 Hole
* Pinion Diameter: 32mm
* Overall Length: 230mm
* Pinion at Rest: 21mm
* Weight: ~5.2kg
* Clutch Type: Dry

Applications

Commonly fitted to:

* CASE CX series excavators (CX75C / CX75SR / CX80 – selected models)
* Isuzu industrial diesel equipment (Denso starter systems)
* Various construction and earthmoving machinery using Denso 9T starters
* Engine and equipment platforms requiring 12V 2kW Denso reduction starters

(Always confirm fitment using part number DXS436 or OE reference before purchase.)

Performance & Reliability

The DXS436 is built for demanding industrial starting conditions, delivering strong torque and reliable cranking even under load. Its Denso-style reduction drive improves efficiency, reduces wear on internal components, and ensures long service life in construction, fleet, and agricultural use.
