DXS497

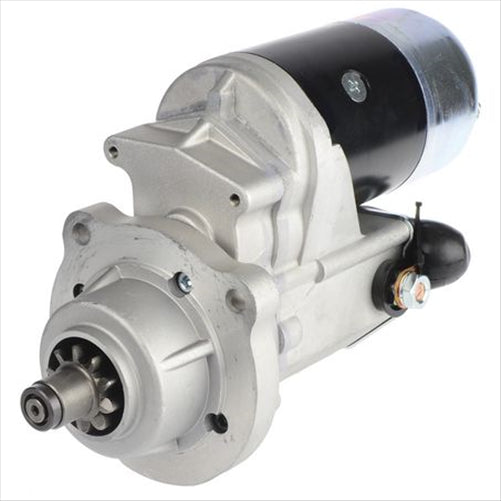

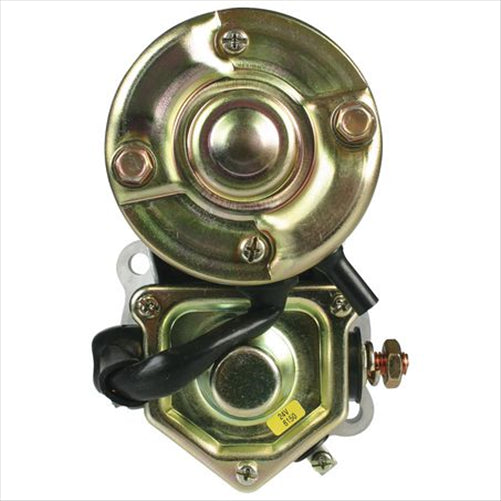

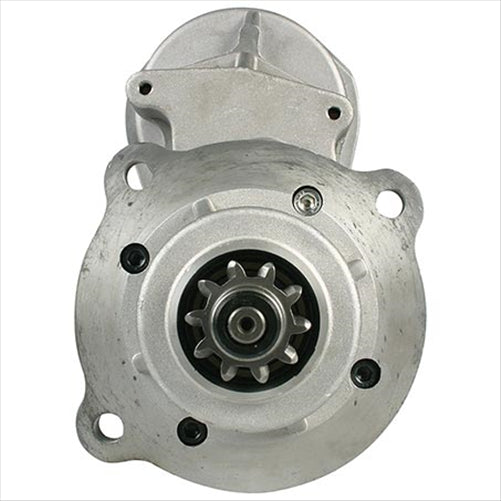

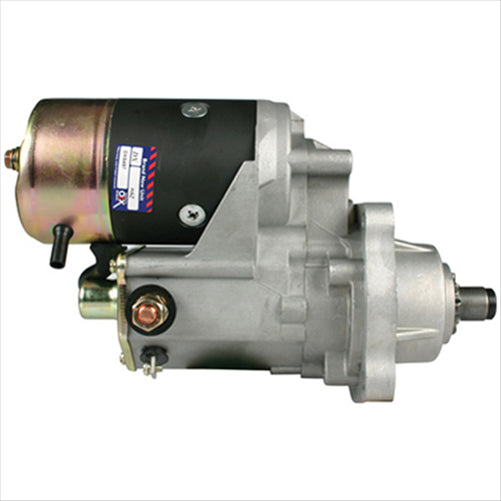

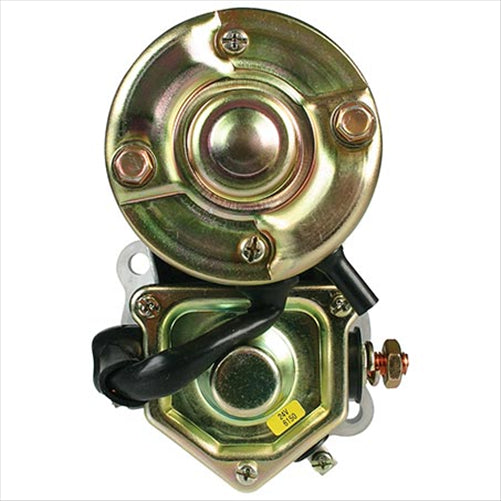

STARTER MOTOR 24V 10TH CW DENSO STYLE DXS497

STARTER MOTOR 24V 10TH CW DENSO STYLE DXS497

$918.50
$918.50
Tax included. Shipping calculated at checkout.
Expected delivery date:
02 Dec Usually delivered in 2-3 days.

Description


Part No. DXS497
Type STARTER MOTOR
Brand OEX
Unit of Measure EACH
Description STR 24V 10TH CW DENSO STYLE
Warranty 3yr Passenger 1yr Commercial
Flange Diameter 89mm
Mount Centres A 127mm
Mount Centres B 90mm
Mount Centres C 90mm
Mount Hole Diameter 10
Number of Teeth 10
Overall Length 295mm
Pinion at Rest 48mm
Pinion Diameter 40mm
Power Rating 4.5kW
Rotation CW
Suits Unit Make Denso
Voltage 24
Note For Wet Clutch applications use DRX72010 wet clutch kit. If rotating the drive end housing, ensure that drive end housing mount bolts are replaced into the same holes as which each bolt is removed. Caution; one bolt is 5mm shorter than the other three.
Drive to suit DRX72072, will require original pinion.
Weight 8.8kg
Item Type Starter Motor
New / Reman. New
Starter Mount Type 3 Hole
Wet / Dry Clutch Wet or Dry
Features

• Quality replacement starter motors and alternators, OEX for the Australian automotive aftermarket.
• OEX stands for Original Equipment Xchange, a brand that initially produced Japanese starter motors and alternators.
• OEX Starter motors and alternators is supported with a three year or 75,000 kilometre warranty on all new units
• 2 year, 50,000 kilometre warranty on all re-manufactured units when used in passenger vehicle applications.
• OEX represents premium quality at competitive price


what it fits
ATLAS COPCO ST3.5 SCOOPTRAM 12.7L F8L Diesel Inj. 6cyl Auto Underground Loader 4x4 [01/01 - 12/18]
CASE 135 5.9L 6BT A OHV 12v Turbo Diesel Inj. 6cyl Industrial Tractor [01/97 ON]
CASE 621D 5.9L 6BT A OHV 12v Turbo Diesel Inj. 6cyl Wheel Loader [01/99 - 01/15]
CATERPILLAR 910K 4.4L C4.4 Turbo Diesel Direct Inj. 4cyl Wheel Loader [01/15 ON]
CATERPILLAR 914G2 4.4L C4.4 Turbo Diesel Direct Inj. 4cyl Wheel Loader [01/13 ON]
CATERPILLAR 914K 4.4L C4.4 OHV 8v Turbo Diesel Inj. 4cyl Wheel Loader [01/14 ON]
CATERPILLAR 918M 4.4L C4.4 Turbo Diesel Direct Inj. 4cyl Wheel Loader [01/15 ON]
CATERPILLAR 924G 6.0L 3056 Turbo Diesel Direct Inj. 6cyl Wheel Loader [01/00 - 12/07]
CATERPILLAR AP300D 4.4L C4.4 Turbo Diesel Direct Inj. 4cyl Paver [01/16 ON]
CATERPILLAR CP54B 4.4L C4.4 Turbo Diesel Direct Inj. 4cyl Roller [01/13 ON]
CATERPILLAR CS64B 4.4L C4.4 Turbo Diesel Direct Inj. 4cyl Soil Compactor [01/13 ON]
INTERNATIONAL HARVESTER 515 5.9L D358 OHV 12v Diesel Inj. 6cyl Wheel Loader [01/04 - 12/04]
INTERNATIONAL HARVESTER 515 718 5.9L DT-358 Turbo Diesel Direct Inj. 6cyl Loader [01/83 - 12/83]
INTERNATIONAL HARVESTER 58 5.9L DT-358 Turbo Diesel Direct Inj. 6cyl Log Skidder [01/80 ON]
JOHN DEERE 1070D 6.8L 6068H OHV 24v Turbo Diesel Direct Inj. 6cyl Forestry Harvester [01/00 ON]
JOHN DEERE 190E 3.9L 4039D OHV 8v Diesel Inj. 4cyl Excavator [01/93 - 12/99]
JOHN DEERE 200LC 6.8L 6068T OHV 12v Turbo Diesel Direct Inj. 6cyl Excavator [01/95 - 12/06]
JOHN DEERE 2700 4.2L 4.254D 8v Diesel Direct Inj. 4cyl Tractor [01/93 ON]
JOHN DEERE 2800 4.2L 4.254D 8v Diesel Direct Inj. 4cyl Tractor [01/93 ON]
JOHN DEERE 3010 4.2L 4.254D 8v Diesel Direct Inj. 4cyl Tractor [01/61 ON]
JOHN DEERE 3020 4.4L 4.270D 8v Diesel Direct Inj. 4cyl Tractor [01/64 ON]
JOHN DEERE 330C LC 8.1L 6081H Turbo Diesel Inj. 6cyl Excavator [01/00 - 12/06]
JOHN DEERE 330LC 8.1L 6081H Turbo Diesel Inj. 6cyl Excavator [01/98 - 12/05]
JOHN DEERE 370 8.1L 6081H Turbo Diesel Inj. 6cyl Excavator [01/99 - 12/03]
JOHN DEERE 370C 8.1L 6081H Turbo Diesel Inj. 6cyl Excavator [01/03 ON]
JOHN DEERE 4010 6.2L 6.381 Diesel Direct Inj. 6cyl Tractor [01/60 ON]
JOHN DEERE 570B 5.9L 6059D Diesel Direct Inj. 6cyl 67kW Grader [01/92 ON]
JOHN DEERE 655B 6.8L 6068T OHV 12v Turbo Diesel Direct Inj. 6cyl Hydrostatic Trans Crawler Loader Tracks [01/01 ON]
JOHN DEERE 655B 6.8L 6414T OHV Turbo Diesel Direct Inj. 6cyl Crawler Loader [01/07 ON]
JOHN DEERE 670B 6.8L 6068T OHV 12v Turbo Diesel Direct Inj. 6cyl Grader [01/85 - 12/01]
JOHN DEERE 672B 6.8L 6068T OHV 12v Turbo Diesel Direct Inj. 6cyl Grader [01/95 - 12/98]
JOHN DEERE 672B 6.8L 6414T OHV 12v Turbo Diesel Inj. 6cyl Man Grader 6x4 [01/01 ON]
JOHN DEERE 690D 6.8L 6414T OHV Turbo Diesel Direct Inj. 6cyl Excavator [01/88 - 12/89]
JOHN DEERE 690E 6.8L 6068T OHV 12v Turbo Diesel Direct Inj. 6cyl Excavator [01/91 - 12/97]
JOHN DEERE 750B 6.8L 6068T OHV 12v Turbo Diesel Direct Inj. 6cyl Dozer [01/85 - 12/96]
JOHN DEERE 750C 6.8L 6068T OHV 12v Turbo Diesel Direct Inj. 6cyl Dozer [01/94 ON]
JOHN DEERE 750C-II 6.8L 6068T OHV 12v Turbo Diesel Direct Inj. 6cyl Hydrostatic Trans Dozer Tracks [01/01 ON]
JOHN DEERE 755B 6.8L 6068T OHV 12v Turbo Diesel Direct Inj. 6cyl Crawler Loader [01/85 - 12/96]
JOHN DEERE 770B/BH 7.6L 6076T 12v Turbo Diesel Direct Inj. 6cyl Grader [01/82 - 12/01]
JOHN DEERE 772B/BH 7.6L 6.466T OHV 12v Diesel Direct Inj. 6cyl Grader [01/82 - 12/98]
JOHN DEERE 772B/BH 7.6L 6076A 12v Turbo Diesel Direct Inj. 6cyl Man Grader 6x4 [01/82 - 12/98]
JOHN DEERE 790 7.6L 6076A 12v Turbo Diesel Direct Inj. 6cyl Excavator [01/84 - 12/86]
JOHN DEERE 790D 7.6L 6.466D Diesel Direct Inj. 6cyl Excavator [01/88 - 12/91]
JOHN DEERE 790E LC 6.8L 6068T OHV 12v Turbo Diesel Direct Inj. 6cyl Excavator [01/95 - 12/97]
JOHN DEERE 792 7.6L 6.466D Diesel Direct Inj. 6cyl Excavator [01/85 - 12/87]
JOHN DEERE 792D LC 7.6L 6076A 12v Turbo Diesel Direct Inj. 6cyl Excavator [01/96 ON]
JOHN DEERE 850B 7.6L 6466A OHV 12v Turbo Diesel Direct Inj. 6cyl Hydrostatic Trans Dozer Tracks [01/01 ON]
JOHN DEERE 850C 7.6L 6076A 12v Turbo Diesel Direct Inj. 6cyl Dozer [01/99 - 12/07]
JOHN DEERE 850C 7.6L 6466A OHV 12v Turbo Diesel Direct Inj. 6cyl Hydrostatic Trans Dozer Tracks [01/01 ON]
JOHN DEERE 850C-II 8.1L 6081A OHV 12v Turbo Diesel Inj. 6cyl Hydrostatic Trans Dozer Tracks [01/01 ON]
JOHN DEERE 892D LC 7.6L 6.466D Diesel Direct Inj. 6cyl Excavator [01/87 - 12/96]
JOHN DEERE 892E LC 7.6L 6076A 12v Turbo Diesel Direct Inj. 6cyl Excavator [01/93 - 12/99]
NEW HOLLAND CR960 7.8L CURSOR-8 SOHC 24v Turbo Diesel Direct Inj. 6cyl Combine [01/01 ON]
NEW HOLLAND CX860 7.8L CURSOR-8 SOHC 24v Turbo Diesel Direct Inj. 6cyl Combine [01/01 ON]
PERKINS 6.354 5.8L 6.354 Diesel Inj. 6cyl 127kW Engine [01/70 ON]
Ashdown Starter Motor DXS497 24v
Ashdown Starter Motor DXS542 24v
Ashdown Starter Motor DXS543 24v
Ashdown Starter Motor RXS497 24v CW
Auto Electrics Australia Starter Motor ASBO9102 24v CW
Auto Electrics Australia Starter Motor ASBO9110 24v CW
Baxters Starter Motor S-8956 24v CW
Bosch Starter Motor 0001364103 24v CW 4.8kw
Cav Starter Motor 1321022
Cav Starter Motor 1321F022
Cav Starter Motor 1321F033 24v
Cav Starter Motor 1321G022 24v
Cav Starter Motor 1321G033 24v
Cav Starter Motor CA45D24-2 24v 5.4kw
Cav Starter Motor CA45F24-2 24v 5.4kw
Cav Starter Motor CA45F24-3M 24v 5.4kw
Cav Starter Motor CA45G24-2 24v 5.4kw
Cav Starter Motor CA45G24-3M 24v 5.4kw
Cav Starter Motor CA45H24-2
Denso Starter Motor 028000-5530 [28100-56030] 24v 4.5kw
Ingram Starter Motor 843762
PJL Diesel Electrics Starter Motor IM6912 24v CW
Unipoint Electric Starter Motor STR-6177A 24v 4.5kw
