Description

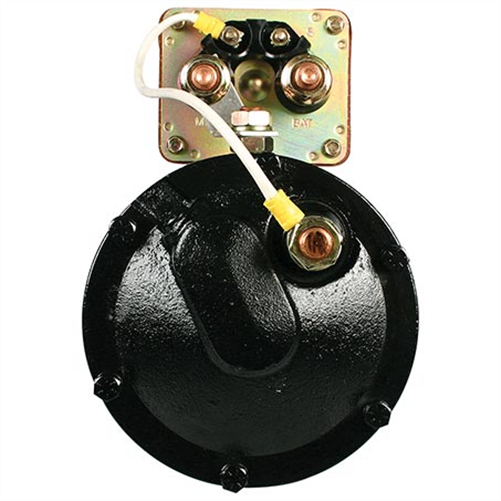

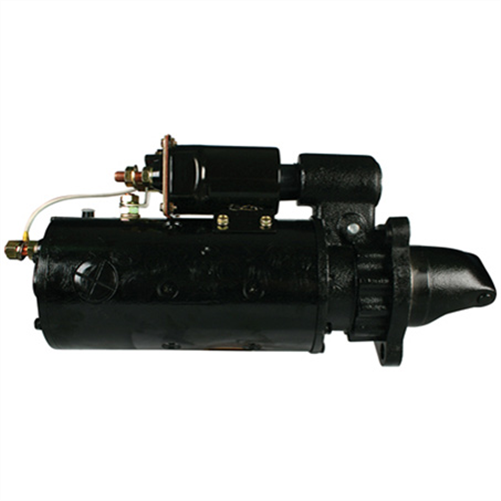

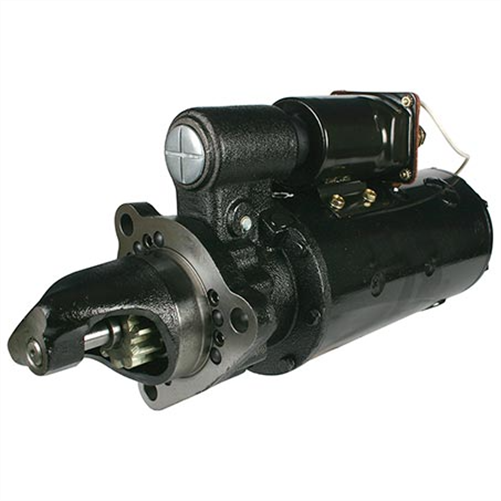

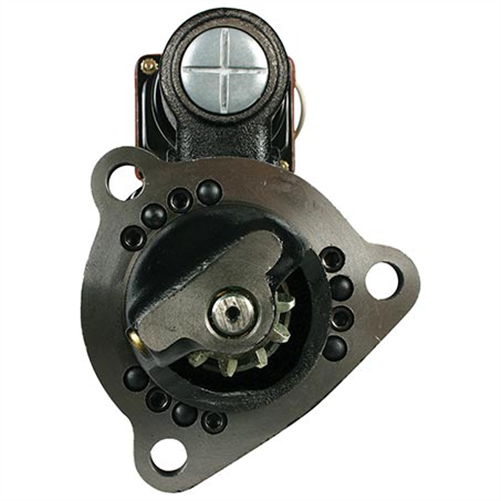

Starter Motor 24V 11Th CW Delco 50MT Style – DXS9153

The OEX Starter Motor DXS9153 is a heavy-duty 24V, 11-tooth clockwise (CW) starter motor built in a Delco 50MT-style configuration. Designed for extreme industrial, mining, and off-highway applications, it delivers very high cranking torque, strong engagement, and dependable starting performance for large diesel engines under heavy load.

Manufactured to OE specifications using robust, high-quality components, this starter is engineered for durability, long service life, and consistent operation in harsh working environments.

Key Features

* High torque 8.5kW output – powerful cranking for large diesel engines
* 24V heavy-duty system design – ideal for industrial and off-highway equipment
* Delco 50MT style OE replacement – accurate fitment and compatibility
* 11-tooth pinion gear – smooth and reliable engagement
* Clockwise (CW) rotation – correct operational direction
* Heavy-duty 3-hole mount design – secure industrial installation
* Wet or dry clutch compatible
* Brand new unit – not remanufactured
* 3-year passenger / 1-year commercial warranty

Specifications

* Part Number: DXS9153
* Voltage: 24V
* Series: 50MT
* Power Rating: 8.5kW
* Number of Teeth: 11
* Rotation: Clockwise (CW)
* Suits Unit Make: Delco
* Flange Diameter: 92mm
* Mount Centres A/B/C: 126mm
* Mount Hole Diameter: 16mm
* Starter Mount Type: 3 Hole
* Pinion Diameter: 56mm
* Overall Length: 515mm
* Pinion at Rest: 46mm
* Weight: 34.4kg
* Clutch Type: Wet or Dry
* Unit Type: New

Vehicle Applications

Commonly fitted to:

* Caterpillar mining and earthmoving equipment (large frame machines)
* Cummins-powered industrial and off-highway equipment
* Atlas Copco drilling and mining rigs (selected models)
* Heavy construction machinery using Delco 50MT systems
* Large diesel generators and industrial power units

(Always confirm compatibility using part number DXS9153 or OE reference before purchase.)

Performance & Reliability

The DXS9153 starter motor is designed for extreme-duty cranking applications, delivering the high torque required for large displacement diesel engines. Its Delco 50MT architecture ensures strong engagement under heavy compression, reduced wear, and consistent starting performance even in harsh mining and construction environments.
