• OEX STARTER MOTOR 24V 11TH CW DENSO STYLE
  • OEX STARTER MOTOR 24V 11TH CW DENSO STYLE
  • OEX STARTER MOTOR 24V 11TH CW DENSO STYLE
  • OEX STARTER MOTOR 24V 11TH CW DENSO STYLE
  • OEX STARTER MOTOR 24V 11TH CW DENSO STYLE
1 5

DXS451

STARTER MOTOR 24V 11TH CW DENSO STYLE DXS451

STARTER MOTOR 24V 11TH CW DENSO STYLE DXS451

$746.90
$746.90
Tax included. Shipping calculated at checkout.
Expected delivery date:
15 Jul Usually delivered in 2-3 days.

Description

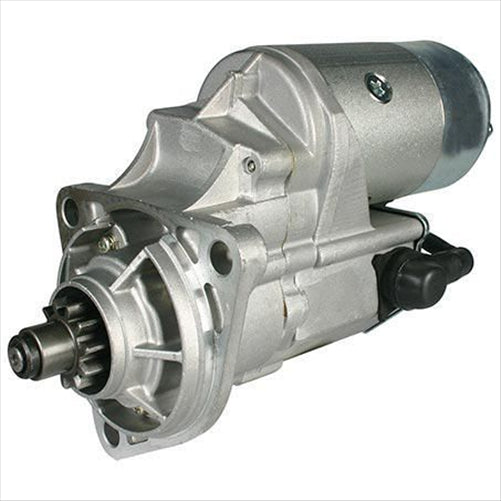

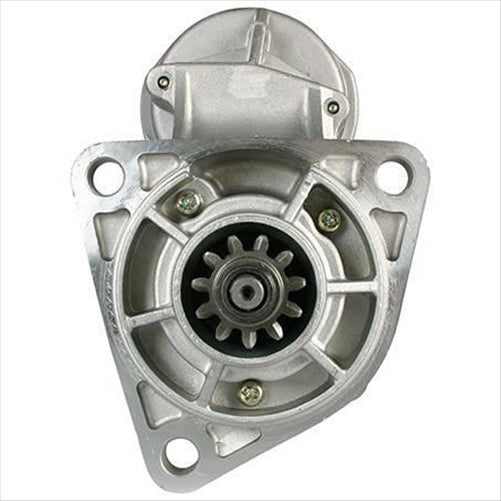

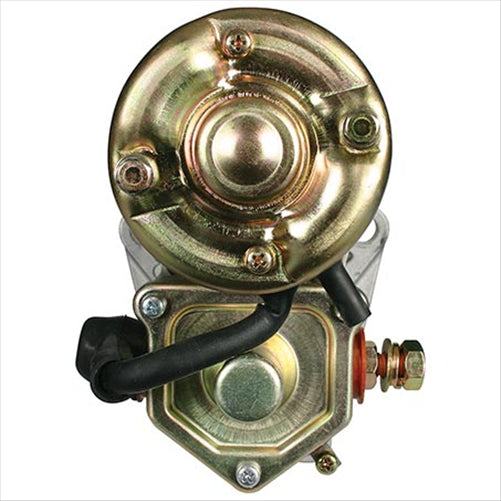

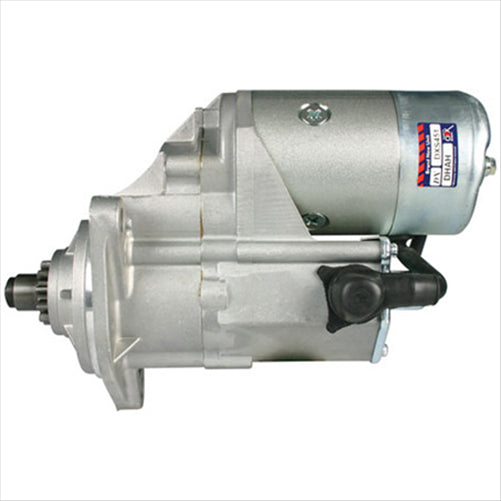

Starter Motor 24V 11Th CW Denso Style – DXS451

The OEX Starter Motor DXS451 is a heavy-duty 24V, 11-tooth clockwise (CW) starter motor built in a Denso-style configuration. It is designed for industrial, construction, and heavy commercial diesel applications, delivering strong cranking torque, reliable engagement, and consistent starting performance in demanding environments.

This unit is manufactured to OE specifications, ensuring correct fitment, durability, and long service life in compatible Denso 24V systems.

Key Features

* 4.5kW high-torque output – strong diesel starting performance
* 24V system design – suitable for heavy-duty machinery and trucks
* Denso-style OE replacement – accurate fitment and interchangeability
* 11-tooth pinion gear – smooth engagement
* Clockwise (CW) rotation – correct operating direction
* Heavy-duty 3-hole mount design – secure installation under load
* Dry clutch compatible
* Brand new unit – not remanufactured
* 3-year passenger / 1-year commercial warranty

Specifications

* Part Number: DXS451
* Voltage: 24V
* Series: Denso Style
* Power Rating: 4.5kW
* Number of Teeth: 11
* Rotation: CW
* Suits Unit Make: Denso
* Flange Diameter: 105mm
* Mount Centres A: 135mm
* Mount Centres B: 111mm
* Mount Centres C: 111mm
* Mount Hole Diameter: 13mm
* Starter Mount Type: 3 Hole
* Pinion Diameter: 40mm
* Overall Length: 295mm
* Pinion at Rest: 41mm
* Weight: ~8.4kg
* Clutch Type: Dry
* Unit Type: New

Applications

Commonly fitted to:

* Hitachi excavators (EX series – selected models)
* Isuzu heavy diesel engines (selected industrial applications)
* Doosan / Daewoo construction equipment (selected units)
* JCB machinery (selected diesel variants)
* Kobelco / Kato / Dynapac industrial equipment
* Generators and heavy-duty fleet diesel systems

(Always confirm fitment using part number DXS451 or OE reference before purchase.)

Performance & Reliability

The DXS451 is built for high-demand diesel starting applications, delivering strong torque and dependable cranking even in harsh industrial environments. Its Denso-style construction ensures precise engagement, reduced wear, and reliable long-term operation in mining, construction, and fleet use.

Why Choose OEX?

  • Trusted aftermarket brand across Australia & New Zealand
  • OE-style engineering for precise fitment
  • Built for mining, construction, and industrial reliability
  • ISO-certified manufacturing standards
  • Strong nationwide warranty support
