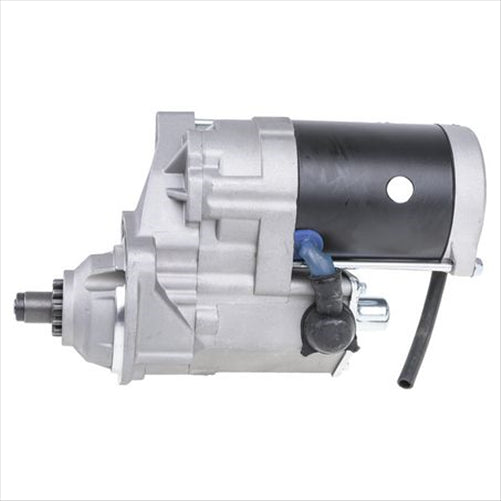

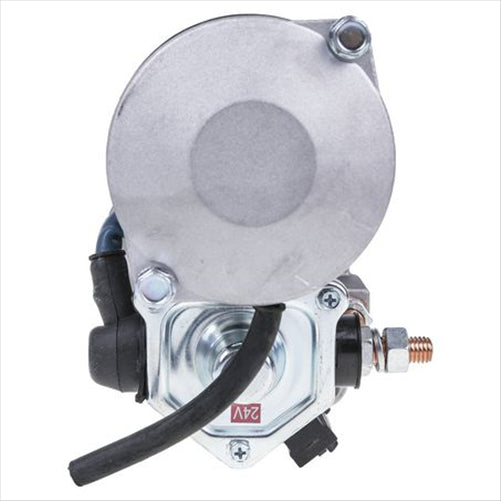

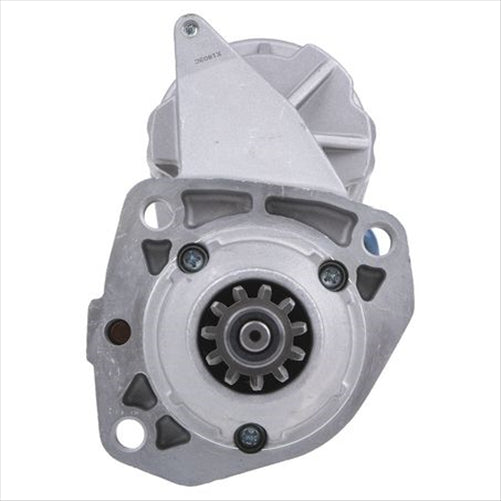

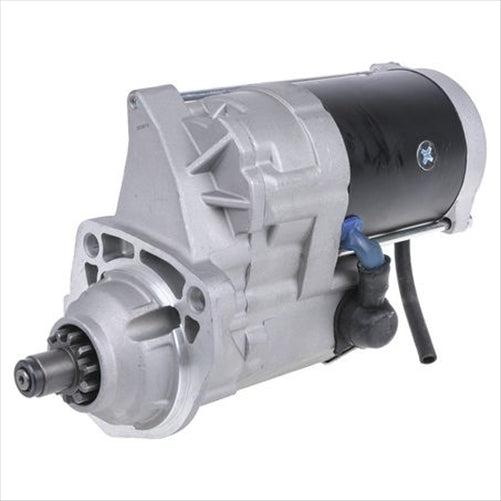

STARTER MOTOR 24V 11TH CW DENSO STYLE DXS619

Starter Motor 24V 11T CW Denso Style – DXS619

The OEX Starter Motor DXS619 is a heavy-duty 24V, 11-tooth clockwise starter motor designed as a direct replacement for Denso-style units. Built for demanding industrial, construction, and forestry equipment, this starter delivers extremely high cranking torque and reliable starting performance in severe operating conditions.

Engineered with robust components and a reinforced housing design, the DXS619 is built to handle high-load diesel engines, frequent start cycles, and harsh working environments while maintaining consistent performance and durability.

Key Features

• Ultra high output 7.5kW performance – maximum cranking power for large diesel engines
• 24V heavy-duty system – designed for industrial and off-highway equipment
• 11-tooth pinion (CW rotation) – precise engagement under load
• Denso-style OE replacement design – direct fitment application
• Oil sealed construction – improved durability and protection
• Dowell pin hole housing design – secure and stable mounting
• Wet or dry clutch compatibility – versatile application use
• Heavy-duty build – engineered for extreme conditions
• Brand new unit – not remanufactured
• 1-year warranty

Specifications

• Voltage: 24V
• Power Rating: 7.5kW
• Teeth: 11
• Rotation: Clockwise (CW)
• Flange Diameter: 89mm
• Mount Centres A: 127mm
• Mount Centres B: 90mm
• Mount Centres C: 90mm
• Mount Hole Diameter: 11.5mm
• Overall Length: 315mm
• Pinion Diameter: 40mm
• Pinion at Rest: 48mm
• Starter Mount Type: 3 Hole
• Clutch Type: Wet or Dry
• Weight: 10.36kg
• Suits Unit Make: Denso
• Special Notes: Oil sealed, with dowell pin hole in D.E housing
• Unit Type: New

Vehicle / Equipment Applications

Commonly fitted to:

John Deere Forestry Equipment

• 1010D / 1110D / 1270D / 1410D / 1470D / 1490D / 1710D
• 242HV / T Harvester Series
• 3554 Log Loader

John Deere Construction Equipment

• 250D / 300D Dump Trucks
• 350D LC Excavator
• 444H / 444J / 444K Wheel Loaders
• 444H LL / 444K Z-Bar Log Loaders
• 524K Wheel Loader

Bell Equipment

• 700J Dozer (6.8L 6068 Diesel)
• 850J Dozer (8.1L 6081 Diesel)

Always confirm fitment using OE number, starter reference, or machine specifications before purchase.

Performance & Reliability

The DXS619 starter motor is designed for extreme-duty applications where reliability is critical. Its 7.5kW high-torque output ensures powerful engine cranking even in large displacement diesel engines used in construction, forestry, and mining equipment.

With oil-sealed construction and reinforced mounting design, it delivers excellent resistance to vibration, heat, and continuous heavy-duty cycles.

Why Choose OEX?

• Trusted aftermarket brand across Australia & New Zealand
• Designed for OE-style fitment and industrial-grade reliability
• Built for heavy equipment and extreme-duty applications
• Backed by strict quality control and testing standards
