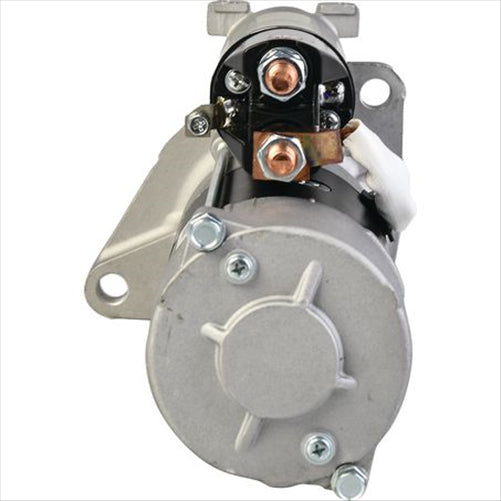

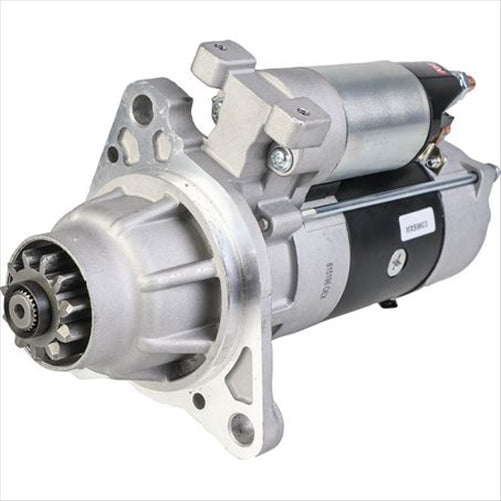

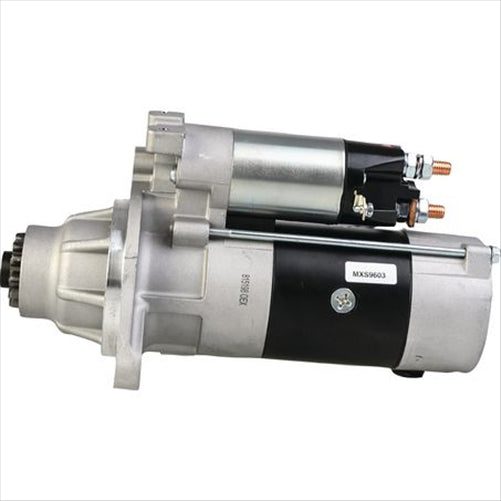

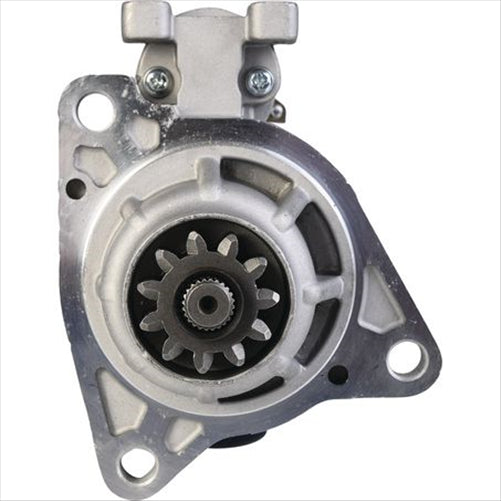

STARTER MOTOR 24V 11TH CW MITSUBISHI STYLE MXS9603

Starter Motor 24V 11TH CW Mitsubishi Style – MXS9603

The OEX Starter Motor MXS9603 is a heavy-duty 24V, 11-tooth clockwise (CW) starter motor designed in Mitsubishi style for powerful and reliable engine cranking in large diesel and industrial applications. Built for extreme-duty performance, this unit delivers high torque output and dependable starting capability across construction, mining, and heavy transport equipment.

Engineered with reinforced components and tested to strict quality standards, this starter motor ensures long service life, strong engagement, and consistent operation even in the harshest working environments.

Key Features

• 24V heavy-duty starter motor for industrial diesel applications
• 11-tooth pinion (13-tooth interchangeable design) for flexible fitment
• Mitsubishi-style OE replacement unit
• High 6kW power output for maximum cranking force
• Clockwise (CW) rotation for correct installation
• Heavy-duty construction for extreme working conditions
• Brand new unit – not remanufactured
• 1-year warranty (commercial/industrial grade)

Specifications

• Voltage: 24V
• Power Output: 6kW
• Rotation: CW (Clockwise)
• Number of Teeth: 11 (13T interchangeable)
• Flange Diameter: 100mm
• Mount Centres A: 149mm
• Mount Centres B: 133mm
• Mount Centres C: 108mm
• Mount Hole Diameter: 14mm
• Pinion Diameter: 48mm
• Pinion at Rest: 70mm
• Overall Length: 330mm
• Starter Mount Type: 3 Hole
• Clutch Type: Dry
• Suits Unit Make: Mitsubishi
• Unit Type: New

Important Note

This unit features an interchangeable 11-tooth and 13-tooth design, depending on application requirements. Always verify the correct tooth configuration and OEM reference before installation to ensure proper fitment and engagement.

Vehicle Applications

Commonly fitted to:

Construction & Heavy Equipment

• Hidromek MG460 11.9L 6D24-T Diesel Grader (01/2017 →)
• Hitachi LX190-7A / LX230-7 / LX230-7 RYU4H 11.9L 6D24-T Wheel Loader/Loader (2004 →)
• Kato HD1250V-II / HD2045 Series 6D22-T / 6D24-T Excavators (1995 → 2011+)
• Kobelco 7055 / FD416 / K912 / K916 / SK400 Series 6D22 Diesel Excavators & Crane (1983 →)
• Sumitomo SH300 / SH300-2 6D22-T Diesel Excavators (1999 →)

Mitsubishi Fuso Aero Star Bus

• MK1 / MP217 / MP237 / MP317 Series
  (11.1L–11.9L 6D22 / 6D24 Diesel Engines)

Note: Some applications may use 13-tooth variant. Always confirm OE number and tooth configuration before purchase.

Performance & Reliability

The MXS9603 starter motor is engineered for demanding industrial and off-highway applications where consistent high-torque starting is critical. Its 6kW output provides exceptional cranking force for large displacement diesel engines, ensuring reliable performance in excavation, construction, and heavy transport environments.

Designed for durability, it withstands continuous heavy-duty cycles and harsh operating conditions with minimal downtime.

Why Choose OEX?

• Trusted aftermarket brand across Australia & New Zealand
• Built for heavy industrial and off-road applications
• OE-style precision fitment for reliable installation
• High-torque output for large diesel engines
• Proven durability in harsh working environments
• Backed by warranty and quality assurance testing
