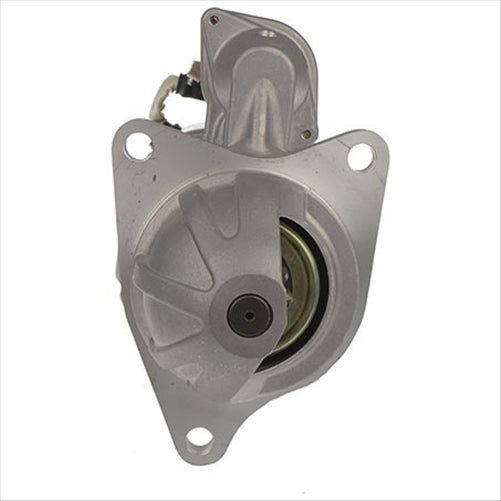

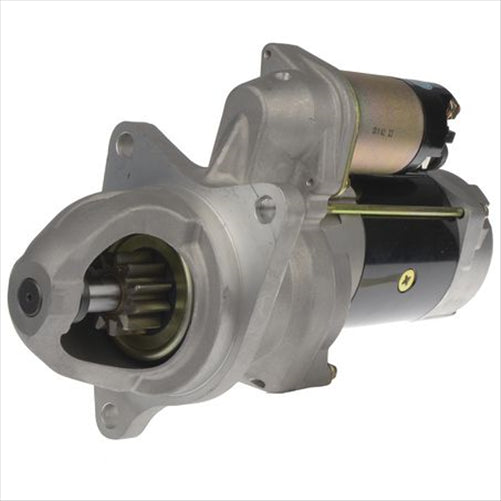

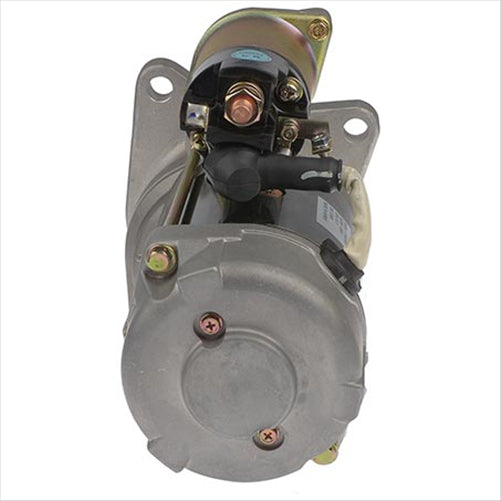

STARTER MOTOR 24V 11TH CW SAWAFUJI STYLE SXS702

Starter Motor 24V 11T CW Sawafuji Style – SXS702

The OEX Starter Motor SXS702 is a high-performance 24V, 7.0kW heavy-duty starter designed as a direct replacement for Sawafuji-style units. Engineered for large diesel engines used in trucks, construction equipment, and industrial machinery, this starter delivers exceptional cranking torque, fast engagement, and reliable starting performance under extreme load conditions.

Manufactured using premium-grade components and tested to strict quality standards, it ensures long service life, durability, and consistent operation in demanding environments.

Key Features

• High output 7.0kW starter motor – ideal for large displacement diesel engines
• Sawafuji-style OE replacement design – ensures correct fitment
• 24V heavy-duty system compatibility – built for commercial applications
• 11-tooth CW rotation pinion – strong and precise engagement
• Heavy-duty industrial construction – designed for harsh operating conditions
• Brand new unit – not remanufactured
• 1-year warranty – reliable performance assurance

Specifications

• Part Number: SXS702
• Voltage: 24V
• Power Rating: 7.0kW
• Rotation: Clockwise (CW)
• Number of Teeth: 11
• Flange Diameter: 122mm
• Mount Centres A: 178mm
• Mount Centres B: 166mm
• Mount Centres C: 120mm
• Mount Hole Diameter: 16mm
• Nose Cone Length: 99mm
• Overall Length: 405mm
• Pinion at Rest: 43mm
• Pinion Diameter: 47mm
• Starter Mount Type: 3 Hole
• Clutch Type: Dry
• Weight: 15.6kg
• Unit Type: New
• Suits Unit Make: Sawafuji

Vehicle Applications

Commonly fitted to:

Ford N-Series

• 1117 – 6.0L W06E Diesel (1987–1991)
• 9.4L EM100 Diesel Platform/Chassis (1986–1996)
• SLHZ N3222 – 9.4L EM100 Diesel 6x4 (1984–1993)

Hino Heavy Duty Engines

• EF750 – 16.7L Diesel (1981–1992)
• EK200 – 13.3L Diesel (1983–1990)
• EL100 – 7.9L Diesel (1983–1992)
• EP100 – 8.8L Diesel (1981–2003)

Hino Ranger Series

• FG – 7.9L EL100 Diesel (2000)
• FM3M MK3 – 9.9L M10C Diesel 6x4 (1993–2001)
• FS27# – 13.3L EK100 Diesel (1991→)
• GS221 / GS224 MK2 – 9.4L EM100 Diesel (1986–1992)

Hino Super Dolphin Series

• FH / FN / FR / FS / GS Series – EK100 & EM100 engines (1980→)

Hitachi Excavators

• EX300 – EL100 / EP100 / EM100 Diesel variants (1979→)
• UH07-5 / UH08-1 – EL100 Diesel (1979–1986)

UD Nissan Diesel Condor / C Series

• MD92-T 9.2L Diesel Platform/Chassis & Truck Tractor models (1995→)

Always confirm compatibility using part number (SXS702), OE reference, or vehicle specifications before purchase.

Performance & Reliability

The SXS702 starter motor is built for demanding heavy-duty diesel applications where maximum cranking power is essential. Its 7.0kW output ensures fast, reliable engine starts even in high-compression engines commonly found in trucks, excavators, and industrial machinery.

Designed for durability, it performs consistently in extreme working conditions, reducing downtime and improving operational reliability.

Why Choose OEX?

• Trusted aftermarket brand across Australia & New Zealand
• Engineered for heavy-duty commercial and industrial use
• OE-style direct-fit replacement for easy installation
• Built for maximum durability in harsh environments
• Backed by strong warranty and quality assurance
