• OEX STARTER MOTOR 24V 12TH CW DELCO 37MT STYLE
  • OEX STARTER MOTOR 24V 12TH CW DELCO 37MT STYLE
  • OEX STARTER MOTOR 24V 12TH CW DELCO 37MT STYLE
1 3

DXS9141

STARTER MOTOR 24V 12TH CW DELCO 37MT STYLE DXS9141

STARTER MOTOR 24V 12TH CW DELCO 37MT STYLE DXS9141

$1,554.30
$1,554.30
Tax included. Shipping calculated at checkout.

Description

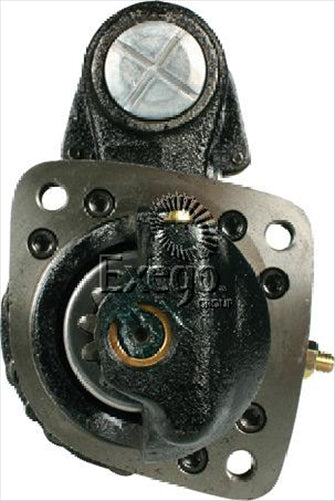

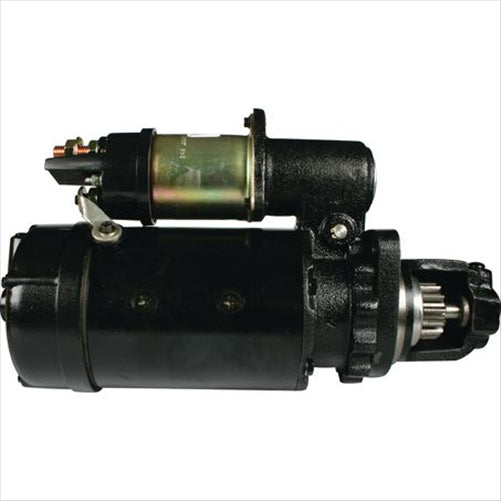

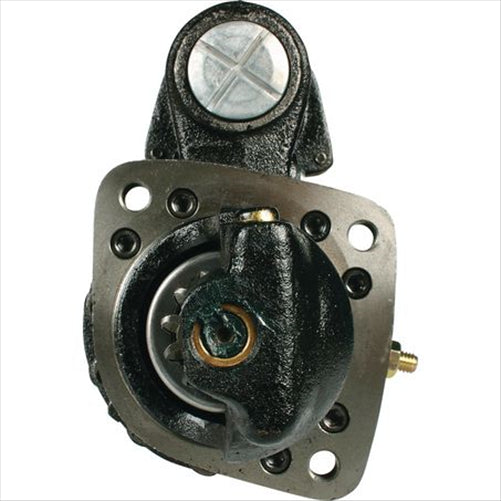

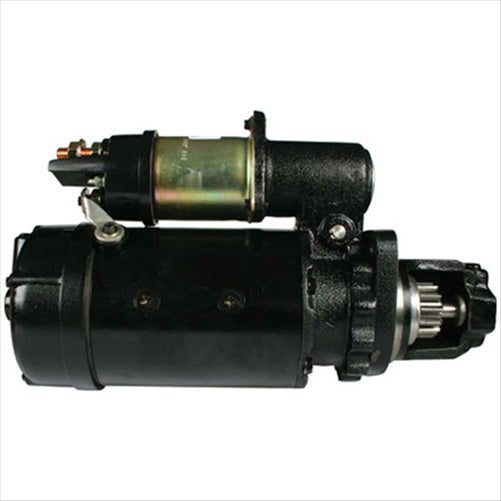

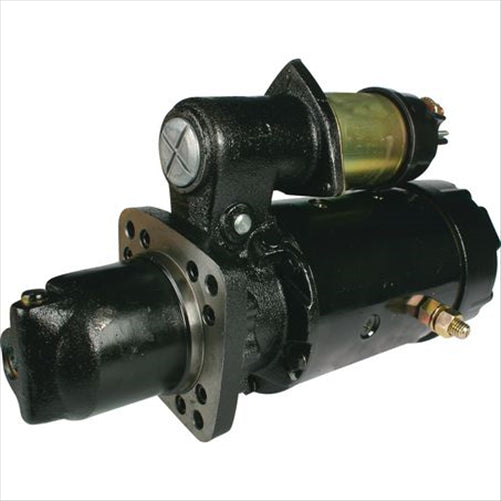

Starter Motor 24V 12Th CW Delco 37MT Style – DXS9141

The OEX Starter Motor DXS9141 is a heavy-duty 24V, 12-tooth clockwise (CW) starter motor built in a Delco 37MT-style configuration. Designed for demanding industrial, construction, and heavy diesel applications, it delivers strong cranking torque, reliable engagement, and consistent starting performance under high-load operating conditions.

Engineered to OE specifications and manufactured using durable components, this starter is built for long service life and dependable operation in harsh environments such as mining, earthmoving, and heavy transport fleets.

Key Features

* High torque 4.5kW output – reliable cranking performance for medium-to-large diesel engines
* 24V heavy-duty system design – ideal for industrial and off-highway equipment
* Delco 37MT style OE replacement – accurate fitment and compatibility
* 12-tooth pinion gear – smooth and strong engagement
* Clockwise (CW) rotation – correct operational direction
* Heavy-duty 3-hole mount design – secure installation for demanding use
* Wet or dry clutch compatible
* Brand new unit – not remanufactured
* 3-year passenger / 1-year commercial warranty

Specifications

* Part Number: DXS9141
* Voltage: 24V
* Series: 37MT
* Power Rating: 4.5kW
* Number of Teeth: 12
* Rotation: Clockwise (CW)
* Suits Unit Make: Delco
* Flange Diameter: 89mm
* Mount Centres A: 127mm
* Mount Centres B/C: 90mm
* Mount Hole Diameter: 11mm
* Starter Mount Type: 3 Hole
* Pinion Diameter: 46mm
* Overall Length: 400mm
* Pinion at Rest: 48mm
* Weight: 23.0kg
* Clutch Type: Wet or Dry
* Unit Type: New

Vehicle Applications

Commonly fitted to:

* Caterpillar earthmoving equipment (120H, 140H, 140K, D5–D7 series and similar machines)
* Atlas Copco mining and drilling equipment (ROC series and similar applications)
* Case IH agricultural and heavy tractor systems (selected 37MT applications)
* Cummins-powered industrial and off-highway engines
* Construction, mining, and heavy-duty machinery using Delco 37MT systems

(Always confirm compatibility using part number DXS9141 or OE reference before purchase.)

Performance & Reliability

The DXS9141 starter motor is engineered for reliable heavy-duty cranking performance, delivering consistent starts for diesel engines under compression load. Its Delco 37MT architecture ensures strong engagement, reduced wear, and stable operation in demanding industrial and off-highway environments.

Why Choose OEX?

  • Trusted aftermarket brand across Australia & New Zealand
  • OE-style engineering for precise fitment
  • Built for industrial and heavy-duty durability
  • ISO-certified manufacturing standards
  • Strong nationwide warranty support
