• OEX Starter Motor 24V 12THhCW Delco 40MT Style
  • OEX Starter Motor 24V 12THhCW Delco 40MT Style
  • OEX Starter Motor 24V 12THhCW Delco 40MT Style
  • OEX Starter Motor 24V 12THhCW Delco 40MT Style
1 4

DXS9145

Starter Motor 24V 12THhCW Delco 40MT Style DXS9145

Starter Motor 24V 12THhCW Delco 40MT Style DXS9145

$1,245.20
$1,245.20
Tax included. Shipping calculated at checkout.

Description

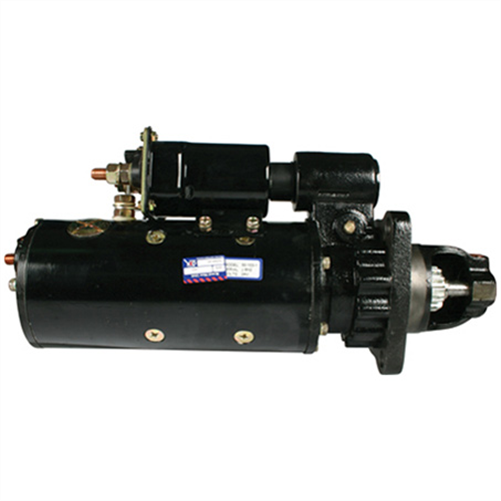

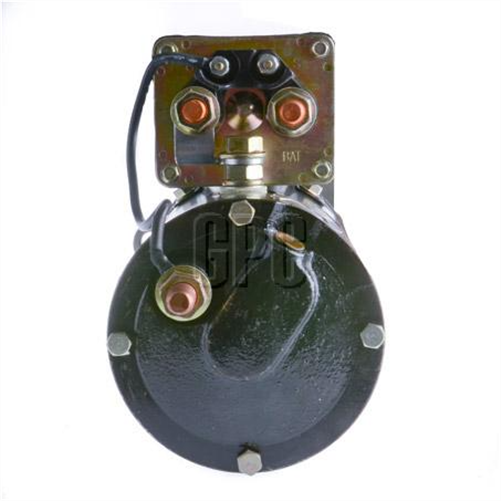

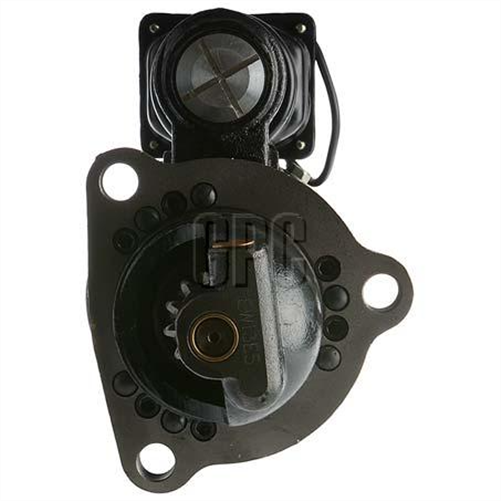

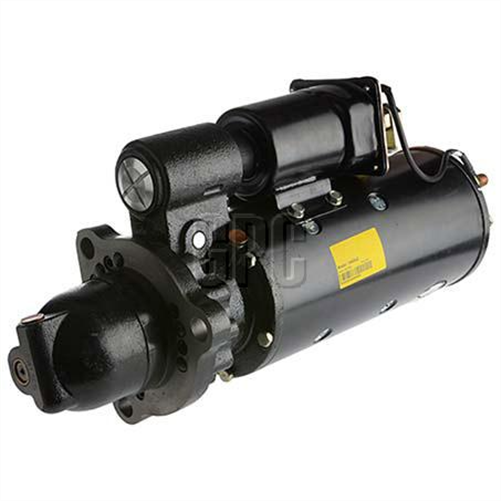

Starter Motor 24V 12Th CW Delco 40MT Style – DXS9145

The OEX Starter Motor DXS9145 is a heavy-duty 24V, 12-tooth clockwise (CW) starter motor built in a Delco 40MT-style configuration. Designed for industrial and off-highway diesel applications, it delivers strong cranking torque, reliable engagement, and consistent starting performance in demanding operating conditions.

Manufactured to OE specifications using durable, high-quality components, this starter is engineered for long service life and dependable performance in harsh environments such as construction, mining, and heavy transport.

Key Features

* High torque industrial output – strong cranking performance for large diesel engines
* 24V heavy-duty system design – ideal for industrial and off-highway equipment
* Delco 40MT style OE replacement – accurate fitment and compatibility
* 12-tooth pinion gear – smooth and reliable engagement
* Clockwise (CW) rotation – correct operational direction
* Heavy-duty construction for harsh operating environments
* Wet or dry clutch compatible
* Brand new unit – not remanufactured
* One year warranty

Specifications

* Part Number: DXS9145
* Voltage: 24V
* Series: 40MT
* Number of Teeth: 12
* Rotation: Clockwise (CW)
* Suits Unit Make: Delco
* Starter Mount Type: 3 Hole
* Flange Diameter: Approx. 89mm
* Mount Centres A: Approx. 127mm
* Mount Hole Diameter: Approx. 11mm
* Pinion Diameter: Approx. 32mm
* Overall Length: Approx. 330–340mm
* Clutch Type: Wet or Dry
* Unit Type: New

Vehicle Applications

Commonly fitted to:

* Industrial diesel engines using Delco 40MT systems
* Construction and earthmoving equipment
* Mining and heavy-duty machinery applications
* Generators and off-highway diesel power units
* Various commercial equipment requiring 24V 40MT starters

(Always confirm compatibility using part number DXS9145 or OE reference before purchase.)

Performance & Reliability

The DXS9145 starter motor is engineered for dependable heavy-duty cranking performance, delivering reliable engine starts under load. Its Delco 40MT architecture ensures strong engagement, reduced wear, and stable operation in demanding industrial environments.
